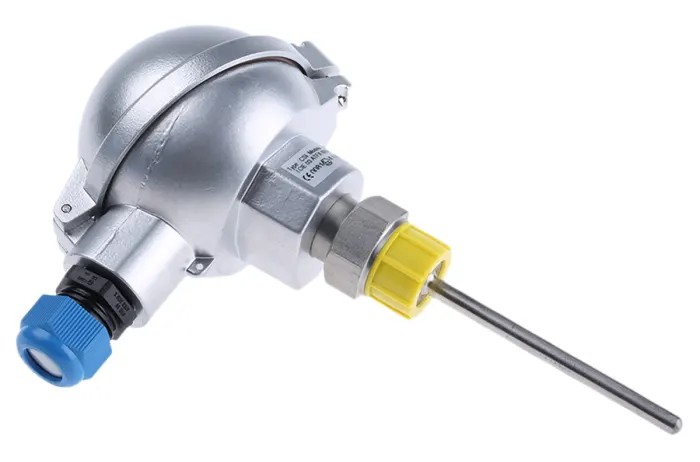

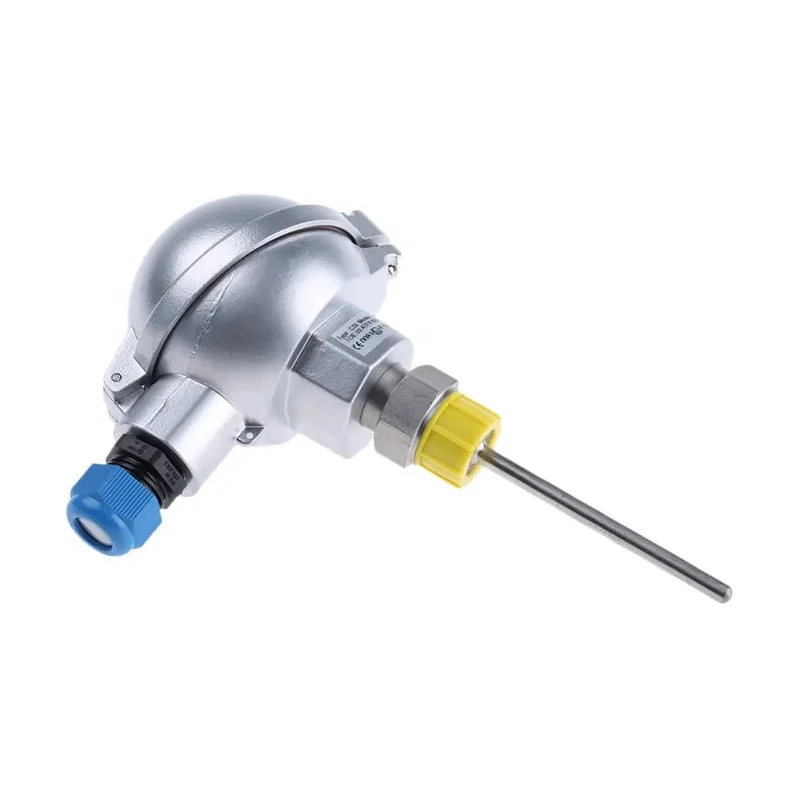

Correge PT100 RTD Sensor 6 mm Diameter, 100 mm Length, 3 Wire, Class A Accuracy, 500 °C Max, ATEX Certified PT100
Specifications
| Country of Origin | France |
|---|---|
| Accuracy | Class A |
| Brand | Correge |
| Model | PT100 |
| Probe Material | 316L Stainless Steel |
| Sensor Type | PT100 |
| Probe length | 100mm |
| Probe Diameter | 6mm |
| Termination Type | Connection Head |
| Cable Entry Size | M20 |
| Hazardous Area Certification | ATEX |
| Maximum Temperature Sensed | 500°C |
| Minimum Temperature Sensed | -40°C |
| Number of Wires | 3 |
| Correge PT100 RTD Sensor 6 mm Dia, 100 mm Long, 3 Wire, Class B 400 °C maxBrand | Correge |
Key Features
- Constructed with 316L stainless steel probe for robust corrosion resistance.
- Accurate temperature sensing from -40°C to 500°C maximum using Class A specifications.
- Equipped with a connection head termination and M20 cable entry for reliable installation.
- Features intrinsic safety and designed for industrial environments requiring ATEX certification.
- Protected with hard-packed magnesium oxide insulation ensuring performance stability.
- Suitable for industrial temperature measurement and control applications.
- Probe is gas welded stainless steel with Type A DAN connection head and BLS terminal block.
- Provides dependable sensing with three wire configuration for precision readings.
Product Description
Correge PT100 RTD Sensor PT100 model is a temperature sensor with a 6 mm diameter and 100 mm probe length, designed to measure temperature accurately up to 500 °C with Class A accuracy according to IEC751 standards. The sensor features a 3-wire configuration, optimized for intrinsic safety to comply with ATEX hazardous area certification.
The probe is constructed from high-grade 316L stainless steel with hard-packed MgO insulation, offering excellent corrosion resistance and durability for industrial applications including automation, process control, and electrical instrumentation. It terminates with a connection head and includes an M20 cable gland for secure wiring.
The sensor's stainless steel connection is a 1/2 inch cylindrical gas weld under the head for mechanical integrity. Class A accuracy ensures reliable temperature measurement critical for laboratory, manufacturing, and automation systems.
This sensor excels in demanding environments needing certified explosion protection, such as chemical processing plants or hazardous locations requiring ATEX compliance. 316L stainless steel probe for corrosion resistance.
Class A accuracy (-40°C to 500°C) for precise temperature control. 3-wire termination and Type A DAN connection head. ATEX certification for hazardous area safety compliance. Hard-packed magnesium oxide insulation for durability and accuracy.
Stainless steel connection with gas welded construction. M20 cable gland and BLS terminal block for secure wiring. Ideal for industrial and laboratory automation applications.
The Correge PT100 RTD Sensor PT100 model is a premium choice for industrial temperature measurement requiring stringent safety and accuracy standards. Its robust construction and certifications make it suitable for a wide range of electrical, automation, and control gear applications. Explore more sensors and related equipment in the Electronics & Electricals Sensors category at EnvMart to complement your instrumentation needs.
