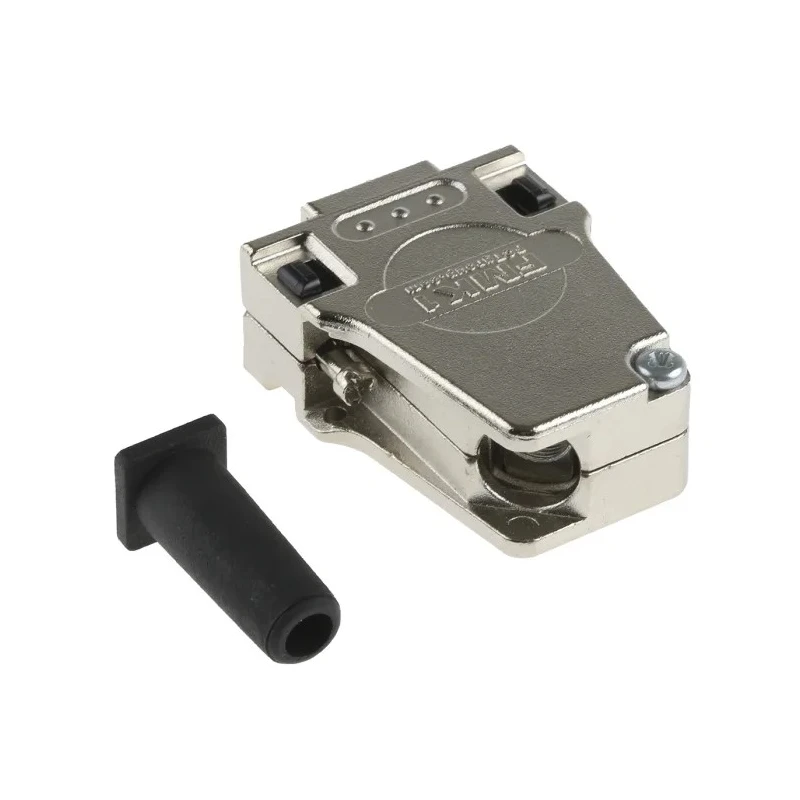

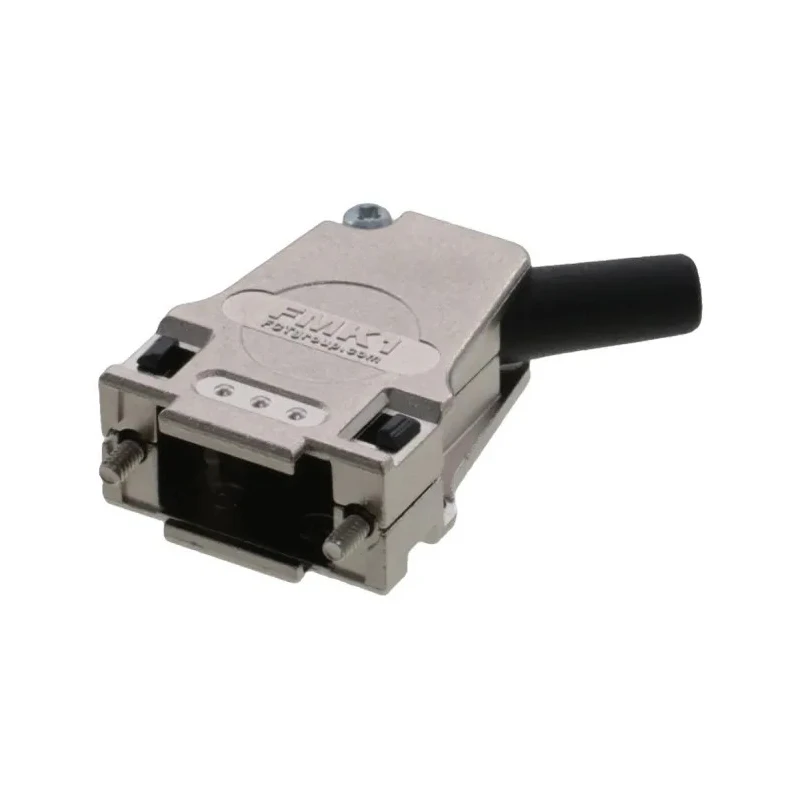

RS PRO FMK Series Die Cast Zinc Angled D-Sub Backshell 9 Way Strain Relief FMK1 / 1727040095
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Colour | Silver |
| Orientation | Angled |
| Model | FMK1 / 1727040095 |
| Housing Material | Die Cast Zinc |
| Series | FMK |
| Number of Contacts | 9 |
| Connector Type D | D-Sub Backshell |
| D-Sub Shell Size | E |
| Housing Plating | Nickel |
| TE Connectivity ADK Series Zinc Angled D-Sub Backshell, 9 Way Strain ReliefBrand | TE Connectivity |
| RS PRO Die Cast Zinc Angled D-Sub Connector Backshell, 9 WayRS Stock No. | 730-222Brand: RS PRO |
| RS PRO Die Cast Zinc Angled D-Sub Connector Backshell, 9 WayBrand | RS PRO |
| FMKx | Angled |
| FMKxG | Straight |
| FMKxx-K201 | Large Cable Outlet |
| FMKx-4881 | Dual Cable Outlet |
Key Features
- Constructed with durable die-cast zinc housing for wear resistance.
- Nickel plating offers rust and corrosion protection for extended use.
- Angled cable outlet suits tight or awkward installation spaces.
- Includes rubber bushing providing insulated cable passage for electrical safety.
- Catch-spring system and pre-mounted locking screws enable easy and secure assembly.
- Strain relief design prevents cable damage and maintains signal integrity.
- Extended inner chamber accommodates D-Sub connectors with special contact types.
- Ideal for use in surveillance, security, aviation, telecommunications, and networking systems.
Product Description
FCT from Molex FMK1 / 1727040095 is a 9 Way Die Cast Zinc Angled D-Sub Backshell designed to protect D-subminiature connectors by providing a robust metal hood that ensures a secure fit between cable and connector.
The die-cast zinc housing delivers durability and resistance to wear, further enhanced by a nickel plating that offers superior rust and corrosion resistance for dependable long-term operation.
The backshell features an angled cable outlet specifically designed for installation in confined or awkward spaces, improving usability in diverse environments. It includes a rubber bushing that creates an insulated entry point for cables, enhancing electrical safety and reducing risk of damage.
Assembly is simplified through a catch-spring system and pre-mounted locking screws, offering secure and reliable installation without requiring additional tools. This FCT from Molex backshell also incorporates strain relief to prevent cable cracking and bending, thereby maintaining robust signal transmission quality.
The unit's extended inner chamber can accommodate D-sub connectors with special contacts, contributing to versatility across applications. Durable die-cast zinc housing with nickel plating for corrosion resistance. Angled outlet optimised for compact installation spaces.
Rubber bushing enhances electrical insulation of cable entry. Easy assembly with catch-spring system and locking screws. Strain relief mechanism protects cable integrity. Extended internal chamber supports diverse D-sub connectors.
Used widely in security, surveillance, commercial aviation, and telecommunication equipment. This product is manufactured in Germany and complies with industry standards, meeting demanding performance and reliability requirements.
Explore additional FCT from Molex FMK series D-Sub Backshells for further options suitable for specialized cable management and connector protection needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The housing of this D-Sub backshell is constructed from die-cast zinc, providing durability and wear resistance.
It features nickel plating, which offers rust and corrosion protection for extended use.
The cable outlet is angled, making it suitable for tight or awkward installation spaces.
This D-Sub backshell supports 9 contacts.
The D-Sub shell size for this model is E.
It includes a rubber bushing that provides insulated cable passage for electrical safety.
Assembly is made easy through a catch-spring system and pre-mounted locking screws, allowing for secure installation without additional tools.
The strain relief design prevents cable damage and maintains signal integrity during use.
It is commonly used in surveillance, security, aviation, telecommunications, and networking systems.
This product is manufactured in Germany.
The model number of this D-Sub backshell is FMK1 / 1727040095.
The extended inner chamber accommodates D-Sub connectors with special contact types, enhancing versatility across applications.
