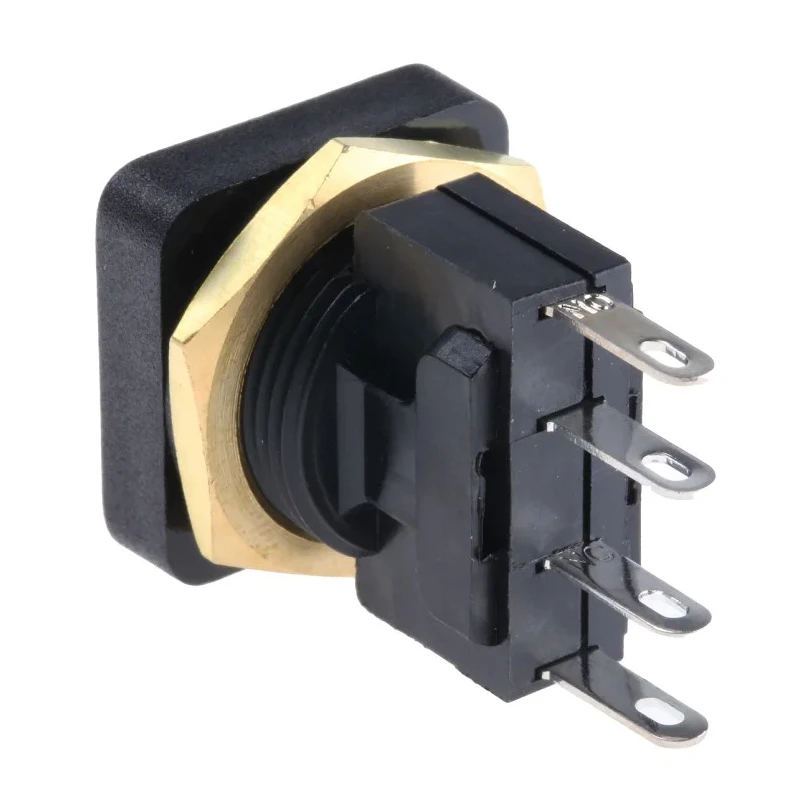

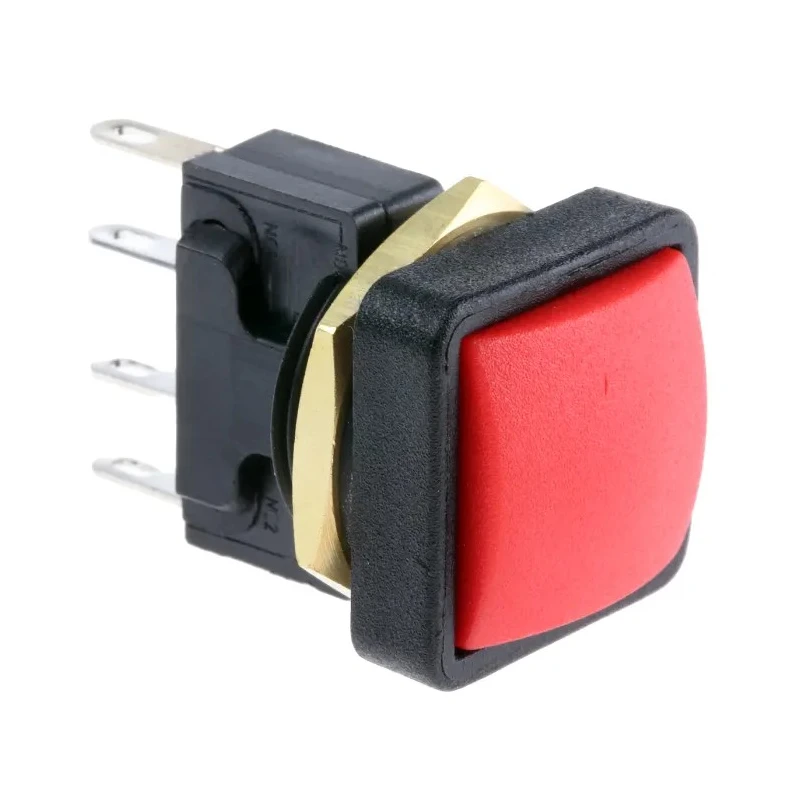

ITW Switches 49-59 Series Panel Mount Momentary Push Button Switch, SPDT, Red Actuator, Red and Green LED, IP67, 16 49-59222

The ITW Switches 49-59222 is a versatile panel mount momentary push button switch featuring a SPDT (Single Pole Double Throw) contact configuration. It is designed for demanding industrial and automation applications where robust performance and reliable operation are essential. The square red actuator provides a distinct user interface with red and green LED status indicators enhancing visibility.

This switch is engineered to fit through a 16 mm panel cutout with a maximum panel thickness of 1.5 mm. The panel sealed design meets the IP67 ingress protection rating, guaranteeing resistance to dust and water, making it highly suitable for harsh environments such as manufacturing plants, control panels, and outdoor equipment.

The electrical rating includes a contact voltage of 250 V AC and a contact current of 10 amps, supporting high current applications. The terminals are configured for soldering, ensuring secure and durable connections. The switch operates reliably within a temperature range of -35°C to 85°C, accommodating diverse industrial conditions.

The 49-59 series pushbutton switches incorporate rear-mounted microswitches that snap into place easily after actuator assembly facilitating maintenance and installation. Its UL94 V-0 rated body and button materials add to the safety and durability of the unit. The form Z contact arrangement offers both normally open and normally closed contacts, providing flexible control options.

Certifications including UL and CSA approvals underline the product's compliance with global quality and safety standards. This switch is manufactured in Belize and is commonly used in control panels, automation systems, construction equipment, and other electrical installations requiring reliable momentary switching functions.

The actuator is square with a red colour providing clear visibility. Equipped with red and green LED indicators for status signalling. Designed for a 16 mm panel cutout thickness up to 1.5 mm. Rated for 250 V AC and 10 amp contact current suitable for industrial applications.

Panel sealed to IP67 ensuring protection against dust and water ingress. Suitable for operating temperatures between -35°C and 85°C. Contact configuration is Form Z with one normally open and one normally closed contact.

Mount type is panel with solder terminal connections for secure wiring. Complies with UL and CSA approvals for safety and reliability. Manufactured in Belize ensuring international standards quality.

This product belongs to the ITW Switches 49-59 Series Push Button Switch range, recognized for high-quality and reliable electrical components in industrial and automation sectors. Browse the Electronics & Electricals category on EnvMart for more switches and related components.
