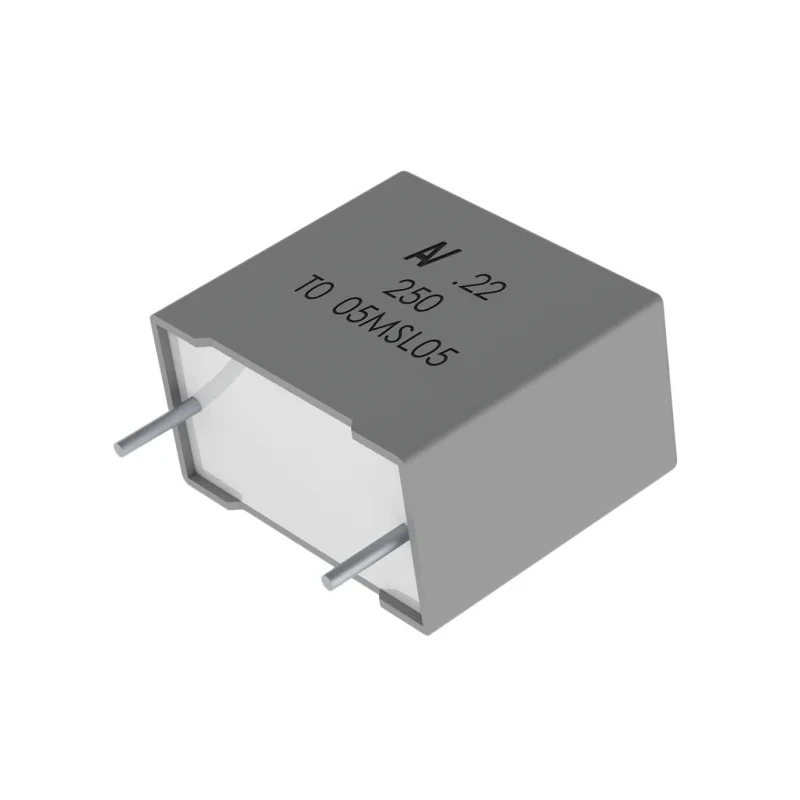

KEMET R60 Film Capacitor, ±5 % Tolerance, 330 nF Capacitance, 100 V DC, 63 V AC, Through Hole Mount R60EF3330AA6AJ
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 0.001 μF - 150.0 μF |
| Voltage Range | 50 to 1000 V dc |
| Brand | KEMET |
| Height | 9mm |
| Length | 13mm |
| Model | R60EF3330AA6AJ |
| Packaging | Bulk |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | R60 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 330nF |
| Minimum Operating Temperature | -55°C |
| Climatic category | 55/105/56 |
| Dissipation Factor | 1% |
| Lead Length | 25mm |
| Pin Count | 2 |
| Rated AC Voltage | 63V ac |
| Rated DC Voltage | 100V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 10.0 to 37.5 mm |
Key Features
- Capacitance of 330 nanofarads ensures precise performance in circuits.
- Through hole mounting type provides strong physical and electrical connection on PCBs.
- Operating temperature ranges from -55°C to 105°C for reliable usage in diverse environments.
- Lead pitch of 10 mm and lead length of 25 mm ensures compatibility with standard board layouts.
- Compact size with dimensions 13 mm length, 9 mm height, and 4 mm width optimizes PCB space.
- Dissipation factor of 1% minimizes energy loss and increases efficiency.
- Self-extinguishing plastic case with thermosetting resin meets UL 94V-0 fire safety standards.
- Extensive voltage range supported by R60 series from 50 V to 1000 V DC enhances versatility.
Product Description
KEMET R60EF3330AA6AJ Film Capacitor is a high-quality polyester film capacitor designed for precision electronic applications, featuring a capacitance of 330 nF with ±5% tolerance and rated at 100 V DC and 63 V AC voltages. It utilizes through hole mounting for robust PCB integration.
This capacitor operates reliably within a temperature range from -55°C to 105°C and features a lead pitch of 10 mm with lead length of 25 mm. The compact dimensions of 13 mm length, 9 mm height, and 4 mm width make it suitable for space-conscious electronic designs.
The R60 series capacitors are equipped with a self-extinguishing solvent-resistant plastic casing that meets UL 94V-0 requirements, ensuring durability and fire safety. With a dissipation factor of 1%, this capacitor reduces energy losses and enhances circuit efficiency.
The product is ideal for blocking, coupling, decoupling, bypassing, and interference suppression applications in low voltage environments such as automotive electronics. Its robust design and electrical characteristics make it well-suited for industrial, automotive, and electronic manufacturing uses.
330 nF capacitance with ±5% tolerance. Rated for 100 V DC and 63 V AC voltages. Through hole mount type with 10 mm lead pitch. Operating temperature from -55°C to 105°C. Dimensions: 13 mm length, 9 mm height, 4 mm width.
Self-extinguishing plastic case complying with UL 94V-0. Dissipation factor of 1% for efficient performance. Suitable for coupling, bypassing, and interference suppression. Ideal for automotive and low voltage applications.
This KEMET film capacitor is a trusted component for electronic designs demanding reliability and precise capacitance performance. Browse our extensive catalog for other Electronic Components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 330 nF with a tolerance of ±5%.
It is rated for 100 V DC and 63 V AC voltages.
The operating temperature range is from -55°C to 105°C.
This unit has dimensions of 13 mm in length, 9 mm in height, and 4 mm in width.
It utilizes a through hole mounting type for robust PCB integration.
The lead pitch is 10 mm and the lead length is 25 mm.
The dissipation factor is 1%, which helps minimize energy loss.
It features a self-extinguishing plastic case made from thermosetting resin that meets UL 94V-0 fire safety standards.
It is suitable for blocking, coupling, decoupling, bypassing, and interference suppression in low voltage environments, including automotive electronics.
The climatic category is 55/105/56, indicating its reliability under various environmental conditions.
This capacitor has a pin count of 2.
The KEMET R60 Film Capacitor is manufactured in India.
