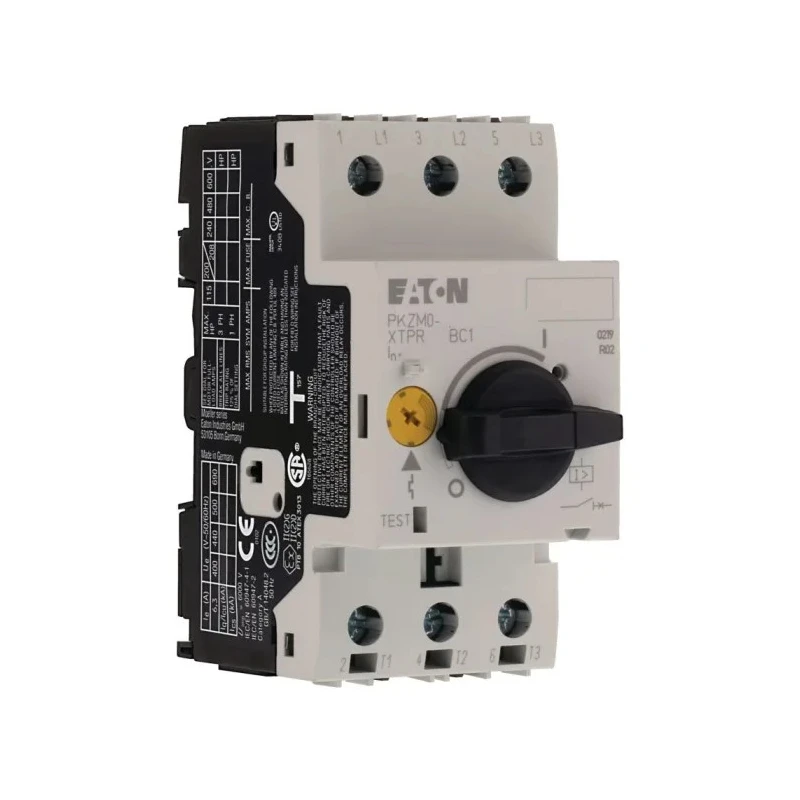

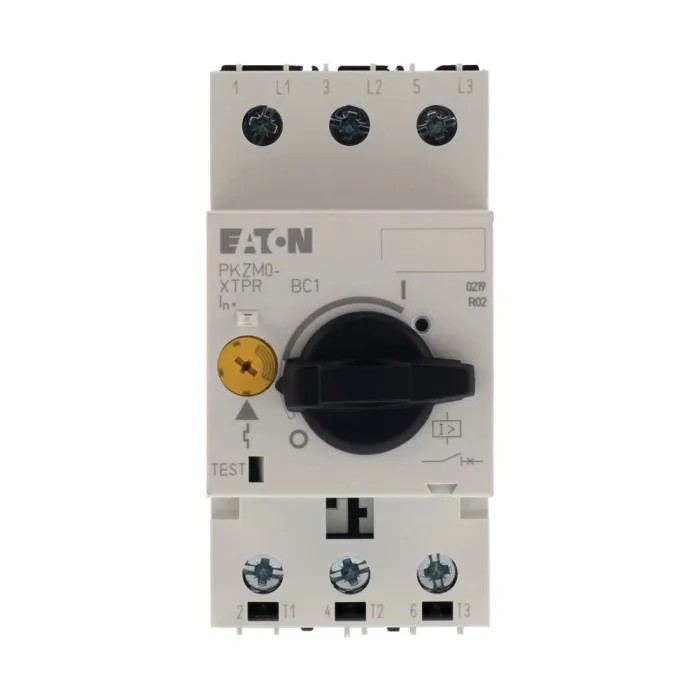

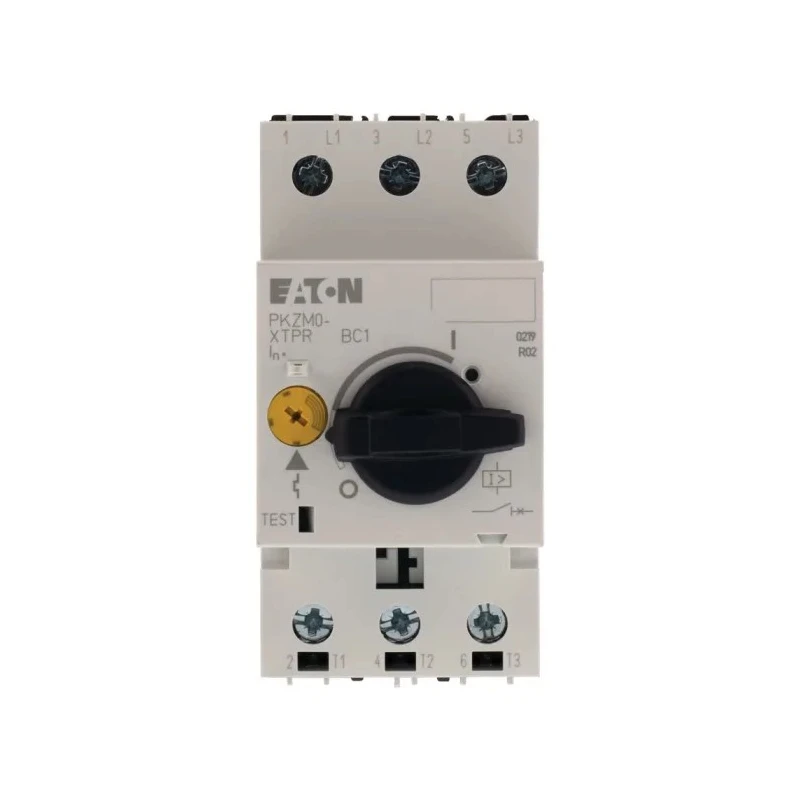

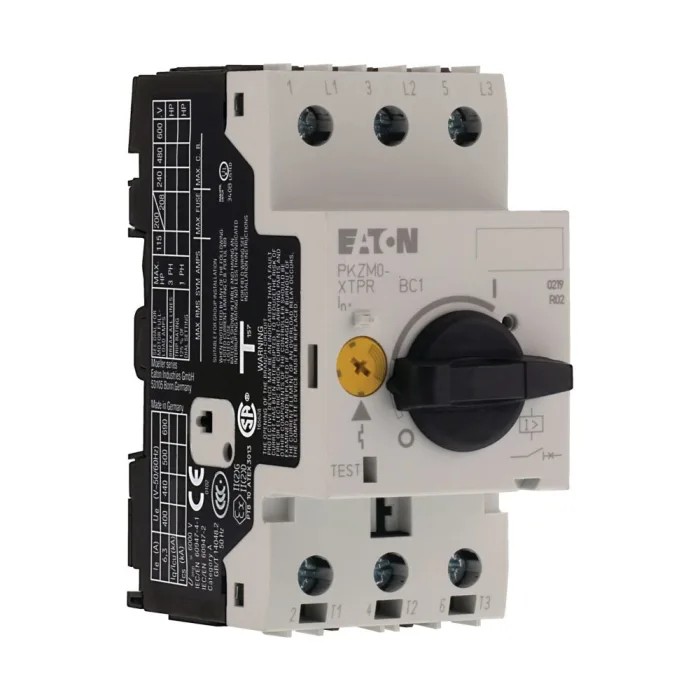

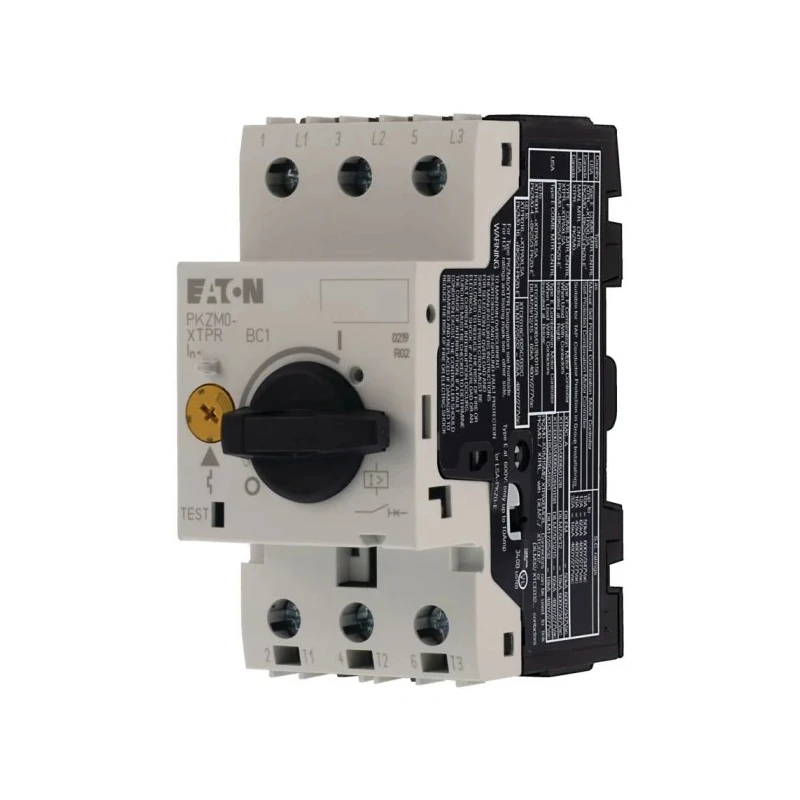

Eaton Motor Protection Circuit Breaker PKZM 0 Series 160mA, 250mA, 690V AC, 3 Poles, Current Transformer 072731 PKZM0-0,25
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 072731 PKZM0-0,25 |
| IP Rating | IP00, IP20 |
| Overall Length | 93mm |
| Current Rating | 160, 250mA |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Sensing type | Current Transformer |
| Supply Voltage | 690V ac |
| Number of Poles | 3 |
| Overall Depth | 76mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| WEG 250mA MPW40 Motor Protection Circuit Breaker, 690V, 55 °C, -20 °CBrand | WEG |
Key Features
- High breaking capacity of 150 kA ensures robust circuit protection.
- Phase-failure sensitivity improves motor operational reliability.
- Compact design allows easy mounting on IEC/EN 60715 top-hat rails.
- Operates efficiently within temperature range from -25°C to 55°C.
- Equipped with screw terminals for secure and stable electrical connections.
- Compliant with standards VDE 0660 Part 102, RoHS, IEC/EN 60947-4-1.
- Designed for industrial and automation system applications.
- Suitable for control panels and group installations in commercial settings.
Product Description
Eaton 072731 PKZM0-0,25 Motor Protection Circuit Breaker is a high-performance device designed to safeguard electrical circuits in industrial environments by protecting three-phase motors against overloads and short circuits. It features a current rating range of 160mA to 250mA and supports a supply voltage of 690V AC. The breaker comes with a current transformer sensing mechanism that enhances the detection of faults.
The compact and robust design allows for straightforward installation on IEC/EN 60715 top-hat rails, making it suitable for use in varied industrial control panels and automation systems. It performs reliably within a temperature spectrum of -25°C to 55°C, ensuring versatility in different environmental conditions.
This Motor Protection Circuit Breaker is constructed with screw terminals to provide secure wiring connections. It holds compliance to important standards including VDE 0660 Part 102, RoHS, and IEC/EN 60947-4-1, underscoring its quality and safety. With an effective breaking capacity of 150 kA, it delivers excellent protection and phase-failure sensitivity, contributing to enhanced operational safety and longevity of motors classified under efficiency class IE3.
Ideal for industrial, manufacturing, automation, and commercial applications, this PKZM 0 series breaker is suited for complex group installations and offers reliable safeguarding for critical motor equipment. Its electrical lifespan is rated at 100,000 operations, affirming its durability in demanding settings.
High breaking capacity of 150 kA for effective performance. Phase-failure sensitivity enhances motor protection reliability. Compact size enables installation on top-hat DIN rails. Wide operating temperature range from -25°C to 55°C.
Screw terminal connections ensure secure electrical contact. Complies with VDE, RoHS, IEC/EN standards for safety and quality. Electrical lifespan rated for 100,000 operations. Suitable for use in industrial and commercial motor protection setups.
Explore our comprehensive range of motor protection solutions at EnvMart for enhanced operational safety and efficiency across industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating range of this model is 160mA to 250mA.
It supports a maximum supply voltage of 690V AC.
This unit is equipped with 3 poles.
It has a high breaking capacity of 150 kA.
It operates efficiently within a temperature range from -25°C to 55°C.
It features a current transformer sensing mechanism for enhanced fault detection.
The overall dimensions are 93mm in length, 45mm in width, and 76mm in depth.
It is equipped with screw terminals for secure and stable electrical connections.
Yes, it complies with VDE 0660 Part 102, RoHS, and IEC/EN 60947-4-1 standards.
The electrical lifespan is rated for 100,000 operations.
The country of origin for this unit is Germany.
It is designed for industrial and automation system applications, including control panels and group installations in commercial settings.
