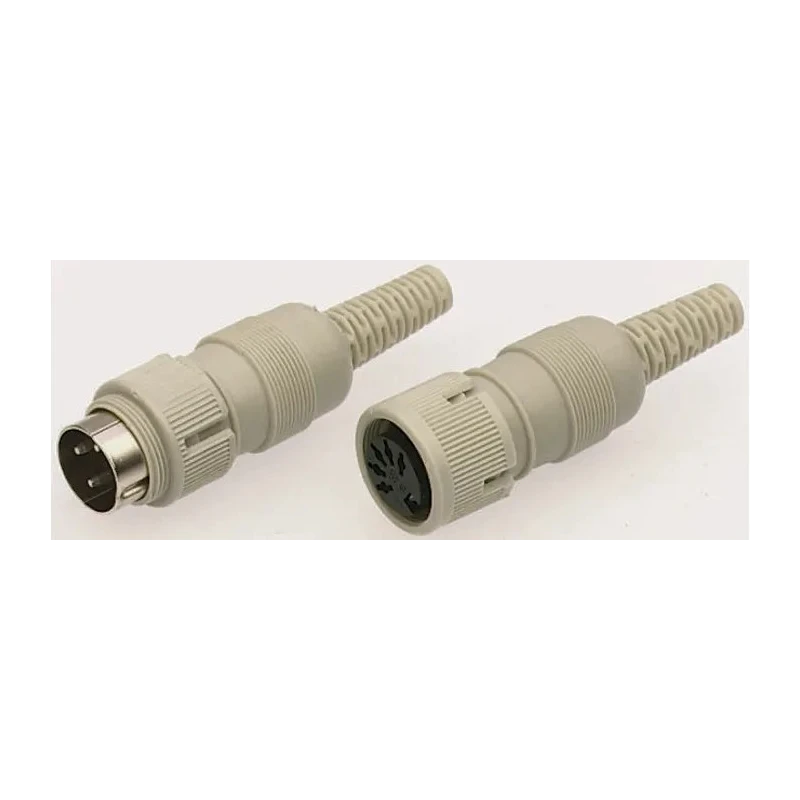

Hirschmann MAK 8 Pole Straight Standard DIN Socket, DIN 41524, 4A, 34 V AC/DC, IP30, Cable Female 930538517 MAK 8100 S

Free Delivery in India | Lowest Global Shipping Charges

Hirschmann MAK 8 Pole Straight Standard DIN Socket, DIN 41524, 4A, 34 V AC/DC, IP30, Cable Female 930538517 MAK 8100 S

Name: Hirschmann MAK 8 Pole Straight Standard DIN Socket, DIN 41524, 4A, 34 V AC/DC, IP30, Cable Female 930538517 MAK 8100 S
Brand: Hirschmann
SKU: 180563
Price: 12.69 USD
Availability: InStock



Category DIN Connectors Brand Hirschmann Condition New

Specifications

Country of Origin	Germany
Voltage	34, 34V ac
Brand	Hirschmann
Orientation	Straight
Current	4A
Model	930538517 MAK 8100 S
IP Rating	IP30
Mount Type	Cable
Housing Material	Polyethylene
Contact Material	Brass
Series	MAK
Termination Type	Solder
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Shield Type	Shielded
Pole Format	8
Contact Plating	Tin
Number of Contacts	8
Contact Gender	Female
Connector Gender	Female
Connector Size	Standard
DIN Number	DIN 41524

Key Features

Designed with a polyethylene housing for impact and abrasion resistance.
Equipped with tin-plated brass contacts to ensure corrosion resistance and long-term reliability.
Features a cable mount type with shielded, female connector orientation for secure connections.
Operates efficiently across a temperature range from -20°C to +60°C.
Meets DIN 41524 standard ensuring compatibility and quality.
Provides IP30 protection rating suited for indoor industrial environments.
Includes an integrated locking screw to prevent accidental disconnections.
Termination is performed via solder joints facilitating reliable cable connection.

Product Description

Hirschmann 930538517 MAK 8100 S 8 Pole Straight Standard DIN Socket complies with DIN 41524 and is engineered for stable low voltage power transmission up to 34 volts AC/DC at 4 amps. Its durable polyethylene housing offers resistance against mechanical impact and abrasion, making it ideal for demanding industrial and commercial settings.

This female cable connector features shielded contacts crafted from tin-plated brass for enhanced corrosion resistance and longevity. It supports cable-mount installation and a straight orientation facilitating straightforward integration into various electronic assemblies.

Operating within a temperature span of -20°C to +60°C, this DIN socket is suited for use in environments with moderate temperature fluctuations. The IP30 ingress protection rating assures protection against solid objects larger than 2.5 mm, typical for indoor use in commercial workstations and office buildings.

An integrated locking screw mechanism ensures a secure and reliable connection, preventing accidental disconnections under operational vibrations or movements. The termination type is suitable for soldering, allowing technicians an effective and durable cable attachment method.

Durable polyethylene housing for impact and abrasion resistance. Tinned brass contacts provide corrosion resistance. Cable mount type with shielded female straight connector. Operational between -20°C and +60°C temperature range.

IP30 rated for protection against solid objects. Integrated locking screw for secure connection. Termination through solder joints for strong cable fixation.

This Hirschmann MAK series DIN socket is widely used in industrial control, commercial workstation setups, and office environments requiring reliable multi-contact circular connectors. It ensures effective cable interfacing in electronic components and power transmission applications.

Explore more precision connectors and DIN socket products available within the Hirschmann range on EnvMart to meet your industrial connector requirements.
