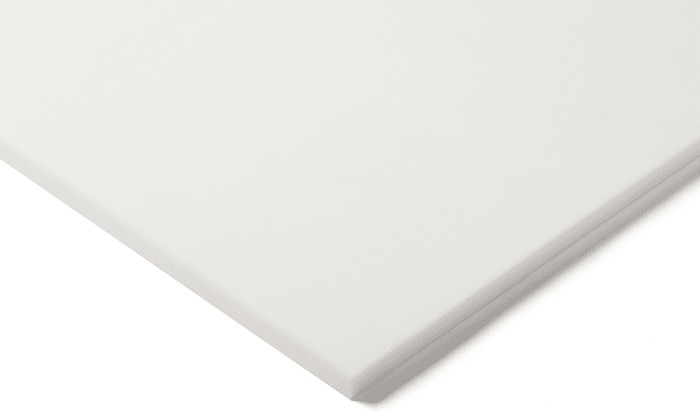

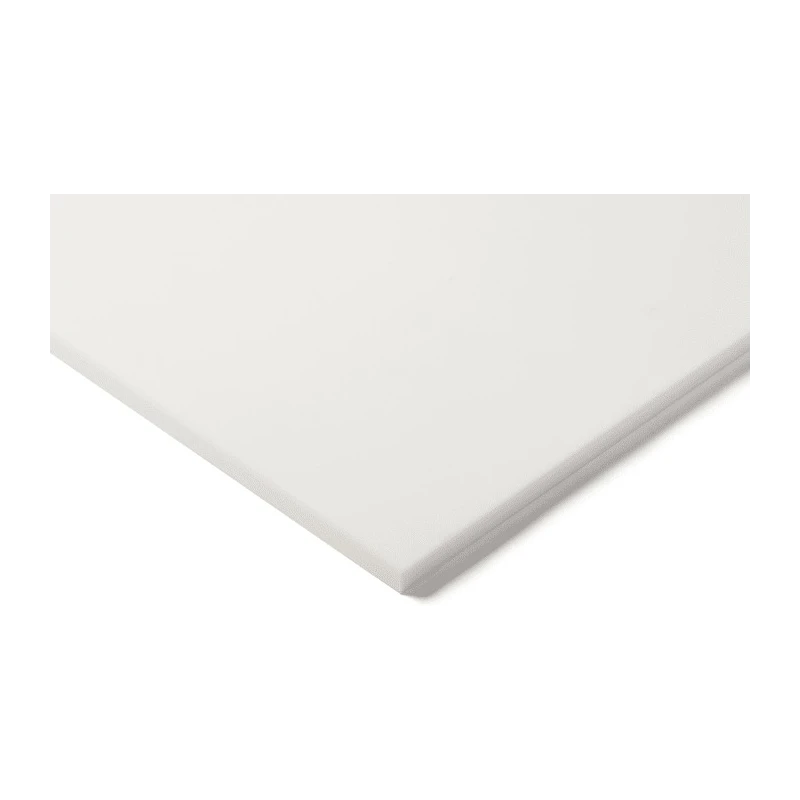

RS PRO White Polytetrafluoroethylene Plastic Sheet 600 mm x 300 mm x 16 mm 752-666

RS PRO 752-666 White Polytetrafluoroethylene Plastic Sheet measures 600 mm by 300 mm with a thickness of 16 mm and is manufactured from polytetrafluoroethylene (PTFE), a high-performance semi-crystalline thermoplastic renowned for its exceptional chemical resistance, thermal stability, and excellent sliding properties. This product is designed for industrial, manufacturing, laboratory, and engineering applications where durability and resistance to harsh environments are critical.

PTFE is recognized for its low coefficient of friction which reduces wear and tear on components, making it ideal for applications requiring sliding surfaces with minimal heat generation and maintenance. The sheet offers a tensile strength of 25 MPa and a density of 2.21 g/cm³, ensuring sufficient mechanical stability while retaining flexibility. Its UL 94 V-0 flammability rating adds safety credentials, making it reliable for use in sensitive environments.

The sheet maintains dimensional stability and performance up to a maximum operating temperature of 260°C, withstanding thermal extremes encountered in chemical processing, electrical insulation, and food processing industries. Its non-stick surface further prevents material adhesion, facilitating ease of cleaning and long service life.

Additional advantages include excellent UV and weather resistance, low water absorption of 0.3%, and outstanding electrical insulating properties. The PTFE sheet is unsuitable for adhesive backing and originates from Italy, ensuring compliance with high manufacturing standards.

Typical industrial uses encompass fabrication of slide bearings, pump housings, valve seats, tank linings, and roller covers in transport, aerospace, electrical engineering, medical, and laser technology sectors. This sheet can be machined or cut to specific dimensions based on application requirements.

Constructed from high-performance Polytetrafluoroethylene (PTFE) material offering chemical resistance. High thermal stability with a maximum operating temperature of 260°C. Excellent sliding characteristics and low friction coefficient extend component lifespan.

UL 94 V-0 flammability rated material for enhanced safety. Non-stick surface minimizes material adhesion and cleaning effort. Low water absorption of 0.3% for durability in humid environments. Outstanding electrical insulation with low dielectric constant.

Manufactured in Italy under strict quality standards. Suitable for fabrication in industrial, laboratory, HVAC, aerospace, and food processing applications. Discover more high-quality plastic sheets and engineering materials in EnvMart’s Plastic Sheet collection.
