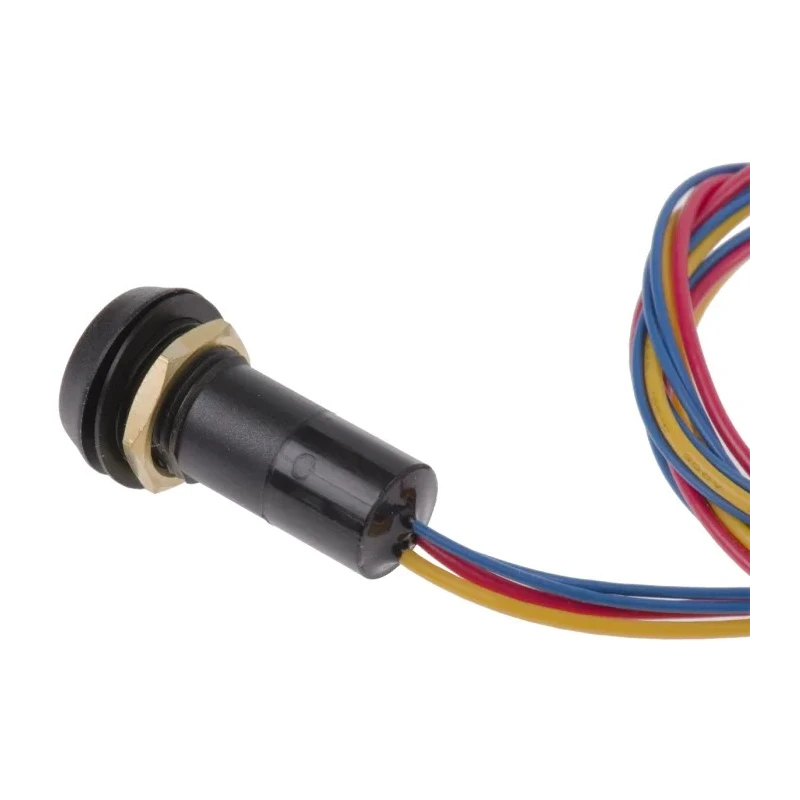

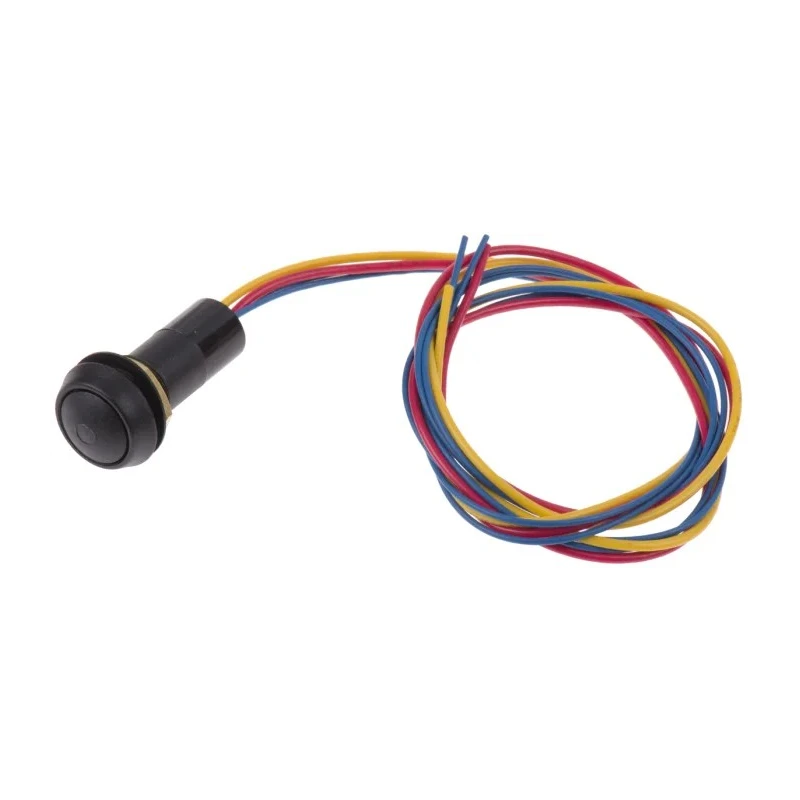

ITW Switches 59 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6 mm Cutout, SPST, Red 59-531R
Specifications
| Country of Origin | India |
|---|---|
| Brand | ITW Switches |
| Model | 59-531R |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 59 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -35°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Wire |
| Standards/Approvals | UL, CSA |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 125V |
| Actuator Style | Button |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 125V ac |
Key Features
- The switch features a momentary SPST contact configuration for single-pole, single-throw switching.
- Illumination is provided by a red LED for clear status indication.
- Designed with a black actuator button and panel mount with a 13.6 mm cutout size.
- Panel sealed with an IP67 rating, ensuring protection against dust and temporary immersion.
- Operational temperature range spans from -35°C to 85°C, suitable for harsh environments.
- Rated for 125 V AC/DC contact voltage and 400 mA contact current.
- Approved to UL and CSA standards, assuring safety and quality.
- Constructed for impact resistance with gold contacts and choices of zinc alloy or PBT body materials.
Product Description
ITW Switches 59-531R is a miniature illuminated push button switch designed for momentary operation and panel mounting with a 13.6 mm cutout. This rugged switch offers an IP67 panel sealing rating, ensuring protection against dust ingress and temporary immersion, making it ideal for demanding industrial and military applications, communications equipment, instrumentation, and mass transport controls.
The switch features a black button actuator with a red LED for clear status illumination. Its SPST contact configuration supports reliable on-off switching with a contact rating of 125 V AC/DC and a maximum current of 400 mA. The device operates reliably across a broad temperature range of -35°C to 85°C and meets UL and CSA safety standards.
Manufactured with high environmental specifications, the 59 Series switches are impact resistant and constructed with either non-sparking zinc alloy or durable polybutylene terephthalate (PBT) bodies. Gold contacts enhance performance and longevity, making this switch suitable for use in harsh environments and environmentally demanding keypad applications.
The switch is panel-sealed up to IP67, providing robust environmental protection. The illuminated red LED button provides clear operational status. Designed for rugged industrial and military use with impact resistance. Operates on 125 V AC/DC with a contact current rating of 400 mA.
Temperature range from -35°C to 85°C covers a wide range of operational environments. Complies with UL and CSA standards for safety and quality assurance. Offered with choices of high quality zinc alloy or PBT molded body materials.
Suitable for communications, instrumentation, mass transport, and harsh environmental applications.
This ITW Switches product is an excellent choice for industrial, laboratory, construction, and commercial settings requiring a miniature, momentary illuminated push button switch. Explore EnvMart's extensive range of Push Button Switches and components for additional compatible devices and accessories.
