SMC 125 mm Pneumatic Piston Rod Cylinder, Double Acting, Clevis Mount, Aluminium Alloy Body, 125 mm Stroke Length CD85

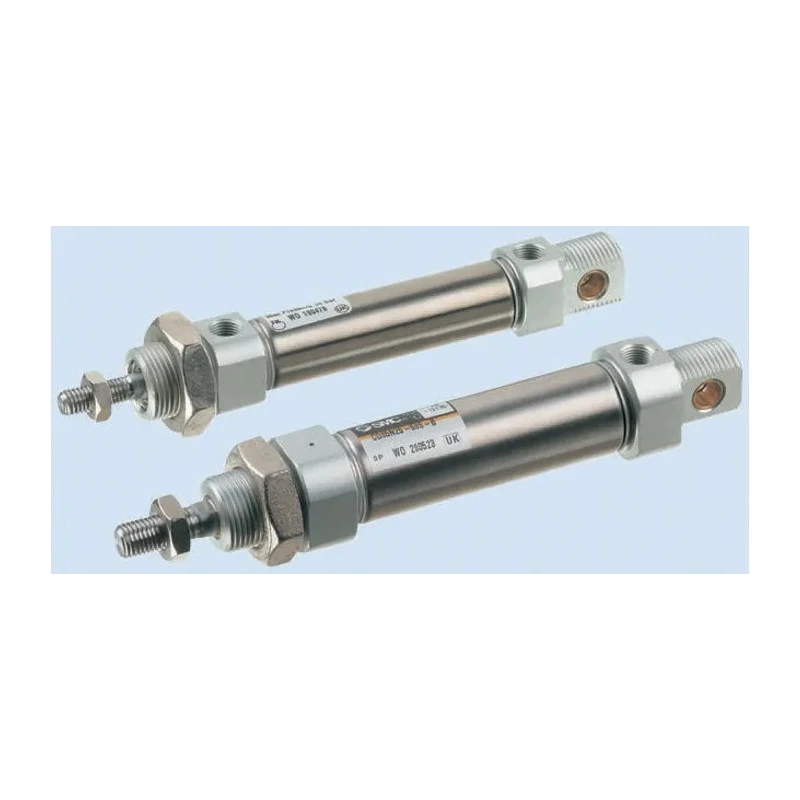

SMC CD85N20-125-B is a 125 mm stroke length pneumatic piston rod cylinder from the CD85 series, designed for double acting operation and equipped with a clevis mount. Constructed with a robust aluminium alloy body, this actuator delivers reliable, lightweight performance in automated industrial and mechanical systems.

The cylinder features integrated rubber bumper cushioning to reduce noise and mechanical stress caused by end-of-stroke impacts, enhancing durability. Its single male piston rod incorporates an M8 metric thread allowing secure attachment of peripherals and linkages.

With a maximum piston speed of 1500 mm/s, this cylinder supports fast cycle rates necessary in production and assembly lines. The compact design adheres to the ISO 6432 standard related to small-bore pneumatic cylinders, ensuring compatibility with various automation systems.

Applications for the SMC CD85N20-125-B include pick-and-place operations in manufacturing, precise valve actuation in pneumatic control panels, transfer systems requiring compact linear motion, and tooling repositioning on test rigs. The clevis mount permits pivoting connection, facilitating alignment with mating components.

Durable aluminium alloy body with lightweight construction. Rubber bumper cushioning reduces vibration and impact noise. Single male piston rod with M8 metric thread for easy coupling. Double acting operation provides controlled push and pull motion.

125 mm stroke length suitable for moderate travel requirements. Maximum piston speed of 1500 mm/s supports fast operation cycles. Standard ISO 6432 compliant for small bore pneumatic cylinders. Clevis mount for pivot-style attachment and alignment flexibility.

Operating temperature rated up to +60°C.

This Pneumatic Piston Rod Cylinder is an essential component in industrial automation, laboratory equipment, manufacturing lines, and HVAC systems requiring precise controlled linear motion. It enables reliable actuation in compact spaces and varying operating conditions.
