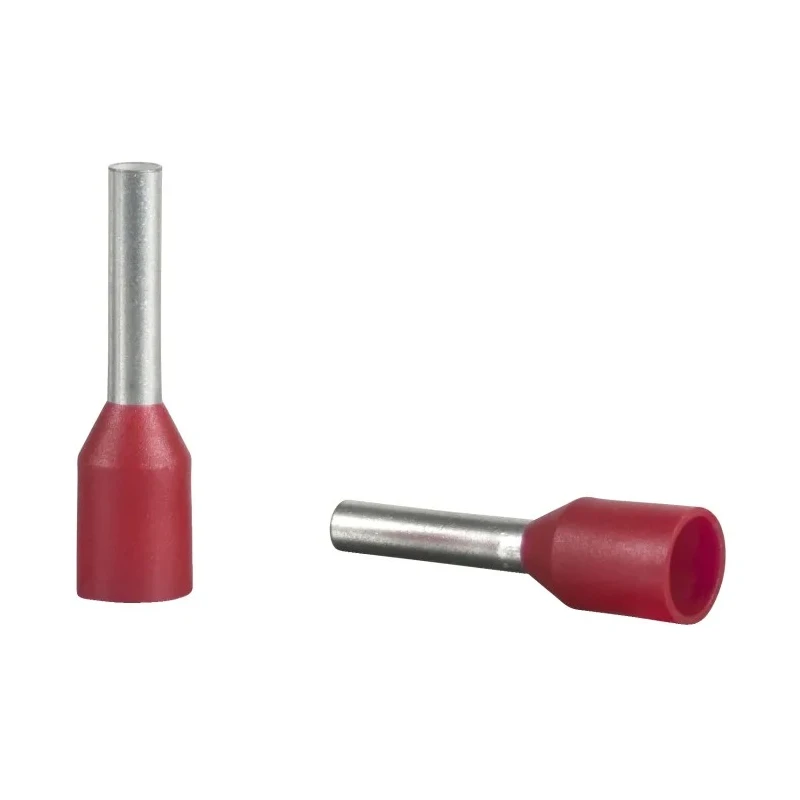

Schneider Electric Linergy DZ5 Insulated Crimp Bootlace Ferrule 1.6mm Pin Diameter 8.2mm Pin Length Red DZ5CE010

Schneider Electric DZ5CE010 Linergy DZ5 insulated crimp bootlace ferrule features a 1.6mm pin diameter and 8.2mm pin length with a 14mm overall length. This ferrule is designed to provide secure, reliable terminations for stranded wire conductors in industrial and electrical installations. The red plastic insulation collar offers clear circuit identification and safe handling. The copper tube terminal ensures optimal electrical conductivity and corrosion resistance.

Manufactured to meet NF C 63-023 standards, this ferrule is rated for 18 AWG (1mm²) stranded wires. The halogen-free insulation compound complies with safety standards by limiting toxic emissions in the event of fire. The compact bezel profile enables dense packing into terminal blocks, making this ferrule ideal for use in control panels, electrical distribution junction boxes, and industrial machinery wiring.

This crimp bootlace ferrule supports a wide ambient temperature range suitable for various operating environments. It facilitates improved conductor insertion and reduces strand splaying for high-quality connections. These ferrules are supplied in packaged sets, enhancing site handling and batch usage tracking.

Applications include terminating stranded cables in automation panels, junction box wiring in control cabinets, service and maintenance of industrial equipment wiring, and field wiring of sensor and low-voltage components. While the ferrules do not include integrated marker tag holders, separate labelling can be applied for circuit identification purposes.

Red plastic insulation for clear circuit identification and safe handling. Copper terminal provides corrosion resistance and electrical conductivity. Compatible with 18 AWG stranded wire up to 1mm². Halogen-free insulation minimizes hazardous emissions in fires.

Compact size suitable for tight terminal block spaces. Complies with NF C 63-023 quality standards. Designed for industrial automation and electrical distribution wiring. Ideal for servicing industrial machinery wiring and sensor connections.

Wide operating temperature tolerance for diverse environments. Packaged in sets for ease of use and inventory control.
