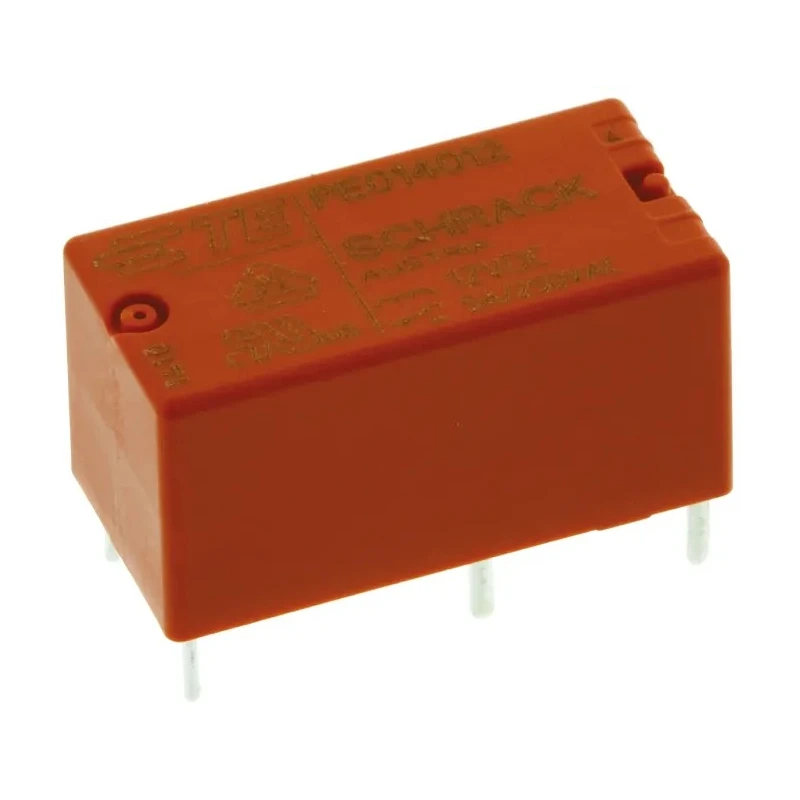

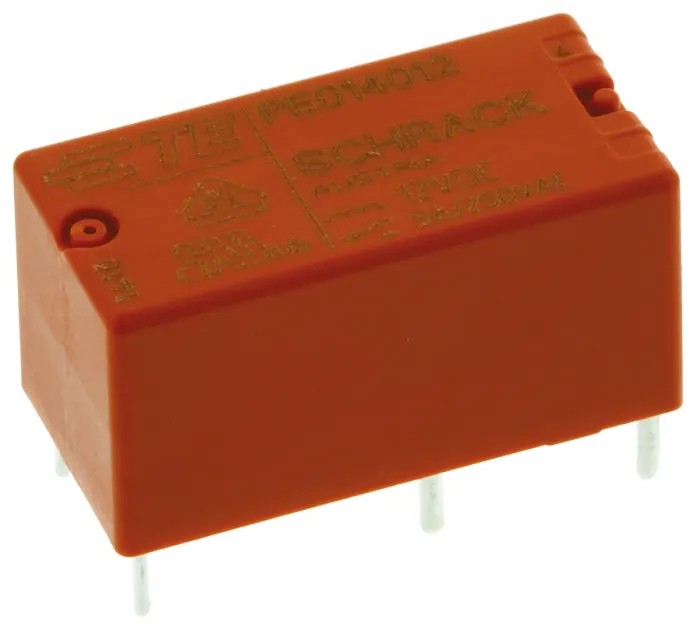

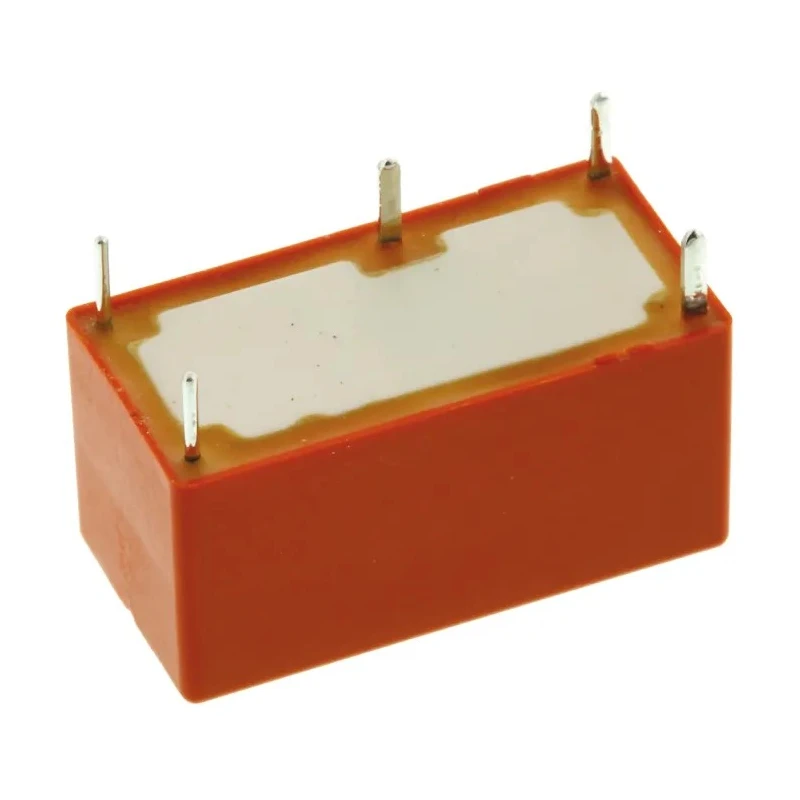

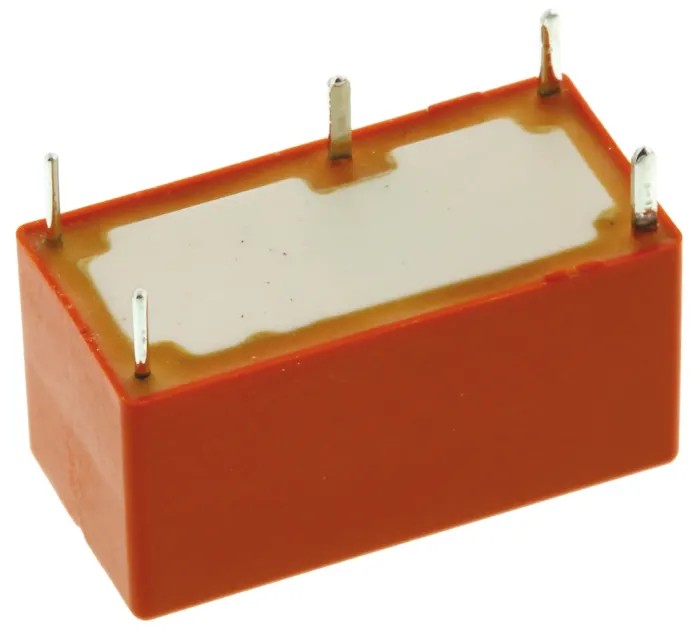

TE Connectivity PCB Power Relay 12V dc Coil 5A Switching Current SPDT PE014012
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Model | PE014012 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | VDE, cULus |
| Coil Resistance | 685Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 210mW |
| High Coil sensitivity | 200mW |
Key Features
- Coil operates at 12 volts direct current.
- Single Pole Double Throw (SPDT) contact configuration ensures versatile switching capabilities.
- Designed for PCB mounting with solder terminal type.
- High switching power of 1.3 kVA suitable for control and automation applications.
- Operational temperature range from -40°C to 85°C.
- Silver Nickel Alloy contacts enhance conductivity and durability.
- Coil resistance of 685 ohms with coil power consumption of 210 mW.
- Complies with industry standards VDE and cULus certifications.
Product Description
TE Connectivity PE014012 PCB Power Relay is a reliable power relay designed for printed circuit board integration. It features a 12V dc coil voltage with a switching current capacity of 5 amperes, making it suitable for various electrical and electronic control systems. The SPDT (Single Pole Double Throw) contact configuration allows for flexible circuit applications.

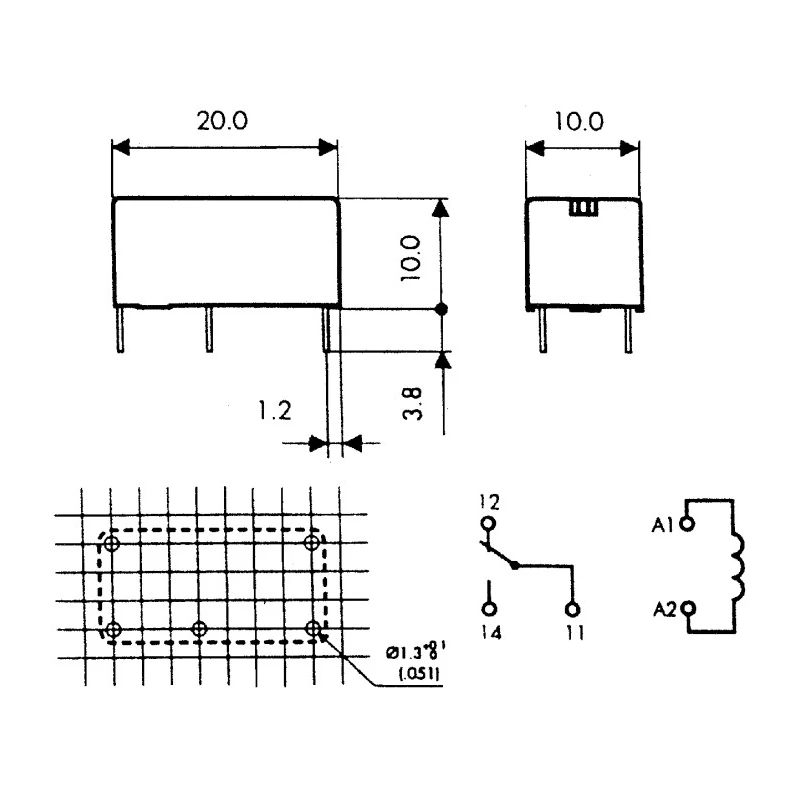

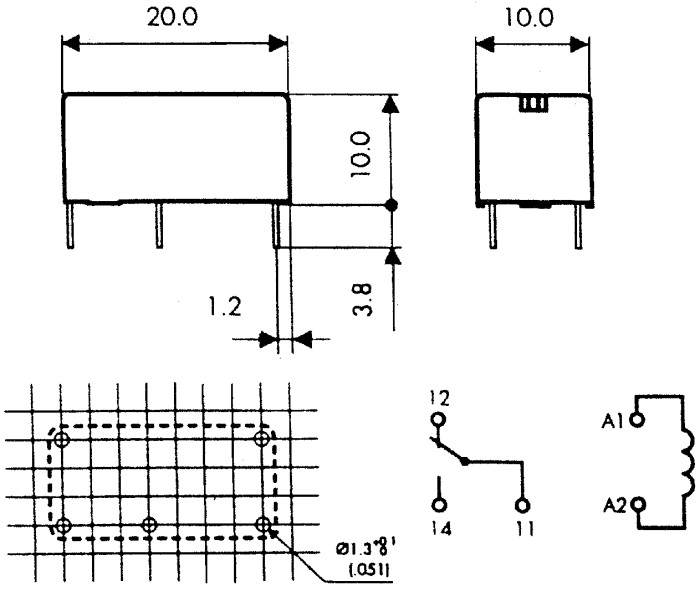

This relay's compact size, with dimensions of 20mm length, 10mm width, and 10mm height, enables it to fit in tight spaces on PCBs. The solder terminal type ensures secure and durable electrical connections. The coil power consumption is low at 210 mW, with a coil resistance of 685 ohms, contributing to energy efficiency in circuit designs.
The device operates within a temperature range from -40°C to +85°C, suitable for harsh environments, and features contacts made of Silver Nickel Alloy to provide excellent conductivity and long service life. Rated switching power is 1.3 kVA, and the relay supports switching AC voltage up to 400V.
Certifications including VDE and cULus confirm its compliance with stringent safety and quality standards. This relay finds applications in industrial electronics, household appliances, and control equipment, supporting reliable switching performance for automation and electronic circuit control.
Coil voltage: 12 V dc for consistent actuation power. SPDT contact offers multiple circuit switching options. Designed for PCB mounting with solder terminals. Supports switching current of 5 A and switching power of 1.3 kVA.
High sensitivity coil rated at 200 mW. Operating temperature range ensures functionality in various environments. Silver Nickel Alloy contacts resist wear and corrosion. Dimensions compact for space-limited designs. VDE and cULus approved for industrial and consumer safety.
Explore the extensive range of Power Relays and electrical components available at EnvMart for your industrial and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC, ensuring consistent actuation power.
This model has a switching current capacity of 5 amperes, making it suitable for various control applications.
The relay measures 20mm in length, 10mm in width, and 10mm in height, allowing it to fit in compact spaces on PCBs.
It features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching capabilities.
The rated switching power of this relay is 1.3 kVA, suitable for control and automation applications.
This relay operates effectively within a temperature range of -40°C to +85°C, making it suitable for harsh environments.
The contacts are made of Silver Nickel Alloy, which enhances conductivity and durability.
It is designed with solder terminals, ensuring secure and durable electrical connections.
This model complies with industry standards and holds VDE and cULus certifications, confirming its safety and quality.
The coil resistance is 685 ohms, contributing to its energy efficiency in circuit designs.
It supports switching AC voltage up to 400V, making it suitable for various electrical applications.
The relay is suitable for industrial electronics, household appliances, and control equipment, supporting reliable switching performance.
