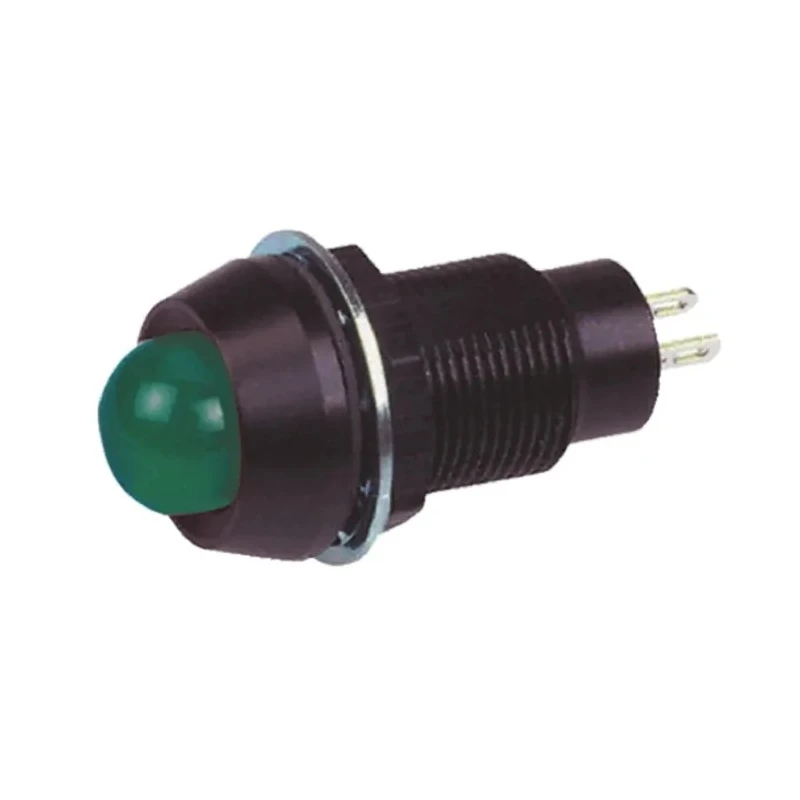

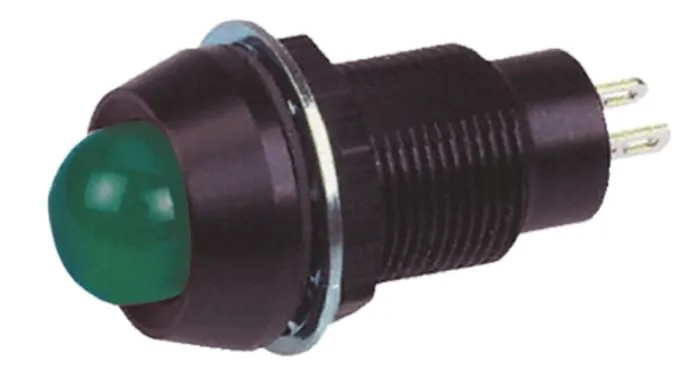

Marl Panel Mount LED Indicator Green, 12.7 mm Mount Hole, IP67, Solder Tab Termination, 24V DC, 20mA 651-114-22

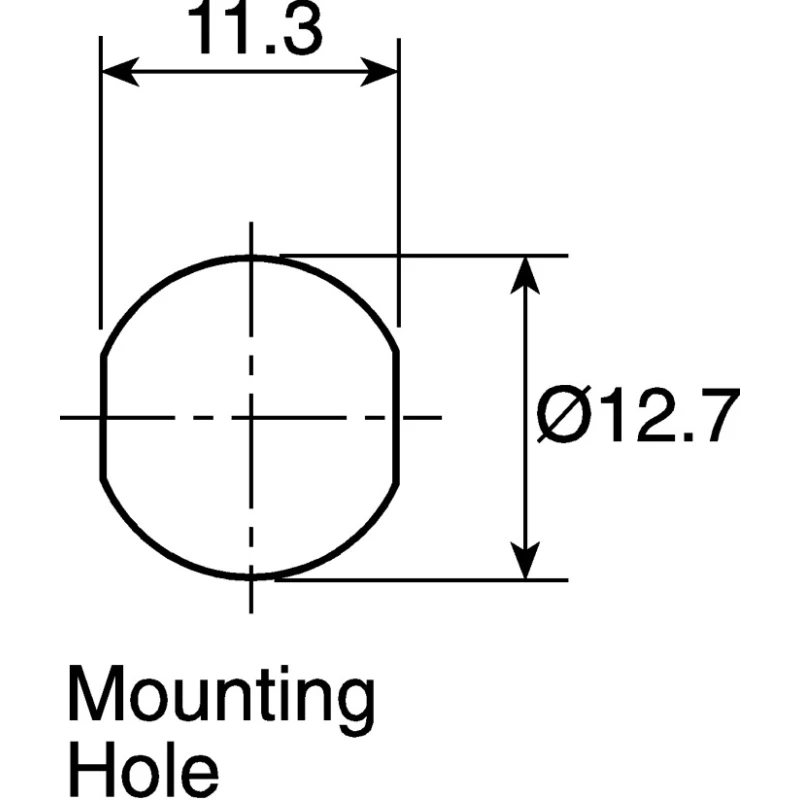

Marl 651-114-22 Panel Mount LED Indicator Green is engineered for robust industrial, electronic component, and power connector applications. Featuring a 12.7 mm mount hole size, the indicator is suitable for various control panels and displays that require reliable visual signaling.

The LED indicator operates at 24V DC and draws a maximum forward current of 20mA. Its bright green, 10 mm domed diffused lens provides a wide viewing angle for clear visibility under diverse lighting conditions. The black anodised aluminium bezel not only enhances aesthetic appeal but also offers corrosion resistance and mechanical strength.

Designed to withstand harsh environments, this unit boasts an IP67 rating providing full protection against dust ingress and immersion in water up to defined depths. The device also features a fully internally potted body construction, delivering excellent shock and vibration resistance to maintain performance in industrial settings.

Terminations are via sturdy solder tab terminals measuring 0.11 inches (2.8 x 0.5 mm), simplifying installation and ensuring secure electrical connections. The mounting body design avoids rotation post-installation, enhancing user confidence and panel integrity. Included accessories such as a sealing washer, fixing nut, and lock washer provide a complete kit for effective panel mounting.

With a life expectancy of approximately 90,000 hours, this indicator guarantees long-term reliability. It complies with RoHS standards for environmental safety and BS EN ISO 9001:2000 quality management, reflecting its premium manufacturing standards. Originating from the United Kingdom, it assures quality and performance consistent with Marl’s trusted brand heritage.

The device supports 24V DC voltage with a maximum forward current of 20mA. It features a green 10mm diffused domed lens with wide viewing angle. Termination is via 0.11in (2.8 x 0.5mm) solder tab terminals for easy mounting.

Constructed with a black anodised aluminium bezel and fully internally potted for durability. Offers shock and vibration resistance with a life expectancy of approximately 90000 hours. The body is designed to prevent rotation once mounted.

Includes sealing washer, fixing nut, and lock washer for secure panel installation. Manufactured to comply with RoHS and BS EN ISO 9001:2000 standards.

Ideal for electrical panels, industrial instrumentation, manufacturing control systems, and HVAC equipment, this Panel Mount LED Indicator is a dependable choice for signal monitoring and status indication in demanding environments. Browse the EnvMart catalogue for more quality electronics components and panel indicators from trusted brands.
