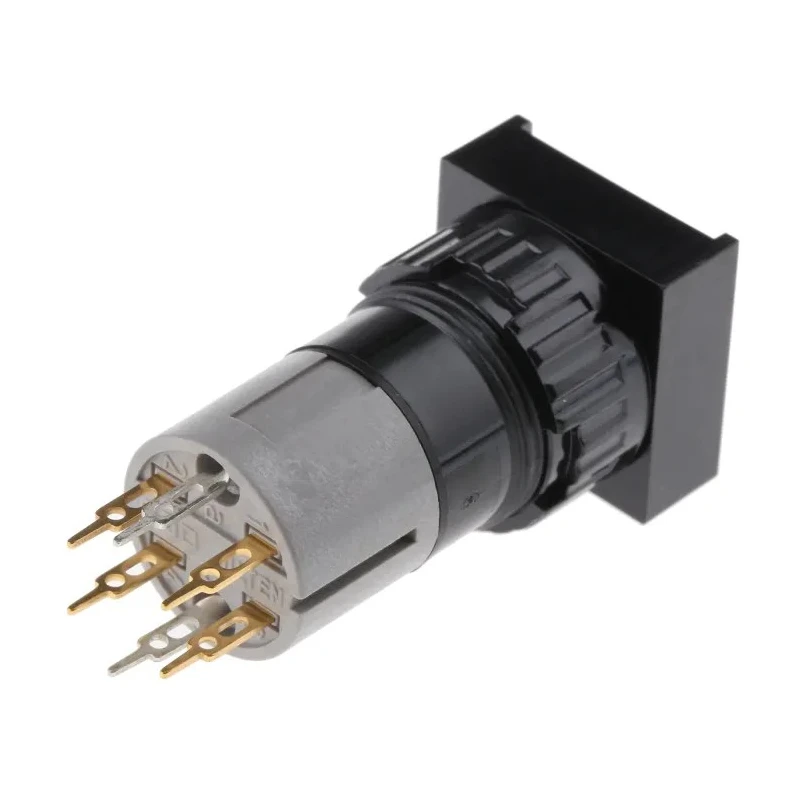

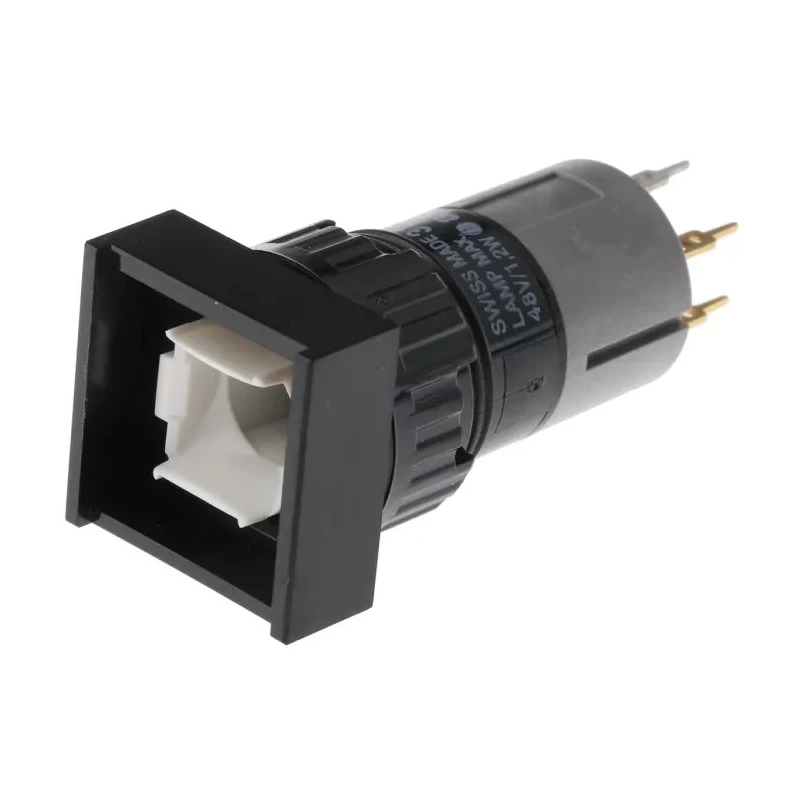

EAO Illuminated Push Button Switch, Button Actuator, RoHS Compliant, Panel Mount 16mm Cutout, Switzerland Origin 31-483.036

EAO 31-483.036 Illuminated Push Button Switch is designed as a versatile component for use in Human Machine Interface (HMI) panel mounting within industrial environments. This switch is suitable for applications including process control, machinery, instrumentation, and panel building requiring reliable manual input control.

The product features a button-type actuator with options in round (18mm diameter), square (18×18mm), or rectangular (18×24mm) bezels. It accommodates panel thicknesses from 1.5mm to 6mm, necessitating a 16mm panel cutout for installation. The switch's snap action element utilizes a self-cleaning, double-break mechanism with solder terminals to provide rapid, reliable switching performance.

Illumination options include a T1 ¾ midget groove filament lamp or a single chip LED, operating within 6V to 48V, with external series resistor required above 48V supply. The low level switching element supports electronic circuits with current ranges from 10μA at 100μV up to 100mA at 42Vac/dc, suited for low-power signalling. The housing and actuator are made from self-extinguishing materials complying with Class II standards, ensuring safety and durability.

The switch exhibits electrical strength of 2500Vac at 50Hz for one minute between all terminals and earth, conforming to IEC 60512-2-11. Its robust construction ensures long operational life, short rebound time, and stable contact resistance critical for dependable performance in industrial environments.

Various configurations are offered such as snap action or low level elements, momentary or maintained switching, and normally open or normally closed contacts. Accessories like lenses, filament lamps, LEDs, and toolkits are available separately to complement the switch assembly.

Designed for 16mm panel cutouts supporting 1.5 to 6mm thick panels. Available in round, square, and rectangular bezel options. Snap action or low level switching elements with momentary or maintained actions. Illumination via T1 ¾ midget filament lamp or single chip LED.

Self-cleaning, double-break snap action system. Self-extinguishing housing material compliant with Class II. Electrical strength 2500Vac 50Hz for 1 minute between terminals and earth. Suitable for industrial and instrumentation applications including process control and panel building.
