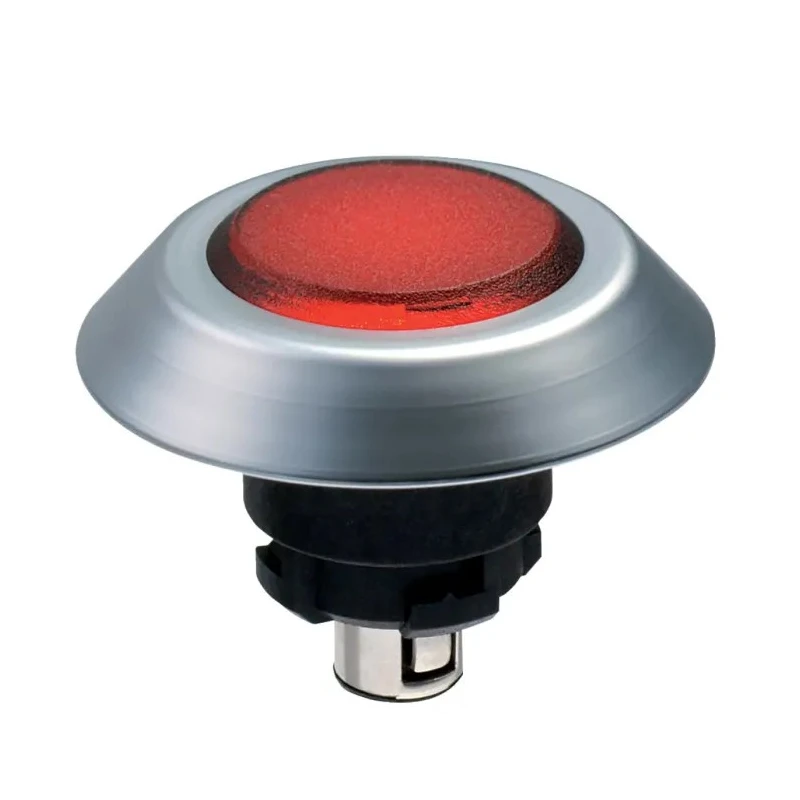

Schmersal Red Momentary Push Button Switch 22.3 mm Cutout IP67 IP69K 101174522
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schmersal |
| IP Rating | IP67, IP69K |
| Protection Class | IP67, IP69K |
| Ambient temperature range | -25°C to +80°C |
| Series | NMLRT |
| Cutout Diameter | 22.3mm |
| Push Button Actuation | Momentary |
| Push Button Material | Plastic |
| Push Button Colour | Red |
| Push Button Shape | Round |
| Push Button Marking | Unmarked |
| Push Button Diameter | 22mm |
Key Features
- Red plastic push button with a round shape and 22 mm diameter.
- Momentary actuation mechanism for reliable control signal input.
- Cutout diameter of 22.3 mm suitable for standard panel mounting.
- IP67 and IP69K rated for dust-tight and high-pressure water jet protection.
- Compliance with IEC 60947-1 and multiple EN safety standards.
- Constructed with PA (12) dome material and chrome-plated ABS front ring.
- Mounting flange type ELM for secure front plate installation.
- Operating temperature range from -25°C to +80°C for varied ambient conditions.
Product Description
Schmersal 101174522 is a high-quality red momentary push button switch designed for front plate mounting applications. It features a 22.3 mm cutout diameter and a round dome shape with a 22 mm button diameter. The push button is made from durable plastic materials, including PA (12) for the dome and chrome-plated ABS for the front ring, ensuring long service life and impact resistance.
This push button switch is rated IP67 and IP69K, providing excellent protection against dust ingress and high-pressure water jets, making it ideal for demanding industrial, manufacturing, and automation environments. It complies with important standards such as IEC 60947-1, EN 60947-5-1, EN 60947-5-4, and UL 508, assuring safety and reliability in control applications.
The device uses a momentary actuation mechanism which returns to the default position when released, suitable for signaling and control circuit inputs. The mounting flange (ELM type) secures the switch reliably to panels, and the product is unmarked to allow custom labeling.
Operating temperatures range from -25°C to +80°C, enabling usage in a variety of ambient conditions, including industrial and commercial settings. This push button switch is manufactured in Germany, reflecting quality manufacturing standards.
Red plastic push button with round shape and 22 mm diameter. 22.3 mm cutout diameter suitable for standard panel mounting. Momentary push button actuation for control signal input. IP67 and IP69K protection rating for robust environmental resistance.
Complies with multiple international safety and performance standards. Durable construction using PA (12) dome and chrome-plated ABS front ring. Mounting flange ELM ensures secure installation on front plates. Ambient operating temperature range from -25°C to +80°C.
This Schmersal push button switch is an excellent choice for industrial electrical panels, automation control systems, machinery interfaces, and other technical installations requiring a reliable, compact, and protected signaling device. Explore more Push Button Switches and electrical components at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout diameter for this push button switch is 22.3 mm, making it suitable for standard panel mounting.
This model operates within a temperature range of -25°C to +80°C, allowing for use in various ambient conditions.
The push button switch is rated IP67 and IP69K, providing protection against dust ingress and high-pressure water jets.
The push button is constructed with a PA (12) dome and a chrome-plated ABS front ring, ensuring durability and impact resistance.
It features a momentary actuation mechanism, which returns to the default position when released, suitable for signaling and control inputs.
Yes, it complies with several safety and performance standards including IEC 60947-1, EN 60947-5-1, EN 60947-5-4, and UL 508.
The push button has a round shape and is colored red, making it easily identifiable in control applications.
It features a mounting flange of type ELM, which secures the switch reliably to front plates for installation.
This push button switch is manufactured in Germany, reflecting quality manufacturing standards.
The diameter of the push button is 22 mm, which is slightly smaller than the cutout diameter.
This push button switch is suitable for industrial electrical panels, automation control systems, and machinery interfaces.
The push button is unmarked, allowing for custom labeling as needed in various applications.
