| Country of Origin | India |
|---|---|
| Voltage | 50V dc |
| Brand | Yageo |
| Height | 0.6mm |
| Length | 2mm |
| Model | CC0805JRNPO9BN681 |
| Packaging | Tape & Reel |
| Width | 1.25mm |
| Mount Type | Surface |
| Construction | Stacked |
| Series | CC |
| Termination Type | Standard |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 680pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC -60384, RoHS |
| Package/Case | 0805 |
| Dielectric | C0G |

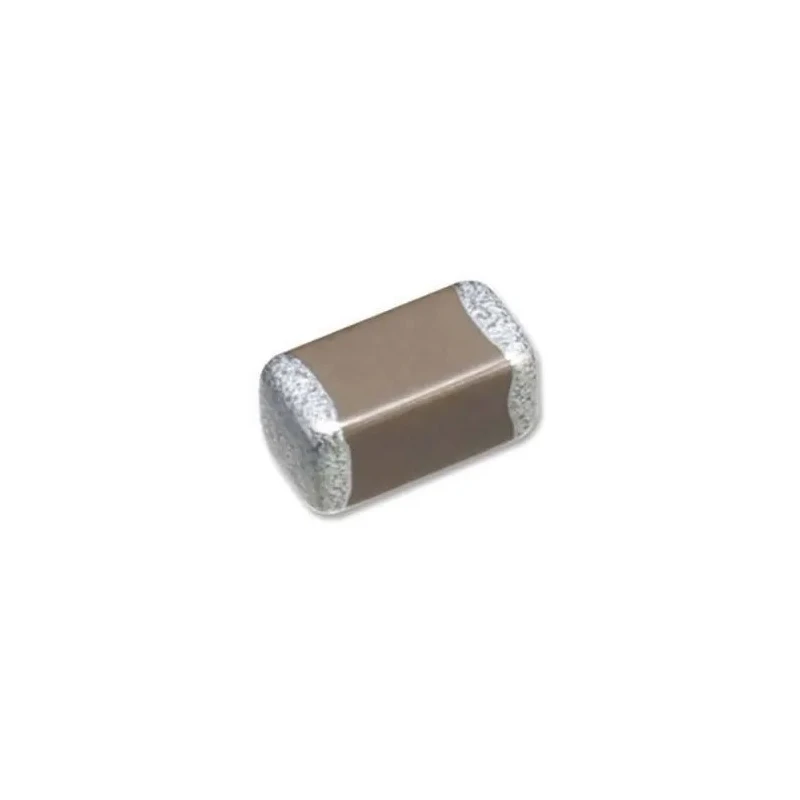

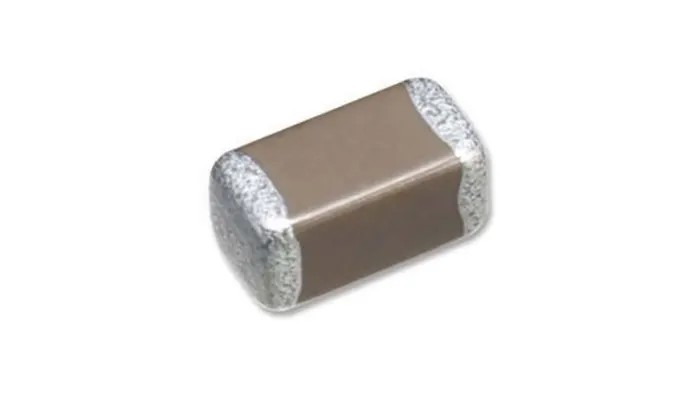

Yageo CC0805JRNPO9BN681 is a 680 pF multilayer ceramic capacitor designed for surface mount technology, rated at 50V dc with a tolerance of ±5%. The compact 0805 package measures 2mm long, 1.25mm wide, and 0.6mm in height, making it suitable for dense electronic assemblies.
This capacitor uses a stacked construction of interleaved metal electrodes with a C0G dielectric material, delivering stable capacitance values and minimal temperature drift in various industrial and commercial electronics.
The capacitor operates reliably over a wide temperature range from -55°C to 125°C and meets IEC-60384 and RoHS compliance standards, ensuring quality and safety in manufacturing.
Its surface mount termination features lead-free plated tin (NiSn), supporting environmentally friendly processes and high solderability on printed circuit boards. The component is ideal for applications in consumer electronics, communications, automotive electronics not requiring automotive-grade certification, and general purpose electronic equipment.
Capacitance value of 680 pF suitable for general electronic circuit use. Voltage rating of 50 volts direct current ensures reliable performance. Constructed with stacked multilayer ceramic dielectric for high capacitance per volume.
Package size 0805 with dimensions 2mm length, 1.25mm width, and 0.6mm height. Operating temperature range from -55°C to maximum 125°C for versatile environmental conditions. C0G dielectric provides excellent stability and low losses for precision applications.
Standard termination type is lead-free plated tin (NiSn) compatible with RoHS standards.
This Multilayer Ceramic Capacitor is an essential passive component in industrial, laboratory, manufacturing, telecommunications, and consumer electronic devices. Its compact size and robust construction support automated PCB assembly and long-term reliability.
Explore further capacitors and multilayer ceramic components on EnvMart for your electronic design and production needs.
