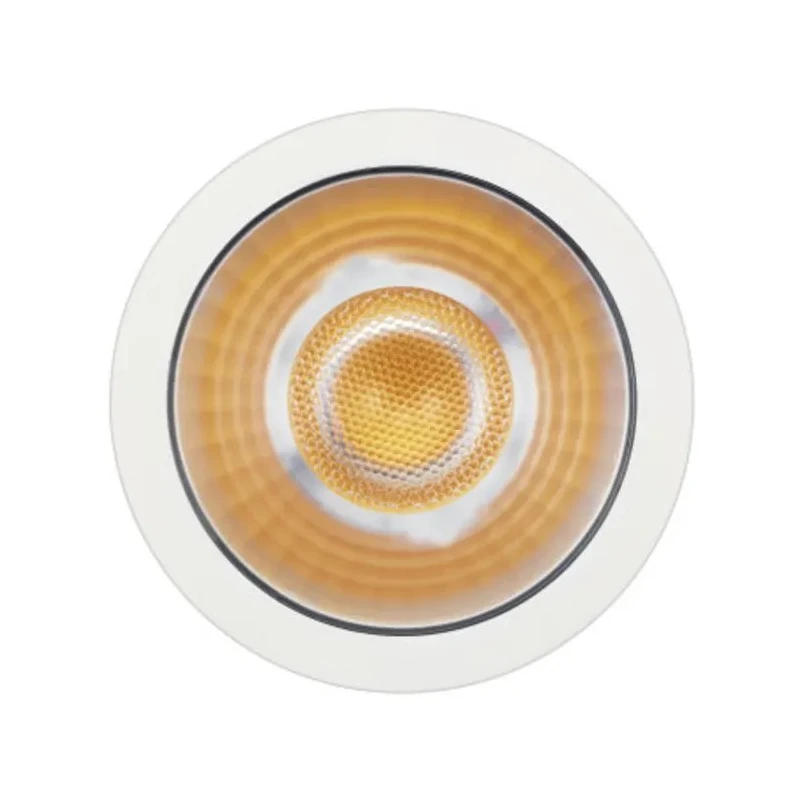

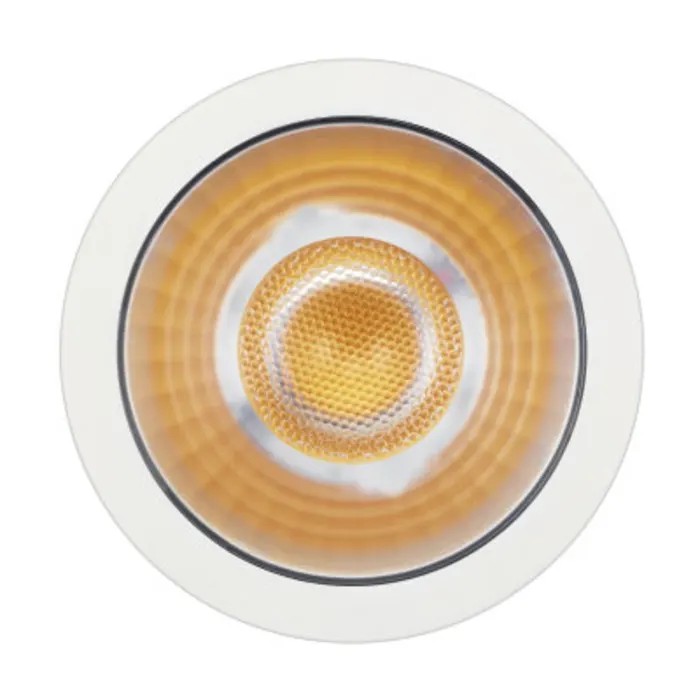

Osram 3000 K CoB LED 36.5 V, 0.35 A Forward Current, 12.4 W Power, 50 mm Diameter, 24° Viewing PL-CN50-COB-1400-930-24D-G2

Osram PL-CN50-COB-1400-930-24D-G2 is a high-output Chip on Board (CoB) LED module with integrated optics and heat sink, designed for industrial and commercial lighting applications. Operating at a nominal voltage of 36.5 V and forward current of 0.35 A, this module delivers a luminous flux of 1050 lumens with a warm 3000 K colour temperature suitable for ambient and accent lighting purposes.

This CoB LED is engineered with precise optical control to avoid multi-shadow issues and is compatible with conventional MR16 lamp fittings, providing ease of retrofit and replacement in existing lighting fixtures. The 24° beam angle offers focused illumination ideal for task lighting, retail displays, and architectural highlighting.

The module features a 50 mm diameter optical source, facilitating compact integration in lighting systems. It includes a replaceable front cover to maximize optical flexibility, allowing customization and future upgrades without full module replacement. The design complies with key international standards such as EN 55015 and IEC 62471 ensuring safety and performance reliability.

With an IP20 rating, the product is suitable for indoor environments where protection against solid objects is required but not against moisture. Although it is not designed for automotive use, it excels in laboratory, manufacturing, commercial, and residential lighting settings requiring high efficacy and consistent colour quality.

Integrated optics and heat sink optimize thermal management and optical performance. Compatible with conventional MR16 lamps simplifying installation. High luminous flux output of 1050 lm at 3000 K warm white light. Precise optical control prevents multi-shadow effects.

Replaceable front cover allows for optics flexibility and future extension. Dual mode options available: High-Output and High-Efficacy (not specified in this model). Colour consistency less than 2 SDCM for uniform light quality.

Standards approvals: EN 55015, IEC 62471, EN 61547, EN 60529, EN 62031, IEC 60598-1, and CE compliant. Nominal current 0.35 A and nominal voltage 36.5 V with 12.4 W power consumption. Manufactured in China.

This Osram LED lighting component is ideal for a range of industrial, commercial, HVAC, laboratory, and manufacturing applications demanding high-quality, reliable illumination. Explore further Osram LED Lighting Components in EnvMart for compatible products and advanced lighting solutions.
