Osram 2700 K CoB LED Module 50mm Diameter 36.5V Forward Voltage PL-CN50-COB-1400-927-24D-G2

Free Delivery in India | Lowest Global Shipping Charges

Osram 2700 K CoB LED Module 50mm Diameter 36.5V Forward Voltage PL-CN50-COB-1400-927-24D-G2

Name: Osram 2700 K CoB LED Module 50mm Diameter 36.5V Forward Voltage PL-CN50-COB-1400-927-24D-G2
Brand: Osram
SKU: 178448
Price: 38.31 USD
Availability: InStock



Category LED Lighting Components Brand Osram Condition New

Specifications

Country of Origin	China
Brand	Osram
Length	50mm
Model	PL-CN50-COB-1400-927-24D-G2
Width	50mm
Series	PL-CN50-COB- 1400-927-24D-G2
Maximum forward current	0.35A
Viewing angle	24 °
Colour Temperature	2700k
LED Colour	2700 K
Forward Voltage	36.5V
Typical Luminous Flux	1000lm
Optical Source Diameter	50mm

Key Features

Provides a typical luminous flux of 1000 lumens suitable for general lighting applications.
Operates at a maximum forward current of 0.35 amperes for efficient power consumption.
Features a compact 50mm optical source diameter with a 24° beam angle for focused illumination.
Delivers a warm white light with a colour temperature of 2700 kelvin for comfortable ambience.
Runs on a nominal voltage of 36.5 volts DC ensuring stable operation.
Complies with multiple international standards including EN 61547 and IEC 60598-1 for safety and performance.
Incorporates an integrated heat sink and optics compatible with MR16 lamp fittings.
IP20 rated, designed for indoor lighting installations with effective protection against solid particles.

Product Description

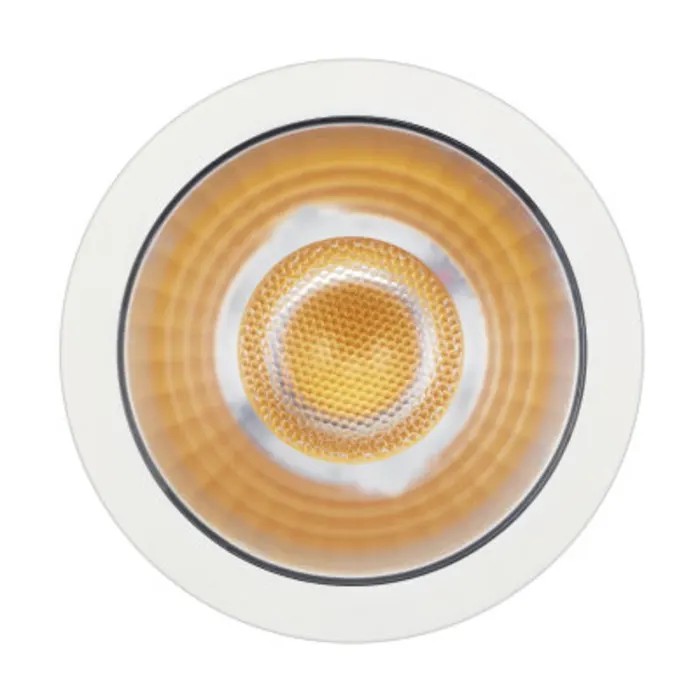

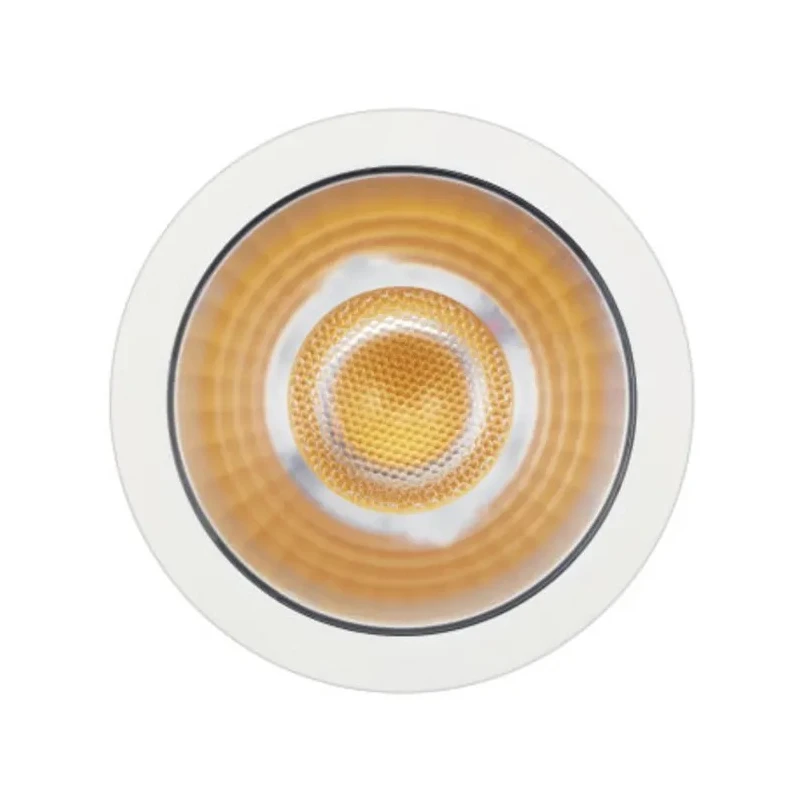

Osram PL-CN50-COB-1400-927-24D-G2 is a state-of-the-art 2700 K Chip on Board LED module featuring integrated optics and heat sink technology. It is designed for various indoor lighting applications, offering precise optical control and eliminating multi-shadow effects for superior lighting quality. The module is compatible with conventional MR16 lamps, enabling easy retrofit installations.

With a typical luminous flux of 1000 lumens and a nominal forward current of 0.35 A, this module balances high flux output with energy efficiency. The optical source diameter is 50mm and it produces a focused beam angle of 24°, suitable for spot and accent lighting in commercial, residential, and hospitality environments.

This model operates at a nominal voltage of 36.5 V DC and draws 12.6 W on mode power, ensuring reliable electrical performance and longevity. The replaceable front cover adds flexibility in optical configurations and future adaptability. Color consistency is tightly controlled to under 2 SDCM, satisfying stringent illumination quality demands.

Compliance with numerous standards such as EN 61547, EN 60529, IEC 62471, and EN 55015 ensures this product meets high safety, electromagnetic compatibility, and thermal management criteria. The IP20 rating confirms suitability for protected indoor areas where dust infiltration is restricted.

Ideal for applications in industrial, commercial, and architectural lighting, this Osram COB LED module enhances energy-efficient lighting solutions with brilliant beam quality and robust construction. Its design supports both high output and high efficacy modes, catering to diverse lighting requirements.

Provides 1000 lumens luminous flux for bright illumination. Compact 50mm diameter optical source for tight beam control. Warm 2700 K colour temperature suitable for cosy environments. IP20 protection rating for indoor use.

Integrated heat sink ensures enhanced thermal management. Compliant with EN and IEC safety and performance standards. Compatible with conventional MR16 lamps for retrofit ease. Replaceable front cover design for optical flexibility.

Discover our complete range of LED Lighting Components from Osram and other leading brands at EnvMart to support your industrial, commercial, and architectural lighting projects.
