RS PRO Twist Release Emergency Stop Push Button Surface Mount 1 NC IP65 250V dc 24V ac 40mm Head Diameter 70mm 242-0842

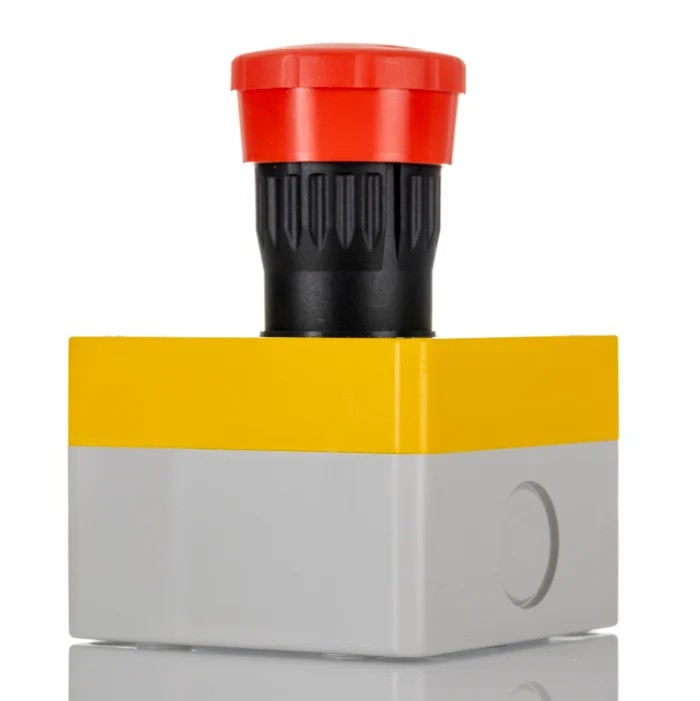

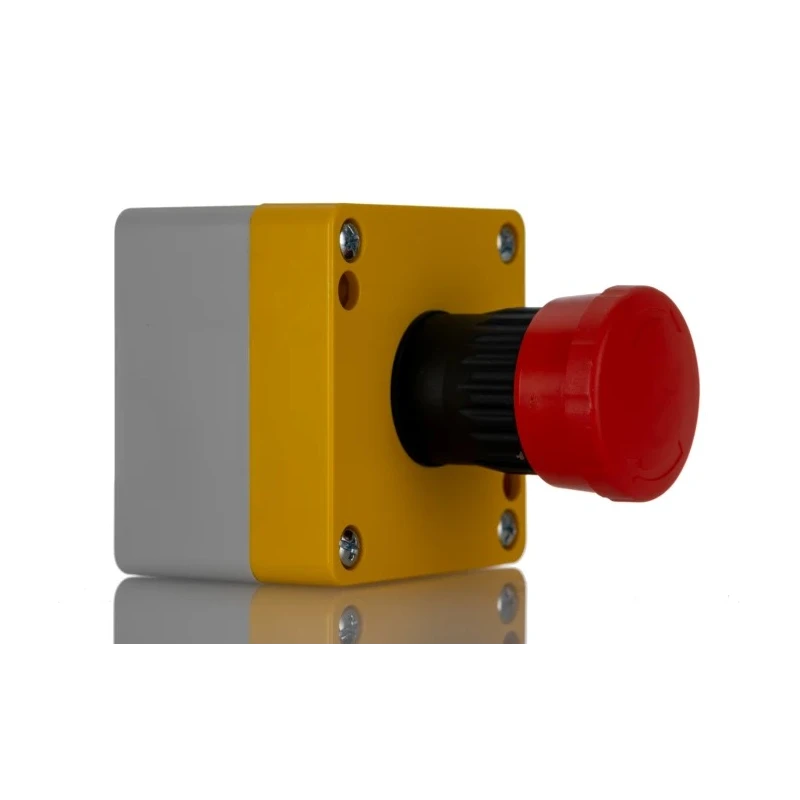

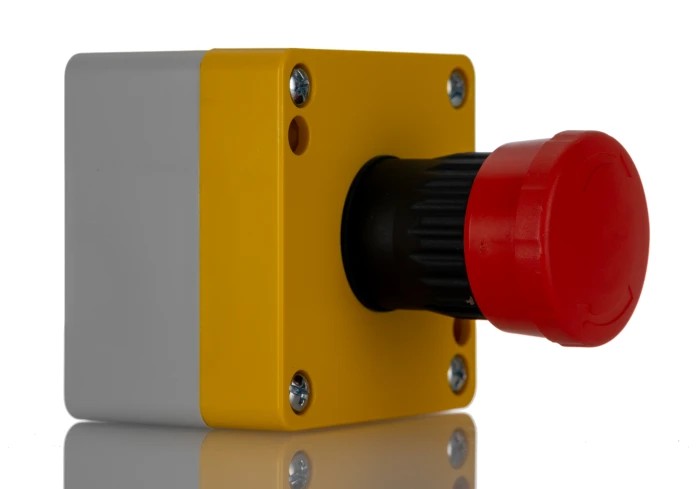

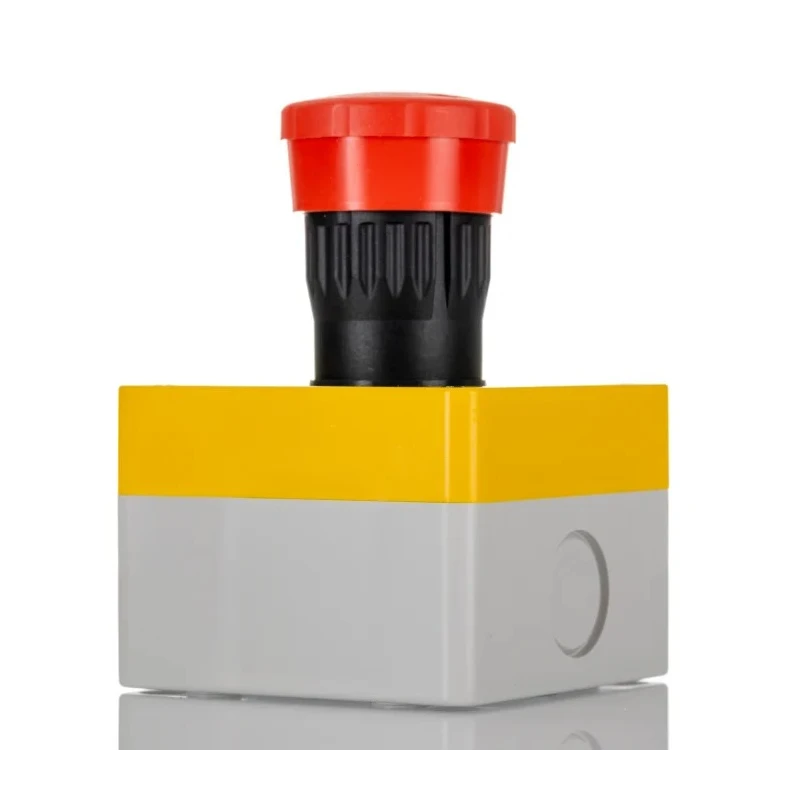

RS PRO 242-0842 Emergency Stop Push Button is designed for reliable safety control in industrial, automotive, and medical equipment applications. This surface mount push button features a durable thermoplastic housing with a red mushroom head 40mm diameter actuator, providing clear visibility for emergency stop procedures.

The push button includes a twist release actuation for deliberate resetting, preventing accidental operation. It has a compact size of 70mm length and width, allowing versatile surface mounting options. The device offers a single normally closed (1 NC) contact configuration, rated for contact voltages of 250V dc and 24V ac.

Certified to IEC 60947-5-1 and IEC 60947-5-5 standards, this emergency stop push button meets demanding requirements for safety and durability in harsh environments. Its IP65 ingress protection ensures reliable operation despite exposure to dust, water, or other contaminants.

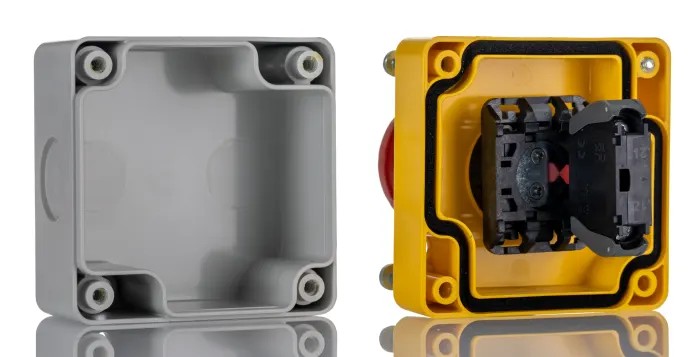

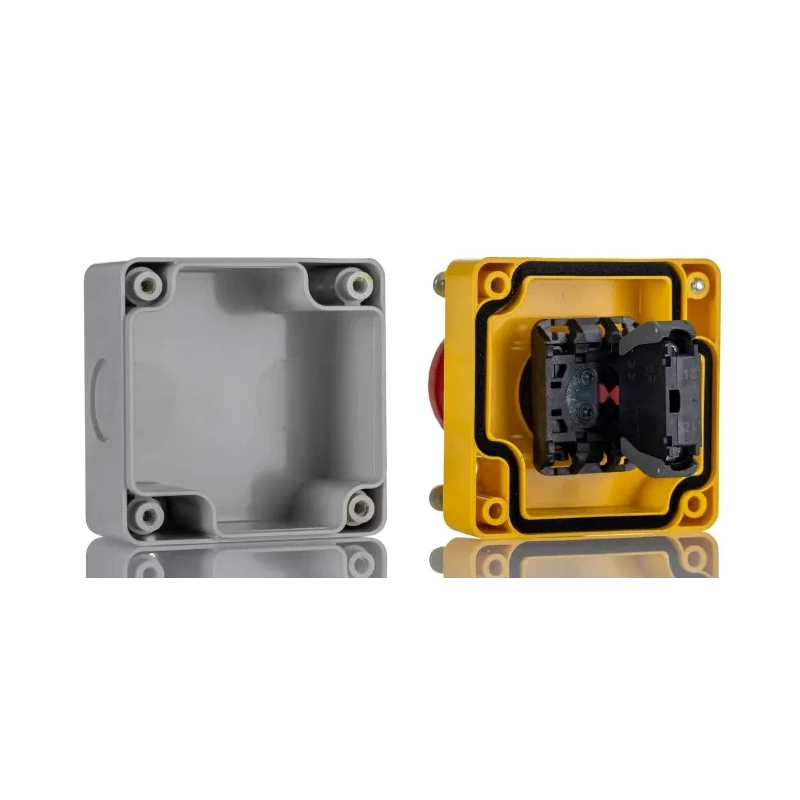

The terminal type uses screws with a captive cable clamp for secure and maintenance-friendly wiring. This E-STOP push button is part of the RS PRO SA series, available in multiple contact variants to suit different control needs.

Equipped with a red mushroom head 40mm diameter push button with clear marked direction. Housing made of durable thermoplastic material suitable for harsh environments. Rated for contact voltages of 250V dc and 24V ac. Compact dimensions with 70mm length and width enable easy installation.

Includes screw terminal type with captive cable clamp for secure connections. Conforms to IEC 60947-5-1 and IEC 60947-5-5 standards ensuring industrial reliability. IP65 protection guarantees resistance against dust and water ingress.

Designed for use in automotive, industrial controls, medical equipment, and building applications. Twist release mechanism enhances safety by preventing accidental resets. Available in RS PRO SA series with multiple contact configurations.

The RS PRO Emergency Stop Push Button is ideal for integration in control systems requiring rapid and safe emergency shutdown capability. Its robust construction and certified performance make it an essential safety component in manufacturing, automotive assembly, and healthcare equipment environments. Order the RS PRO 242-0842 model for surface mount emergency stop functionality with reliable twist release operation and IP65 protection.
