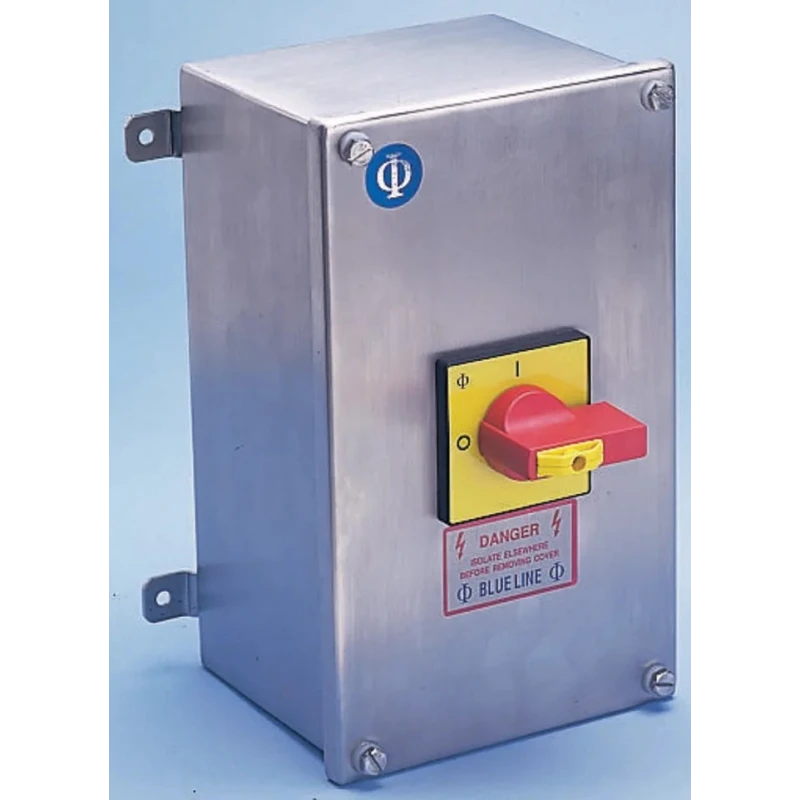

Kraus & Naimer 4-Pole Stainless Steel Enclosed Isolator Switch IP65 10A 315A 7.5 kW
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Kraus & Naimer |
| Model | IP65 |
| IP Rating | IP65 |
| Series | KG |
| Minimum Operating Temperature | 55°C |
| Switching Current | 10, 315A |
| Terminal type | Wire |
| Electrical Phase | 3 |
| Number of Poles | 4 |
| Standards/Approvals | BS EN 60204, BS EN 60947, IEC 60204, IEC 60947 |
| Switching Power | 7.5kW |
| Kraus & Naimer 4-Pole Surface Isolator Switch -, IP65, 25A, 5.5 WBrand | Kraus & Naimer |
Key Features
- Features a 1.5 mm stainless steel Grade 316 satin polish finish enclosure compliant with IP65 standards.
- Lockable in the OFF position with compatibility for up to four padlocks ensuring operational safety.
- Equipped with an early break/late make N/O auxiliary contact for auxiliary control.
- Supports 3-phase electrical systems with a nominal switching voltage of 690 V.
- Designed to operate within a temperature range of -55°C to +55°C for demanding environments.
- Meets rigorous standards including BS EN 60204, BS EN 60947, IEC 60204, and IEC 60947.
- Suitable for industrial applications requiring secure isolation and disconnection of electrical circuits.
- Neutral terminal is not included which should be accounted for during installation.
Product Description
Kraus & Naimer KG20.T204/GBA070.*SB1 is a 4-pole isolator switch designed for reliable disconnection in industrial electrical installations. Housed within a robust 1.5 mm thick Grade 316 stainless steel enclosure finished with a satin polish, it offers excellent corrosion resistance and IP65 ingress protection making it suitable for harsh industrial or outdoor environments.
This isolator switch supports 3-phase configurations with a nominal switching voltage of up to 690 V and a switching current rating of 10 A (with auxiliary switching at 315 A), suitable for motor loads rated up to 7.5 kW under Utilization Category AC23A/AC3.
Its design includes lockable OFF position provisions compatible with up to four padlocks to prevent unauthorized operation during maintenance or shutdown. An auxiliary contact with early break/late make function provides reliable signaling or remote indication capabilities.
The switch is engineered to operate effectively in a temperature range from -55°C to +55°C, ensuring operational stability across various industrial climates. Although the neutral terminal is not included, the unit complies strictly with international standards such as BS EN 60204, BS EN 60947, IEC 60204, and IEC 60947, ensuring safety and quality.
Ideal for use in commercial, manufacturing, HVAC, and water treatment plants, this isolator switch allows safe isolation of electrical circuits for maintenance and emergency use in complex electrical setups.
1.5 mm stainless steel Grade 316 satin polish enclosure to IP65. Lockable OFF position with padlock compatibility for enhanced safety. Auxiliary contact for signaling functions. No neutral terminal included; installation adjustments required.
Complies with BS EN 60204, BS EN 60947, IEC 60204, IEC 60947 standards. Rated for 10 A switching current and 7.5 kW motor rating at 3-phase 380/440 V supply. Explore the Kraus & Naimer collection and other Isolator Switches available at EnvMart for industrial-grade electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating of this model is 10 A, with an auxiliary switching capability of up to 315 A.
It supports a nominal switching voltage of up to 690 V, making it suitable for various industrial applications.
This isolator switch is rated for motor loads up to 7.5 kW under Utilization Category AC23A/AC3.
It features a 1.5 mm thick Grade 316 stainless steel enclosure with a satin polish finish, providing excellent corrosion resistance and IP65 ingress protection.
It is designed to operate effectively within a temperature range of -55°C to +55°C, suitable for demanding environments.
Yes, it includes a lockable OFF position that is compatible with up to four padlocks, enhancing operational safety.
It meets rigorous standards including BS EN 60204, BS EN 60947, IEC 60204, and IEC 60947, ensuring safety and quality.
No, the neutral terminal is not included, which should be accounted for during installation.
This model supports 3-phase electrical systems, making it suitable for various industrial applications.
This isolator switch is a 4-pole design, allowing for reliable disconnection in industrial electrical installations.
The isolator switch is manufactured in the United Kingdom.
It is equipped with an early break/late make N/O auxiliary contact for auxiliary control and signaling functions.
