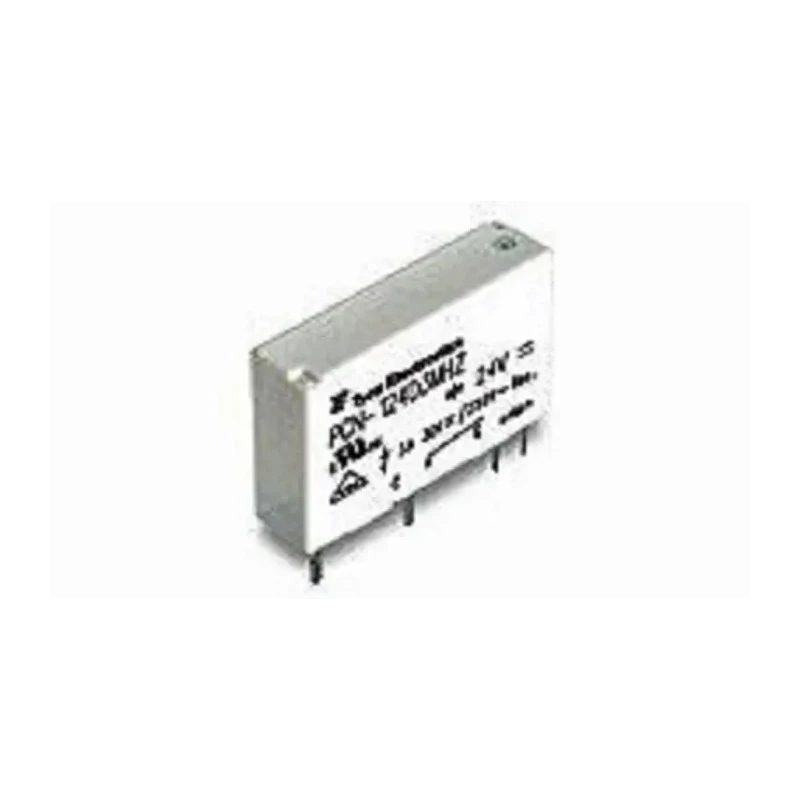

TE Connectivity Panel Monostable Relay 24V AC/DC Coil 3A Switching Current SPST 7-1461491-6
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS, UL |
| Coil Resistance | 100Ω |
| Coil Voltage | 24V ac/dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
| Coil Magnetic System | Monostable, DC |
Key Features
- This panel mount relay features a 24V AC/DC coil voltage for versatile operation.
- It supports a switching current of 3 amps for efficient power handling.
- The contact configuration is single-pole single-throw (SPST) suitable for control applications.
- Built with silver alloy contacts providing low contact resistance and durability.
- Coil power consumption is 400 mW ensuring energy-efficient performance.
- Rated for switching AC voltage up to 250V and DC voltage up to 30V.
- Operating temperature range from -40°C to 85°C suits industrial environments.
- Compact dimensions of 20mm length, 15mm height, and 10mm width enable easy panel integration.
Product Description
TE Connectivity 7-1461491-6 Panel Monostable Relay is designed for industrial and electrical applications requiring a reliable relay switch with a 24V AC/DC coil and 3A switching current in a SPST (Single Pole Single Throw) configuration.
This panel mount relay provides a coil power rating of 400 mW and coil resistance of 100 ohms, making it energy efficient and precise for control circuits. It operates within a temperature range from -40 degrees Celsius to 85 degrees Celsius, allowing its use in harsh and varying environmental conditions common in industrial setups.
The relay uses silver alloy contacts which ensure low contact resistance of 50 milliohms and enhance durability and longevity. It is capable of switching AC loads up to 250 volts and DC loads up to 30 volts, making it suitable for a variety of power relay applications. The relay's compact size of 20mm length, 15mm height, and 10mm width enables easy integration into panel systems where space is limited.
Special insulation features include a 4000V initial surge withstand voltage between the coil and contacts, and a tracking index of the relay base (PTI) of 600, ensuring robust electrical isolation and safety.
Compliance with RoHS and UL standards confirms this relay’s environmental safety and regulatory adherence, making it a dependable component for automation, electrical distribution, industrial controls, and signal conditioning systems.
This relay supports panel mounting and features solder terminal types for secure electrical connections. Its monostable DC coil magnetic system ensures reliable switching operation with quick return action. The product weighs approximately 3 grams, reflecting its lightweight and compact design.
Ideal for use in industrial automation, electrical panels, and control systems requiring single-pole switching. Manufactured in China under stringent quality processes.
For reliable and compact relay solutions with specific 24V coil voltage and 3A switching capability, the TE Connectivity 7-1461491-6 is well-suited. Browse the Power Relays category for more options and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 24V AC/DC coil voltage, making it versatile for various applications.
It supports a maximum switching current of 3 amps, suitable for efficient power handling in control applications.
This relay has compact dimensions of 20mm in length, 15mm in height, and 10mm in width, facilitating easy panel integration.
The relay features a single-pole single-throw (SPST) contact configuration, ideal for control applications.
It is rated for switching AC voltage up to 250V and DC voltage up to 30V, making it suitable for a variety of power relay applications.
The coil power consumption is 400 mW, ensuring energy-efficient performance in control circuits.
The relay is built with silver alloy contacts, which provide low contact resistance and enhance durability.
It operates within a temperature range from -40°C to 85°C, suitable for harsh industrial environments.
This model supports panel mounting and features solder terminal types for secure electrical connections.
It complies with RoHS and UL standards, confirming its environmental safety and regulatory adherence.
The relay weighs approximately 3 grams, reflecting its lightweight and compact design.
It utilizes a monostable DC coil magnetic system, ensuring reliable switching operation with quick return action.
