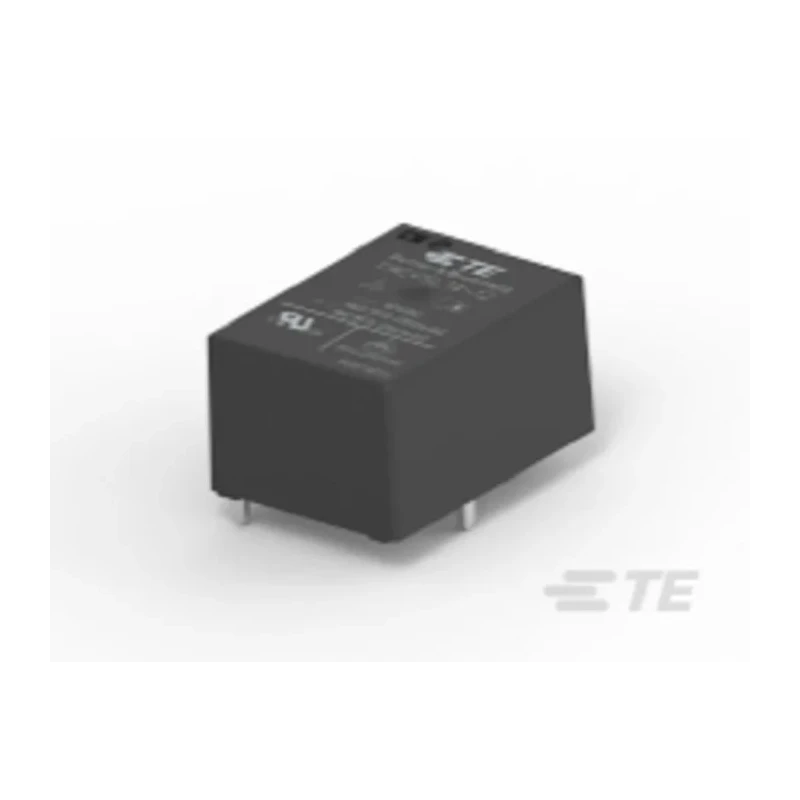

TE Connectivity PCB Monostable Relay 12V dc Coil 30A Switching Current SPST 1558661-3
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 15mm |
| Length | 20mm |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 30A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, RoHS |
| Coil Resistance | 100Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminal type.
- Single Pole Single Throw (SPST) contact configuration.
- Coil resistance of 100 ohms and coil power of 400 mW.
- Operating temperature range from -40°C to 85°C.
- Supports switching DC voltage up to 30V and AC voltage up to 250V.
- Contact material made of silver alloy ensuring low resistance of 50 milliohms.
- Meets UL and RoHS standards for safety and environmental compliance.
Product Description
TE Connectivity 1558661-3 PCB Monostable Relay is engineered for high-performance switching applications in electrical, automation, and industrial environments. This power relay features a 12V DC coil voltage and can handle a switching current up to 30 amperes, making it ideal for controlling medium power loads on printed circuit boards.
The relay offers a SPST (Single Pole Single Throw) contact configuration and uses silver alloy contacts to ensure high conductivity and durability with a low contact resistance of 50 mΩ.
Its compact footprint with dimensions of 20mm length, 15mm height, and 10mm width enables easy integration into tight PCB designs. The solder terminal type ensures reliable electrical connections.
Operating temperature ranges from -40°C to 85°C allow the relay to perform reliably in harsh environments. The coil resistance of 100Ω and coil power consumption of 400 mW translate to efficient operation.
Certified to UL and RoHS standards, this TE Connectivity relay is suitable for industrial, automation, HVAC, and power management applications where dependable switching is critical.
Designed for PCB mounting with solder terminal type. Single Pole Single Throw (SPST) contact configuration. Coil resistance of 100 ohms and coil power of 400 mW. Operating temperature range from -40°C to 85°C. Supports switching DC voltage up to 30V and AC voltage up to 250V.
Compact dimensions: 20mm length, 15mm height, and 10mm width. Contact material made of silver alloy ensuring low resistance of 50 milliohms. Meets UL and RoHS standards for safety and environmental compliance. Explore the comprehensive range of Power Relays at EnvMart for reliable electronic and industrial circuit control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay can handle a maximum switching current of 30 amperes.
This model operates with a coil voltage of 12V DC.
It features a Single Pole Single Throw (SPST) contact configuration.
The contact material is made of silver alloy, which ensures low contact resistance.
The relay has dimensions of 20mm in length, 15mm in height, and 10mm in width.
The operating temperature range is from -40°C to 85°C.
The coil resistance is 100 ohms.
The coil power consumption is 400 mW.
It supports switching DC voltage up to 30V and AC voltage up to 250V.
This relay is designed for PCB mounting with a solder terminal type.
It meets UL and RoHS standards for safety and environmental compliance.
The contact resistance is 50 milliohms.
