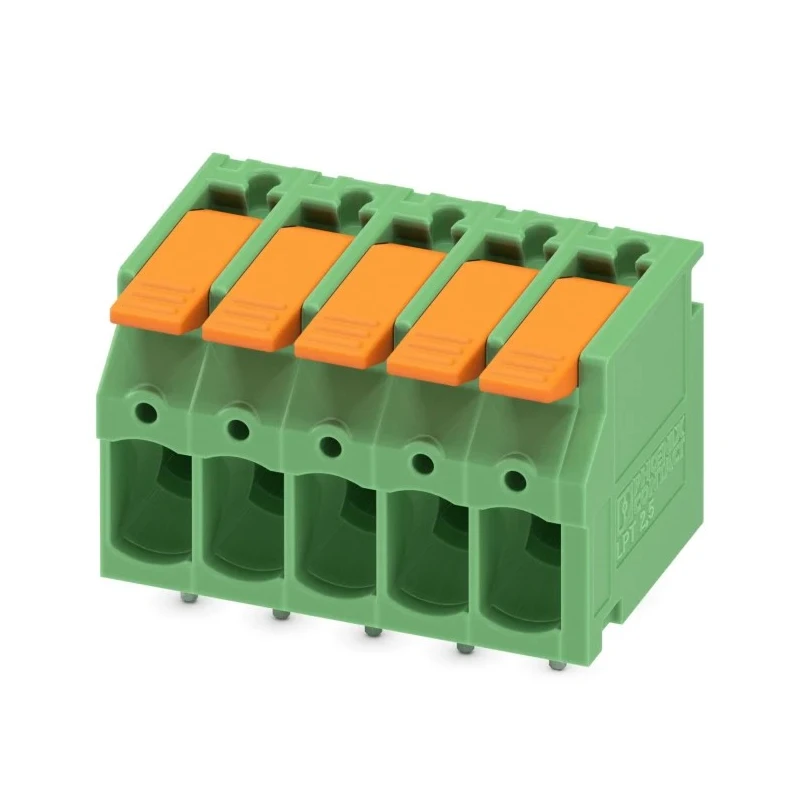

Phoenix Contact LPT Series PCB Terminal Block, 5-Contact, 5 mm Pitch, 1 Row, Push-in Connection, 400V, 24A 1190300
Specifications
| Country of Origin | Slovakia |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 17.8mm |
| Model | 1190300 |
| Depth | 20.24mm |
| Width | 26.5mm |
| Housing Material | Polyamide |
| Series | LPT |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | IEC |
| Number of Contacts | 5 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Push-in |
Key Features
- The push-in wire connection method allows for tool-free, quick, and reliable terminals.
- Rated for a maximum current of 24 amperes and voltage up to 400 volts.
- Constructed with polyamide housing for durable insulation in a green color.
- Supports wire sizes from 0.2 mm² to 4 mm² (24 AWG to 12 AWG), enhancing versatility.
- Complies with IEC standards, ensuring international quality and safety.
- Compact dimensions with a length of 17.8 mm, width of 26.5 mm, and depth of 20.24 mm.
- Straight orientation design for easy PCB mounting and wiring.
- Series LPT provides stable and long-term contact force with Cu alloy contacts.
Product Description
The Phoenix Contact 1190300 PCB Terminal Block is designed to provide efficient and reliable electrical connections on printed circuit boards. Featuring a 5-contact configuration with a 5 mm pitch and a single row layout, this terminal block is ideal for high-density PCB applications.
Its push-in wire connection technology allows for fast and tool-free installation, enhancing assembly productivity and minimizing maintenance time. Suitable for currents up to 24A and voltages up to 400V, this terminal block supports a broad range of wire sizes from 0.2 mm² to 4 mm², corresponding to 24 AWG to 12 AWG wires.
The housing is made from durable polyamide material, colored green, providing robust insulation and mechanical stability. The contacts are constructed from copper alloy ensuring excellent conductivity and long-lasting performance with reliable contact force that maintains stable connections over time.
Dimensionally compact, with a length of 17.8 mm, width of 26.5 mm, and depth of 20.24 mm, it fits compact circuit designs while maintaining accessibility for wiring. The straight orientation facilitates straightforward mounting on PCB panels.
Meeting IEC standards, the LPT Series ensures compliance with international safety and quality requirements. This makes it suitable for industrial electronics, power connectors, automation systems, and commercial applications demanding dependable terminal block solutions.
The push-in connection mechanism enables tool-free, time-saving installation. Supports current ratings up to 24 amperes and voltage up to 400 volts. Polyamide housing offers strong insulation and mechanical reliability. Compatible with wire sizes ranging 0.2 mm² to 4 mm² (24 AWG to 12 AWG).
Complies with IEC industry standards for safety and performance. Compact size with precise dimensions for PCB integration. Straight orientation easing wiring and mounting configurations. Reliable copper alloy contacts ensure lasting electrical performance.
This Phoenix Contact 1190300 terminal block is an essential component for electronic assemblies requiring stable, efficient, and standardized PCB wiring solutions. It is widely used in industrial automation, instrumentation, and electrical control panels.
Explore the category for additional Phoenix Contact PCB Terminal Blocks and other related electronic components available at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this terminal block is 24 amperes.
It can handle a maximum voltage of 400 volts.
This terminal block supports wire sizes ranging from 0.2 mm² to 4 mm², which corresponds to 24 AWG to 12 AWG wires.
The terminal block features a 5-contact configuration with a 5 mm pitch.
The housing is constructed from polyamide, providing strong insulation and mechanical stability.
The dimensions are 17.8 mm in length, 26.5 mm in width, and 20.24 mm in depth.
The wire connection method is push-in, allowing for tool-free installation.
The terminal block has a straight orientation, which facilitates easy PCB mounting and wiring.
It complies with IEC standards, ensuring international quality and safety.
This terminal block belongs to the LPT Series.
The country of origin for this terminal block is Slovakia.
It is suitable for industrial automation, instrumentation, and electrical control panels.
