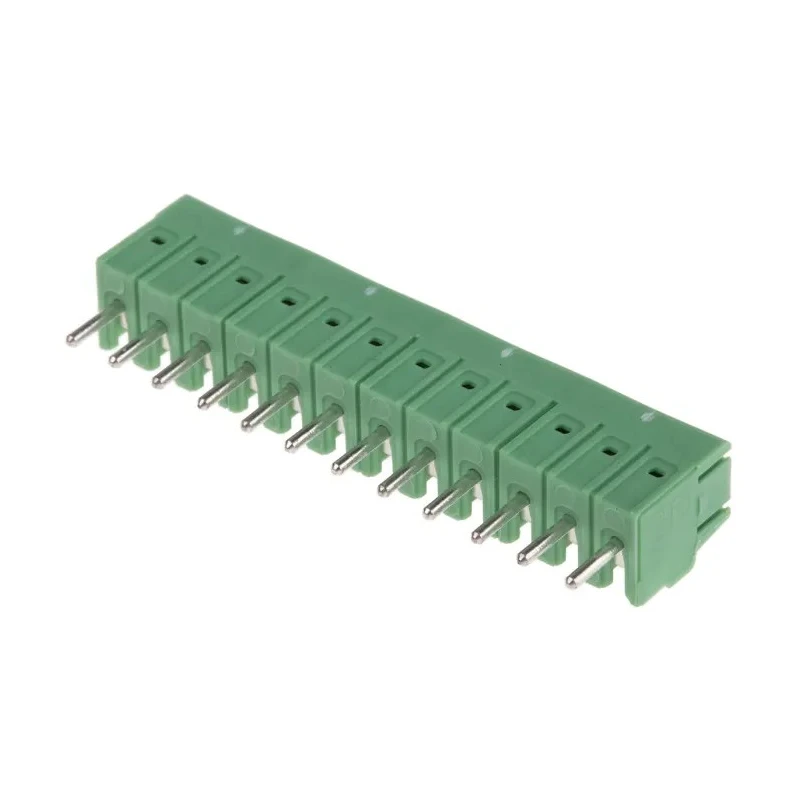

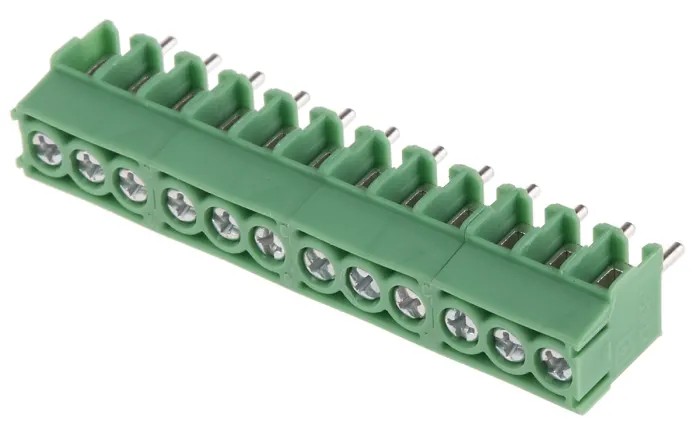

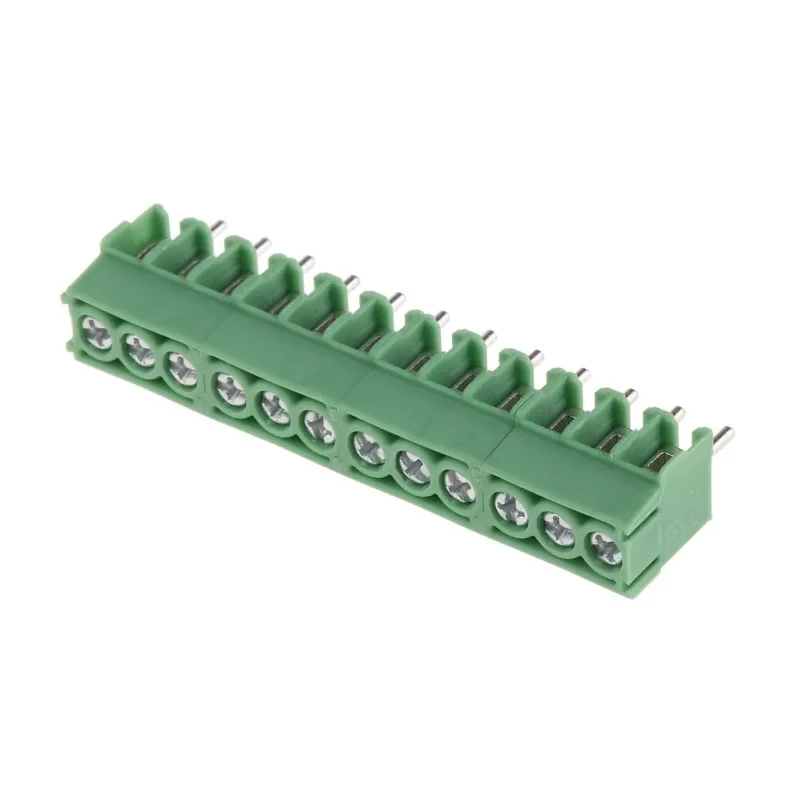

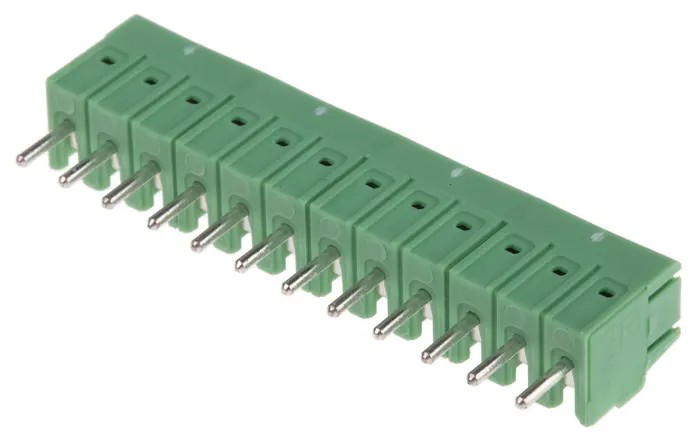

Phoenix Contact PT 1.5/12-3.5-H Series Straight PCB Terminal Block, 12 Contacts, 3.5 mm Pitch, 200 V, Polyamide 1984714

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact PT 1.5/12-3.5-H Series Straight PCB Terminal Block, 12 Contacts, 3.5 mm Pitch, 200 V, Polyamide 1984714

Name: Phoenix Contact PT 1.5/12-3.5-H Series Straight PCB Terminal Block, 12 Contacts, 3.5 mm Pitch, 200 V, Polyamide 1984714
Brand: PHOENIX CONTACT
SKU: 201837



Category PCB Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	China
Voltage	200V
Brand	Phoenix Contact
Orientation	Straight
Current	17.5A
Model	1984714
Housing Material	Polyamide
Series	PT 1.5/12-3.5-H
Number of Rows	1
Pitch	3.5mm
Number of Contacts	12

Key Features

The terminal block features a straight orientation with one row for compact PCB mounting.
Constructed with durable polyamide housing ensuring long-lasting mechanical and electrical stability.
Supports current load up to 17.5 A suitable for diverse electronic circuits.
Designed for through-hole mounting with screw terminals securing wire connections reliably.
Multiple positions can be combined via latching for extended wiring capability.
Ideal for industrial, electronic manufacturing, control cabinet, and automation applications.
Offers low-temperature rise due to maximum contact force for efficient current transmission.
Green colored workmanship consistent with the PT 1.5 series design language.

Product Description

Phoenix Contact 1984714 is a high-quality PT 1.5/12-3.5-H Series Straight PCB Terminal Block designed for electronics where a secure and reliable PCB connection is essential. It features 12 contact points arranged in one straight row with a 3.5 mm pitch, making it suitable for dense circuit board layouts.

Manufactured with robust polyamide housing, this terminal block provides excellent mechanical durability and reliable wire termination via screw-tightened contacts. Rated for 17.5 A current and 200 V voltage, it meets the demands of medium power electronic and industrial control applications.

The screw terminal design enables easy insertion and secure fixing of wires for stable electrical performance. Multiple blocks can be combined side by side using built-in latching, allowing flexible configuration of connections in complex circuits.

This component finds uses across industrial automation, PCB assembly, power electronics, and HVAC controls where dependable wire connection and compact design are prerequisites. The terminal block combines high contact force with low heat generation ensuring efficient operation.

Its through-hole mounting method secures the component firmly on printed circuit boards for mechanical stability. The green color coding is standard for the PT 1.5 series, aiding visual identification during assembly and maintenance.

Compact 3.5 mm pitch spacing facilitates designing high-density PCB layouts maximizing usable board space. Supplied with 12 contacts, it supports a multitude of wire termination points on a single block segment. Ideal for customers seeking trustworthy PCB connector solutions from Phoenix Contact’s acclaimed PT 1.5 range.

Choose this Phoenix Contact terminal block for precision, reliability, and excellent quality in your electronics manufacturing and industrial projects. Browse other Phoenix Contact components and PCB connection solutions on EnvMart.
