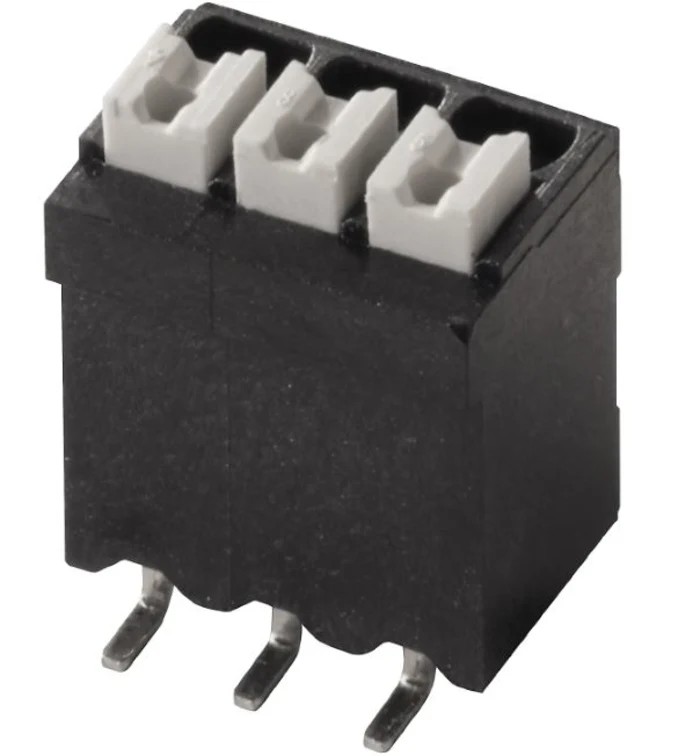

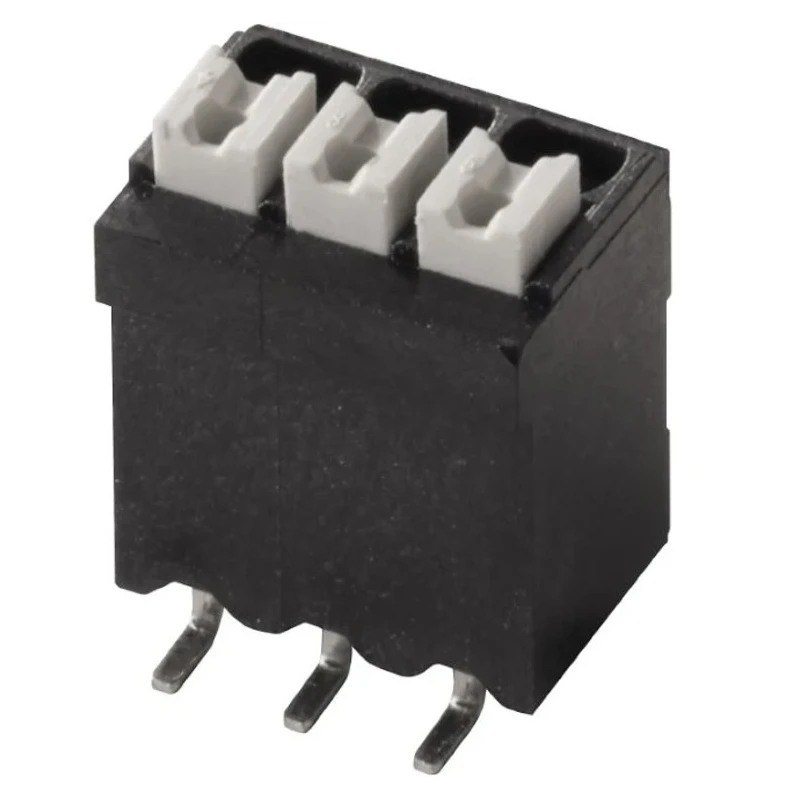

Weidmüller LSF Series PCB Terminal Block 9-Contact 3.5 mm Pitch 1 Row 320V Push-In Connection 1250440000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 180° |
| Current | 17.5A |
| Depth | 10.5mm |
| Width | 32.2mm |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 9 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.13mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Push-in |
Key Features
- Supports up to 17.5A current capacity for reliable power transmission.
- Features push-in wire connection method allowing tool-free conductor insertion.
- Manufactured with fibreglass liquid crystal polymer housing for robust insulation and durability.
- Accepts wire sizes from 0.13mm² to 1.5mm² (28AWG to 16AWG) for versatile applications.
- Compact dimensions with 32.2 mm width and 10.5 mm depth optimize PCB space usage.
- Designed for 180° orientation and single row configuration for straightforward assembly.
- Suitable for fully automatic assembly including reflow soldering (SMD) processes.
- Black color housing with clear potential and clamping markings for easy identification.
Product Description
Weidmüller 1250440000 LSF Series PCB Terminal Block is a high-performance electronics component designed for industrial and commercial PCB applications. This 9-contact terminal block features a 3.5 mm pitch and a single row arrangement, delivering reliable electrical connections with up to 17.5A current capacity at 320V voltage rating.
The housing is made of fibreglass liquid crystal polymer, providing excellent durability, thermal stability, and electrical insulation. The compact design, measuring 32.2 mm in width and 10.5 mm in depth, ensures efficient use of PCB space while providing secure conductor retention.
Equipped with a push-in wire connection method, this terminal block allows quick and tool-free insertion of solid wires or ferrules, suitable for wire sizes from 0.13 mm² (28AWG) to 1.5 mm² (16AWG). The 180° orientation and clear markings on the push buttons facilitate correct wiring and identification.
The product supports fully automatic assembly processes, including reflow and vapor phase soldering, optimizing manufacturing efficiency. It is ideal for applications in industrial, electronics manufacturing, automation systems, and power distribution boards.
This terminal block belongs to Weidmüller’s Omnimate and LSF ranges, known for offering compact, multi-pole connector solutions with excellent connection technology ranging from clamping-yoke screw connections to advanced PUSH IN spring stop mechanisms.
Supports 17.5A current capacity. Push-in conductor connection system. Fibreglass liquid crystal polymer housing. Wide wire size compatibility from 0.13 mm² to 1.5 mm². Optimized 3.5 mm pitch for PCB density. Single row, 9 contacts configuration.
Designed for automated SMT processes. Compact dimensions enhance PCB layout flexibility. Reliable for industrial and electronic manufacturing use cases.
This Weidmüller PCB terminal block is suited for electrical, manufacturing, industrial automation, and commercial electronics projects requiring dependable and easy-to-install PCB connectors. Discover more products from the Electronics & Electricals category on EnvMart to complement your electrical designs.
Explore more products in our PCB Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a current capacity of up to 17.5A.
It has a voltage rating of 320V.
It accepts wire sizes ranging from 0.13 mm² (28AWG) to 1.5 mm² (16AWG).
The pitch size is 3.5 mm, which is optimized for PCB density.
It is designed for a 180° orientation.
The housing is made from fibreglass liquid crystal polymer, providing excellent insulation and durability.
This model features 9 contacts in a single row configuration.
It measures 10.5 mm in depth and 32.2 mm in width.
It utilizes a push-in wire connection method, allowing for tool-free insertion of conductors.
Yes, it is designed for fully automatic assembly processes, including reflow soldering.
The housing is black and features clear potential and clamping markings for easy identification.
The country of origin for this terminal block is India.
