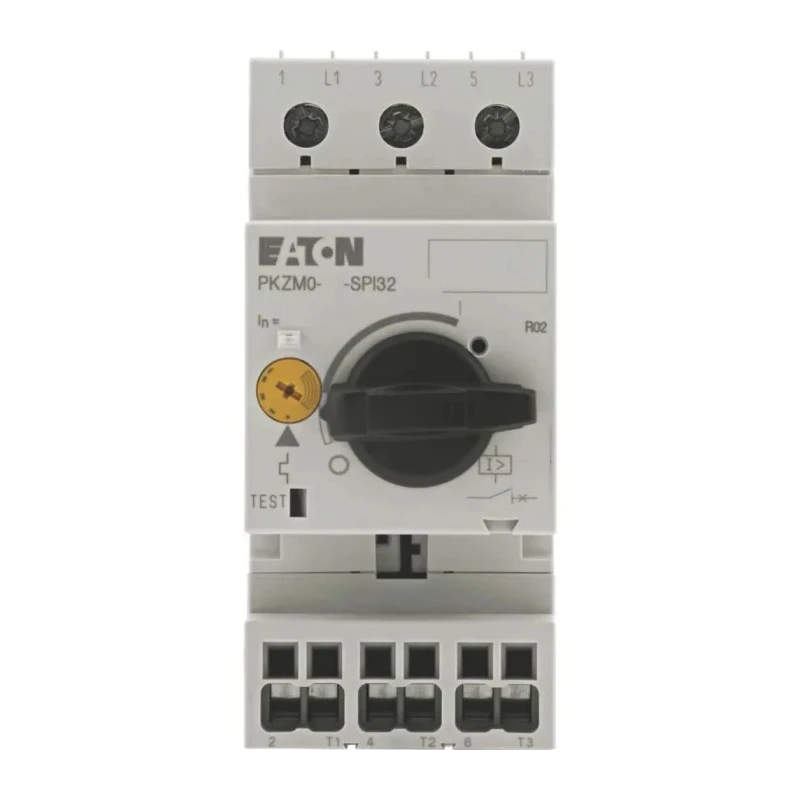

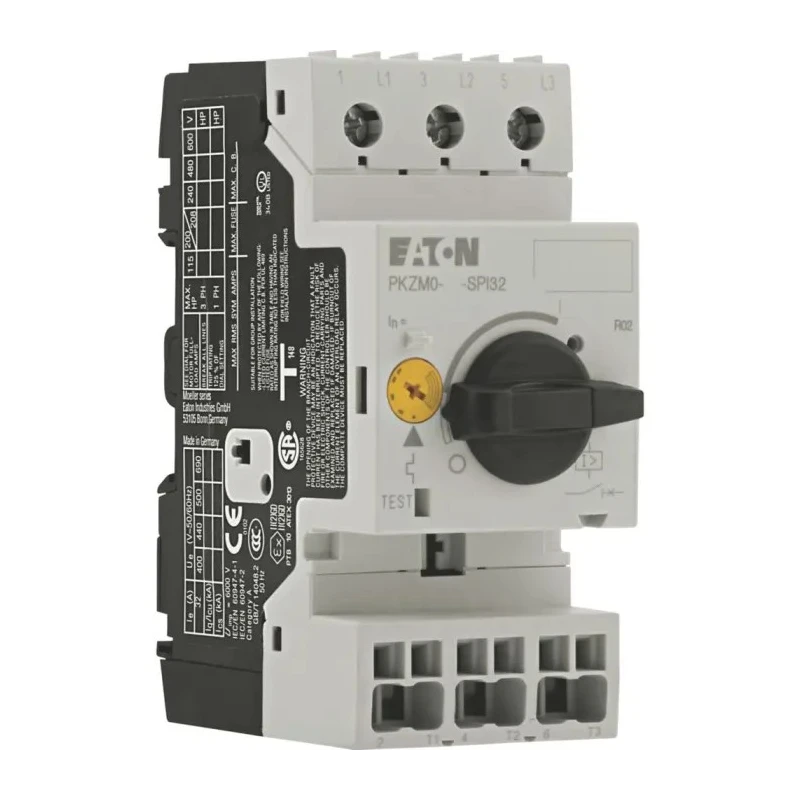

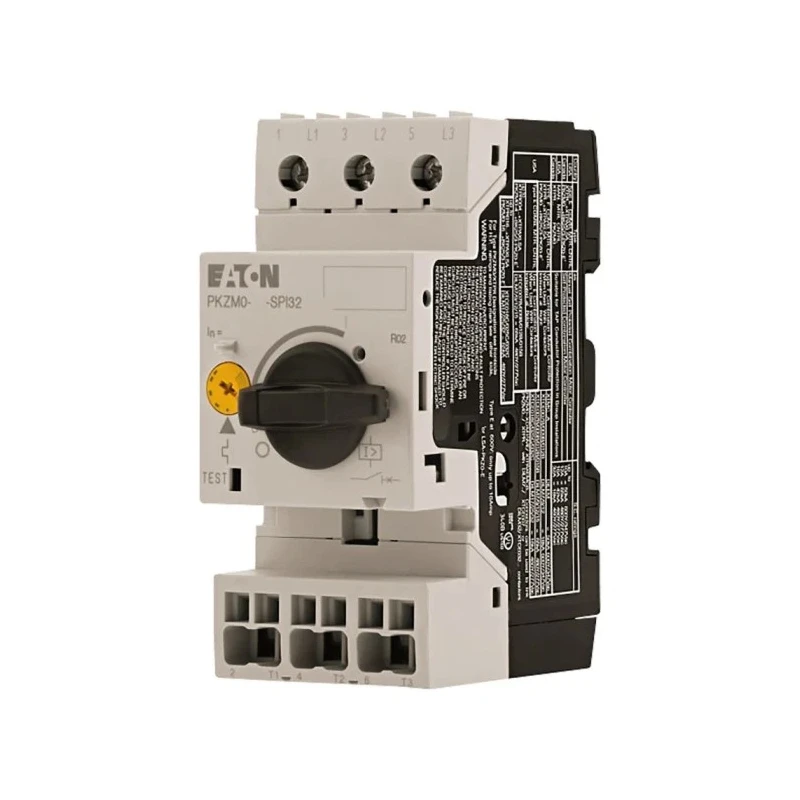

Eaton 12A Motor Protection Circuit Breaker PKZM0 Series, 690V, IP20, 3 Poles, -25°C to 55°C, 199199 PKZM0-12-SPI32
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199199 PKZM0-12-SPI32 |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 12A |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- This device offers a rated operational current of 12 A suitable for various motor applications.
- The motor protection combination is designed for effortless integration with motor starter combinations.
- It supports a supply voltage of up to 690 V ensuring compatibility with high-voltage systems.
- Featuring a thermomagnetic switch-off mechanism, it enhances motor safety through reliable operation.
- Phase failure sensitivity is included to improve protection against supply interruptions.
- The breaker has a high breaking capacity of up to 50 kA, suitable for demanding industrial environments.
- It is equipped with both screw and push-in terminal connections for versatile installation options.
- Rated for operating temperatures from -25 °C to 55 °C, it withstands harsh ambient conditions.
Product Description
Eaton 199199 PKZM0-12-SPI32 is a 12A Motor Protection Circuit Breaker in the PKZM0 series, designed for industrial motor protection with a supply voltage rating of 690V and operational temperature range from -25°C to 55°C. It provides essential protection against overloads and short circuits to safeguard electric motors and maintain operational efficiency.
This motor protection breaker incorporates a thermomagnetic trip mechanism ensuring accurate and reliable disconnection during overload conditions. The phase failure sensitivity improves system reliability by detecting supply disruptions early. It supports a high breaking capacity of up to 50 kA, making it suitable for installations requiring robust protection.
The device is compatible with standard motor starter combinations and can be mounted on IEC/EN 60715 top-hat rails for streamlined panel assembly. It offers flexible wiring options with both screw and push-in terminals to suit diverse installation requirements.
Compact and robust, this IP20 rated circuit breaker measures 75 mm in length, 45 mm in width, and 75 mm in depth, matching industrial space constraints. The rated operating temperature range from -25 °C to 55 °C ensures reliable performance under varying environmental conditions.
Typical applications include industrial automation, electric motor protection in manufacturing plants, HVAC systems, and other critical electrical control panels. Regular testing and maintenance by following safety standards will ensure long-lasting performance and safety.
This breaker delivers reliable motor protection suitable for a variety of industrial environments. High breaking capacity supports safety in demanding electrical circuits. Multiple connection types enhance ease of installation and maintenance.
Wide operating temperature range supports use in harsh ambient conditions. Slim compact dimensions allow efficient use of panel space. Explore the full Eaton product range on EnvMart for comprehensive motor protection solutions tailored to industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated operational current of this model is 12 A, making it suitable for various motor applications.
It supports a maximum supply voltage of 690 V, ensuring compatibility with high-voltage systems.
This breaker has a high breaking capacity of up to 50 kA, suitable for demanding industrial environments.
The operating temperature range is from -25 °C to 55 °C, allowing it to withstand harsh ambient conditions.
This model features 3 poles, providing effective protection for three-phase systems.
It is equipped with both screw and push-in terminal connections for versatile installation options.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The dimensions are 75 mm in length, 45 mm in width, and 75 mm in depth, making it compact for industrial applications.
Typical applications include industrial automation, electric motor protection in manufacturing plants, and HVAC systems.
It incorporates a thermomagnetic trip mechanism, ensuring accurate disconnection during overload conditions.
It can be mounted on IEC/EN 60715 top-hat rails for streamlined panel assembly.
The country of origin for this circuit breaker is Germany.
