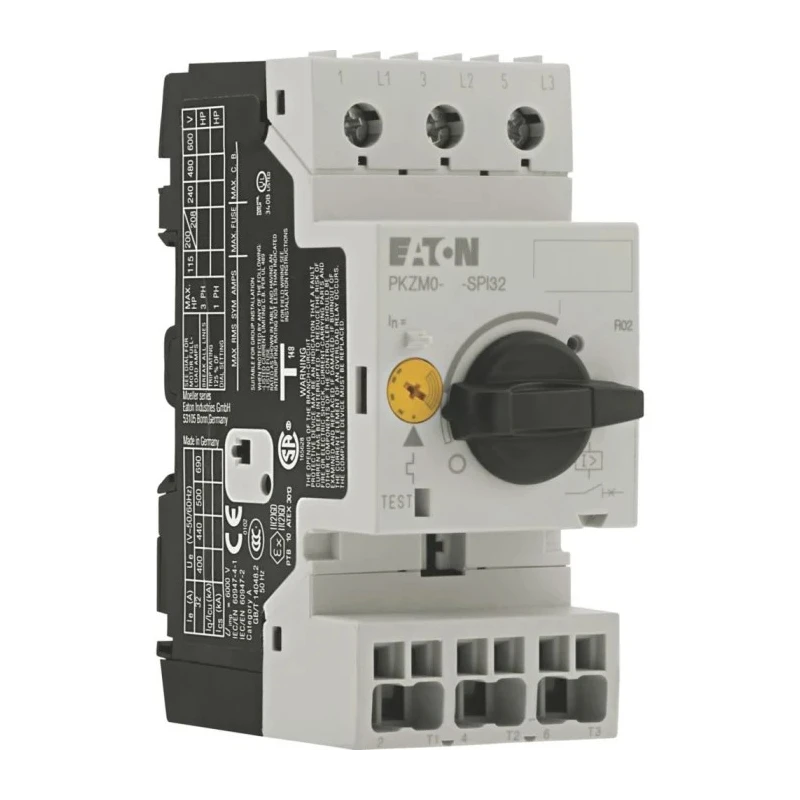

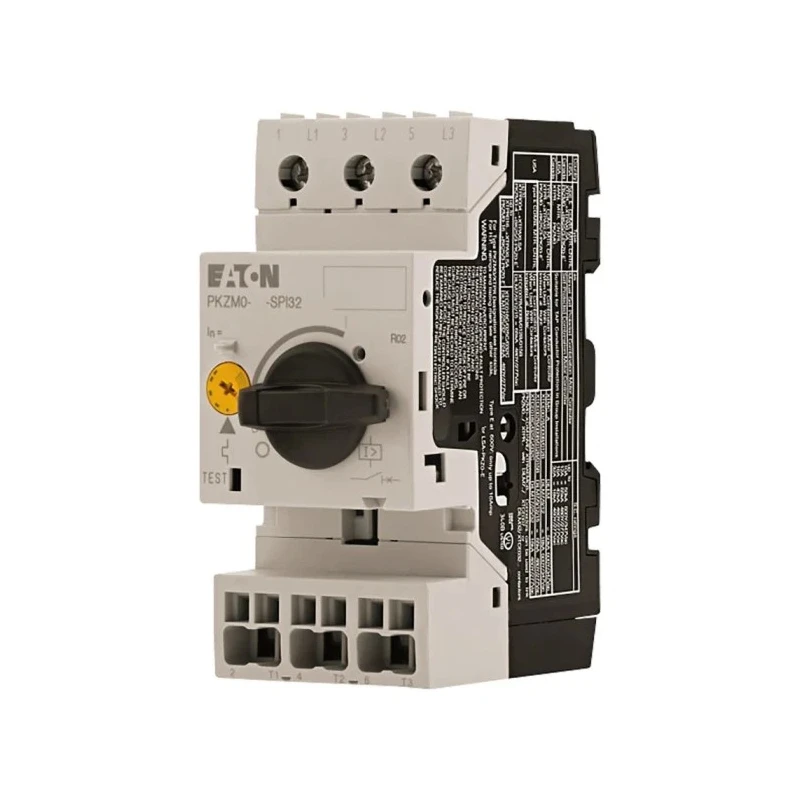

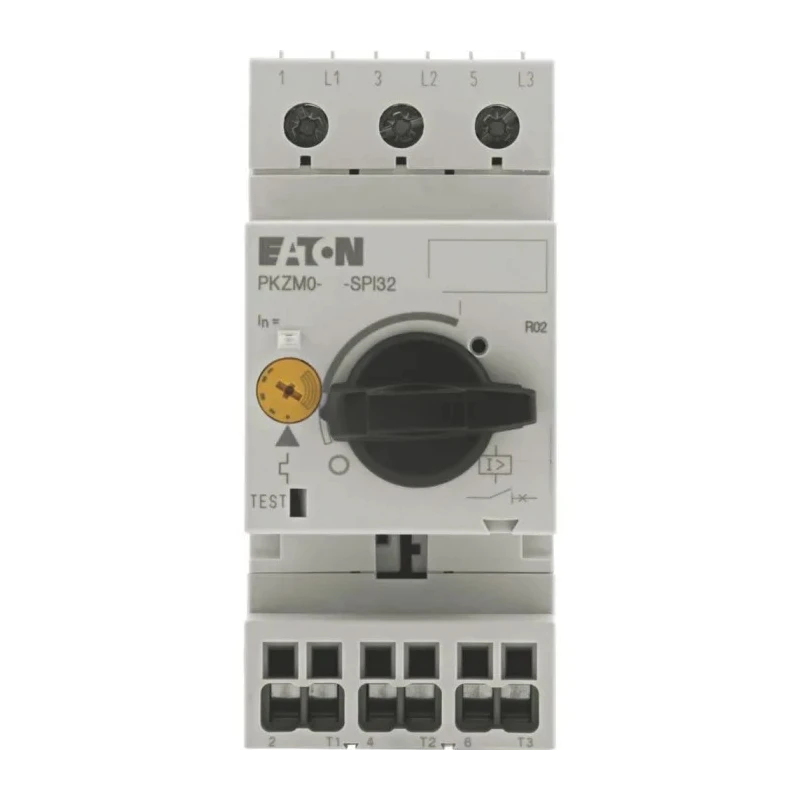

Eaton Motor Protection Circuit Breaker PKZM 0 Series, 400mA Current Rating, 690V Supply Voltage, 3 199191 PKZM0-0,4-SPI32
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Eaton |
| Model | 199191 PKZM0-0,4-SPI32 |
| IP Rating | IP20 |
| Overall Length | 75mm |
| Current Rating | 400mA |
| Series | PKZM 0 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Overall Depth | 75mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Starter Combination |
Key Features
- Provides protection against motor overloads, phase failures, and short circuits.
- Equipped with phase-failure sensitivity for enhanced operational reliability.
- High breaking capacity rated at 150kA for superior circuit protection.
- Features durable three-pole design suited for varied industrial applications.
- Installation is simple with screw terminals on the feed and push-in terminals on the output.
- Rated for operation in ambient temperatures from -25°C to 55°C.
- IP20 rated enclosure ensures protection against solid objects larger than 12mm.
- Complies with RoHS standards assuring environmental compliance.
Product Description
Eaton 199191 PKZM0-0,4-SPI32 Motor Protection Circuit Breaker from the PKZM 0 series is a high-quality industrial-grade device designed for effective motor protection. It carries a current rating of 400mA and operates at a supply voltage of 690V with a three-pole configuration, making it ideal for safeguarding electric motors in demanding environments.
This circuit breaker enhances operational safety by providing advanced phase-failure sensitivity, preventing damage due to phase loss. It features a robust breaking capacity of 150kA, ensuring reliable interruption of high fault currents. The compact and durable build includes an IP20 rating, optimized for protecting equipment from solid foreign objects.
Installation is straightforward via standard IEC/EN 60715 top-hat rail mounting, complemented by screw terminals for the feed side and push-in terminals for the output side. The device is rated for ambient temperature operation ranging from -25°C to 55°C, suitable for diverse industrial environments and altitudes up to 2000m.
With an overall size of 75mm x 45mm x 75mm, this circuit breaker fits efficiently in control panels. It is certified compliant with RoHS standards, supporting environmental safety.
The Eaton PKZM 0 series Motor Protection Circuit Breaker is ideal for industrial, manufacturing, HVAC, and automation sectors requiring reliable motor start and protection solutions.
Provides protection against motor overloads, phase failures, and short circuits. Phase-failure sensitivity enhances operational reliability. High breaking capacity of 150kA for superior circuit protection. Durable three-pole configuration suitable for diverse applications.
Easy IEC top-hat rail mounting with screw and push-in terminals. Rated for ambient temperatures between -25°C and 55°C. Compact dimensions: 75mm length, 45mm width, 75mm depth. IP20 rating for solid object protection. RoHS compliant ensuring environmental responsibility.
Manufactured in Germany for assured quality. Explore comprehensive motor protection solutions within the Eaton range on EnvMart to enhance your industrial automation and electrical safety systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this circuit breaker is 400mA.
It operates at a supply voltage of 690V.
This model features a three-pole configuration.
It has a high breaking capacity rated at 150kA.
The overall dimensions are 75mm in length, 45mm in width, and 75mm in depth.
This circuit breaker is rated for operation in ambient temperatures from -25°C to 55°C.
It features screw terminals on the feed side and push-in terminals on the output side for installation.
The IP rating is IP20, providing protection against solid objects larger than 12mm.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is manufactured in Germany.
It is suitable for industrial, manufacturing, HVAC, and automation sectors requiring motor protection solutions.
It provides protection against motor overloads, phase failures, and short circuits.
