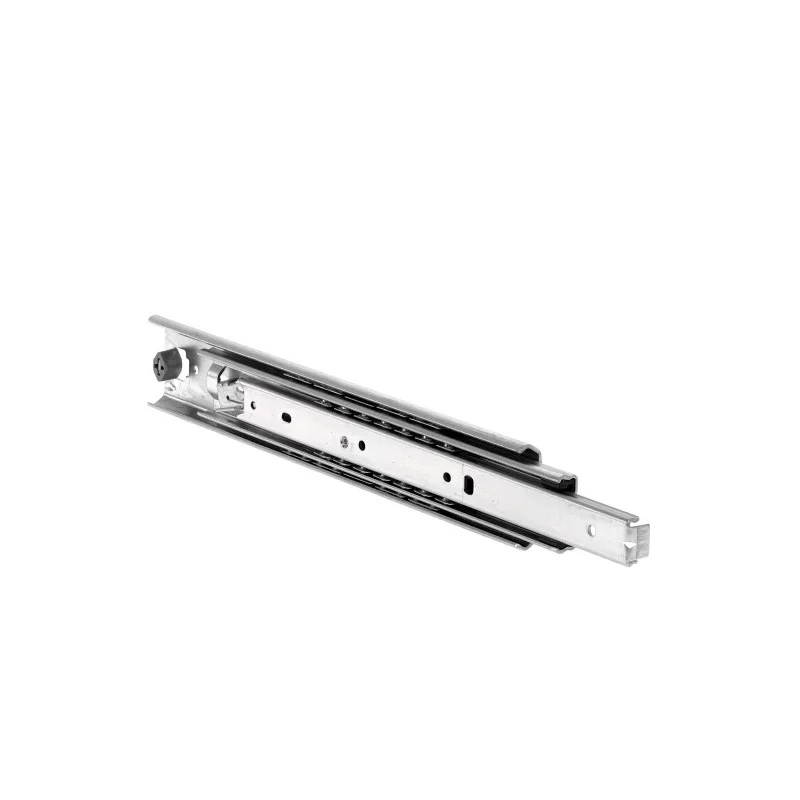

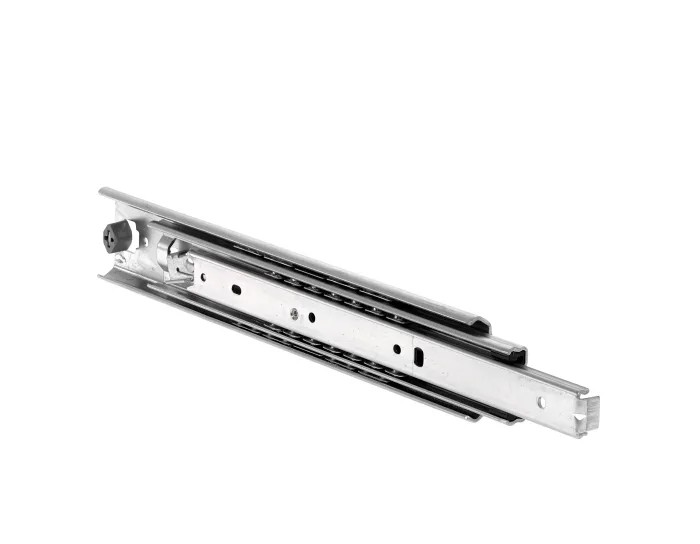

Accuride Rack Rail Telescopic Slide, Steel, 559 mm Depth, 110kg Max Load DZ3607-0022
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Accuride |
| Material | Steel |

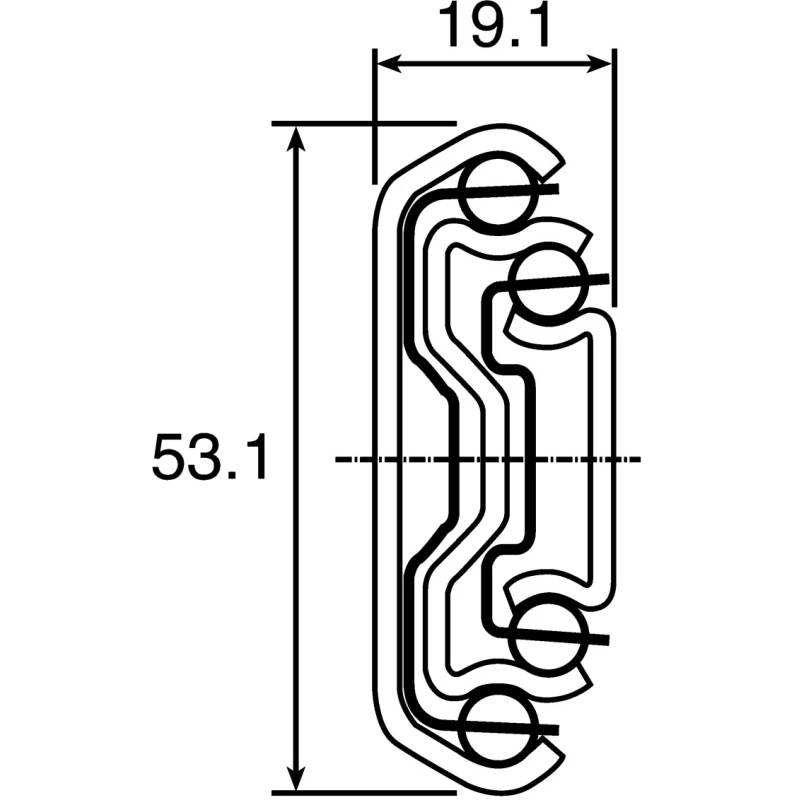

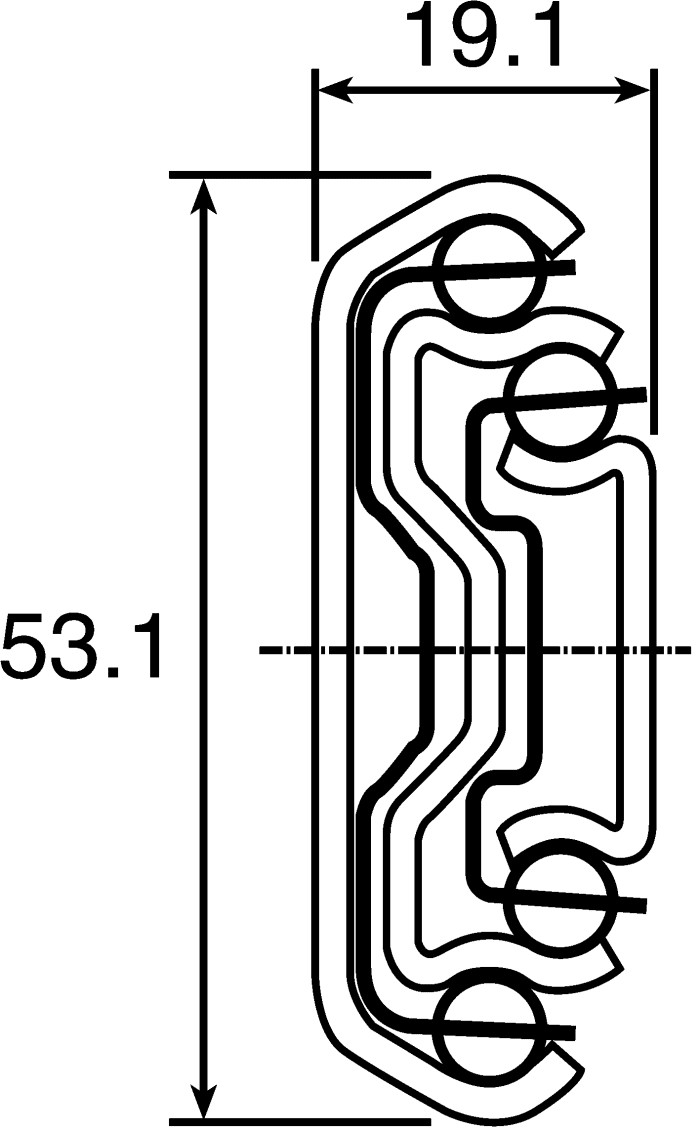

| Height | 53.1mm |
| Model | DZ3607-0022 |
| Depth | 559mm |
| Width | 19.1mm |
| Series | DZ3607 |
| Maximum Load | 110kg |
| Sub Type | Telescopic Slide |
| Closed Slide Length | 559mm |
| HD rack cabinet equipment slide,550mm LBrand | Accuride |
| Accuride Telescopic Slide, 610 mm Depth, 100kg Max LoadBrand | Accuride |
Key Features
- Constructed from strong steel with electro zinc plating and clear chromate finish for corrosion resistance.
- Precision high-performance bearings provide smooth sliding action and durability.
- Includes hold-in detent and lockout features for secure positioning and safety.
- Mounting brackets and fittings are supplied separately to allow flexible installation.
- Compatible with M4 cheese head screws recommended for secure fixing as per DIN 85 standards.
- Designed for use in electrical enclosures and rack mounting applications.
- Made in the United States, ensuring high-quality manufacturing standards.
- Closed slide length measures 559 mm, matching depth for installation precision.
Product Description
Accuride DZ3607-0022 rack rail telescopic slide is engineered for high performance in industrial and electrical enclosure applications. Featuring a strong steel construction measuring 559 mm in depth and designed to carry a maximum load of 110 kg, this slide offers durability and precision.
The slide is electro zinc plated with clear chromate treatment to resist corrosion, and equipped with precision high-performance bearings, enabling smooth and reliable sliding action under demanding operational conditions.
Key features include hold-in detent and lockout functionality for secure drawer positioning and enhanced safety during equipment access or maintenance. Mounting brackets and fittings are supplied separately, allowing for customizable installation. The recommended fastening method uses M4 cheese head screws conforming to DIN 85 standards for optimal stability.
The closed slide length is 559 mm, matching the depth dimension, facilitating precise integration into server racks and electrical cabinets. It is important to use all fitting positions to reach the stated maximum load; flat mounting reduces load capacity to approximately 25% and should be considered in the application design.
Manufactured in the United States, this telescopic slide is suitable for various industrial, automation, electrical, and server rack scenarios where strong, reliable sliding solutions are required.
Strong steel construction with corrosion-resistant finish. Precision bearings for smooth sliding action. Hold-in detent and lockout for safety and control. Separate mounting brackets and fittings for flexible installation.
Recommended M4 cheese head screw fixings per DIN 85. 559 mm closed slide length and depth for precise fit. Load capacity up to 110 kg with full mounting support. Made in the United States with high-quality standards. Designed for electrical enclosures and rack mounting applications.
Explore more industrial enclosure and Rack Rail components at EnvMart to find compatible hardware for your assembly and maintenance needs.
