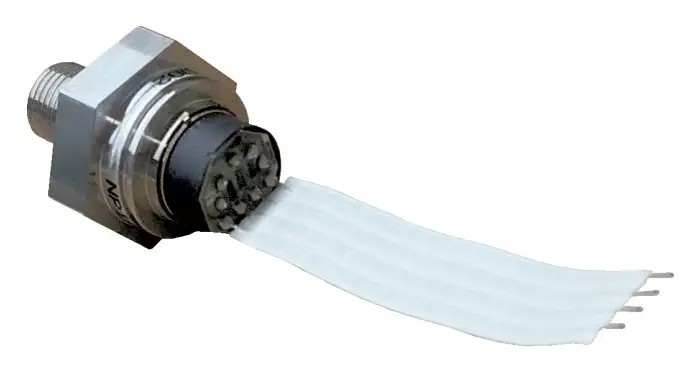

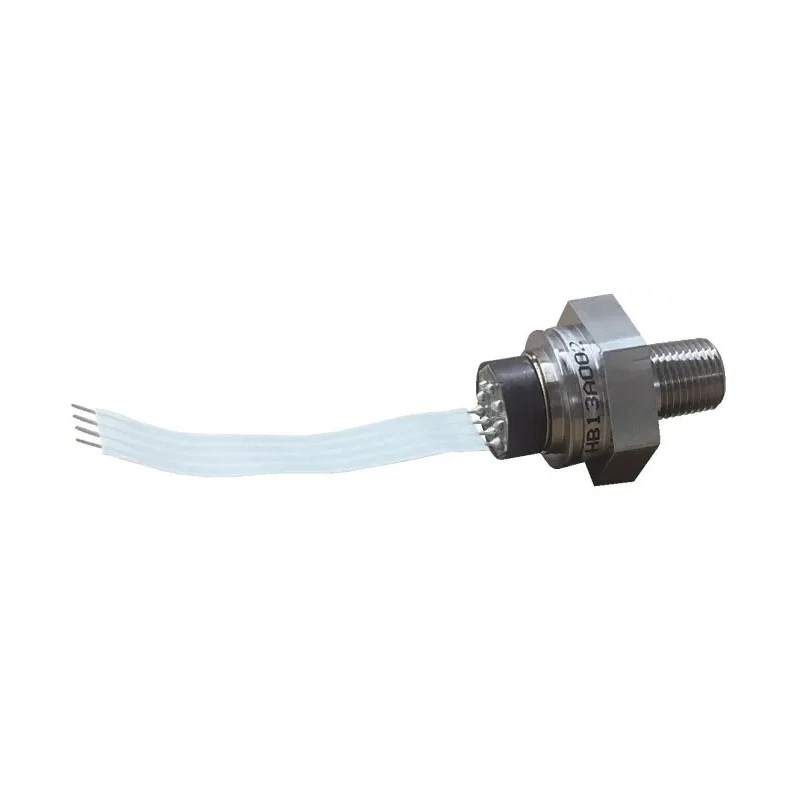

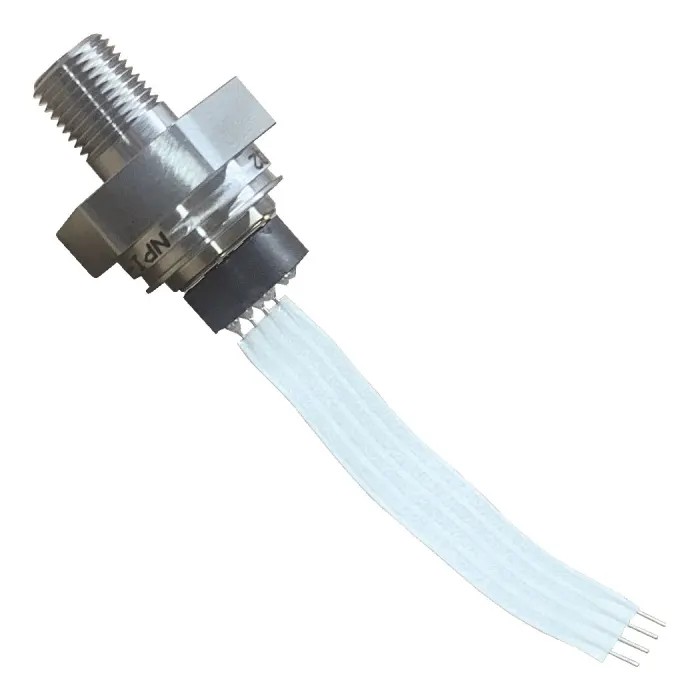

Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output 0psi to 300psi Gauge Reading NPI-19J-300G2

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output 0psi to 300psi Gauge Reading NPI-19J-300G2

Name: Amphenol Advanced Sensors NPI-19 Series Pressure Sensor Digital Output 0psi to 300psi Gauge Reading NPI-19J-300G2
Brand: Amphenol Advanced Sensors
SKU: 176560
Price: 118.37 USD
Availability: InStock



Category Pressure Sensor Brand Amphenol Advanced Sensors Condition New

Specifications

Country of Origin	China
Accuracy	±0.5 %
Brand	Amphenol Advanced Sensors
Model	NPI-19J-300G2
Housing Material	316L Stainless Steel
Output type	Digital
Series	NPI-19
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Maximum Pressure Measurement	300psi
Minimum Pressure Measurement	0psi
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.5V
Pressure Reading Type	Gauge
Media Measured	Gas, Liquid

Key Features

Operates with a supply voltage between 2.5V and 5.5V.
Constructed from durable 316L stainless steel housing.
Features high accuracy with ±0.5% typical span and ±0.25% FSO linearity.
Equipped with 14-bit I2C digital output for reliable communication.
Designed for operating temperatures from -40°C to 125°C.
Supports measurement of both gas and liquid media.
Includes threaded process fittings with 1/8 NPT -27 thread.
Employs SenStable® technology for excellent output stability.

Product Description

Amphenol Advanced Sensors NPI-19J-300G2 pressure sensor is engineered to deliver outstanding sensitivity, linearity, and hysteresis performance in demanding environments. This sensor utilizes advanced SenStable® processing technology, ensuring excellent output stability and long-term reliability.

Featuring a gauge pressure range from 0 psi to 300 psi, this device provides precise digital readouts via a 14-bit I2C interface, making it highly suitable for industrial automation, HVAC, hydraulic and pneumatic systems, and laboratory instrumentation.

The sensor is built with a rugged 316L stainless steel housing and includes threaded process fittings (1/8 NPT -27 thread) for easy installation. It operates reliably across a broad temperature range of -40°C to 125°C and is compatible with both gas and liquid media.

Key technical highlights include ±0.25% full-scale output linearity, ±1% total error band, and typical long-term stability of ±0.5% span per year. The sensor supports a supply voltage range from 2.5V to 5.5V and consumes a current rating of approximately 3 mA.

Additional ruggedness features include a 2 times overpressure rating and 3 times burst pressure tolerance, ensuring durability under challenging operating conditions. Operates with a supply voltage from 2.5V to 5.5V. Robust 316L stainless steel housing material.

Measurement range of 0 to 300 psi gauge pressure. Accurate digital 14-bit I2C output interface. Wide operating temperature range from -40°C to 125°C. Suitable for gas and liquid media measurement. Includes 1/8 NPT -27 threaded process fittings for installation.

Employs SenStable® technology for stable output. Overpressure rated at 2X and burst pressure rated at 3X.

This pressure sensor is an ideal choice for industrial, HVAC, laboratory, manufacturing, and water treatment applications where reliable and precise pressure measurement is critical. Explore the comprehensive range of Pressure Sensors and related equipment available at EnvMart for diverse industrial requirements.
