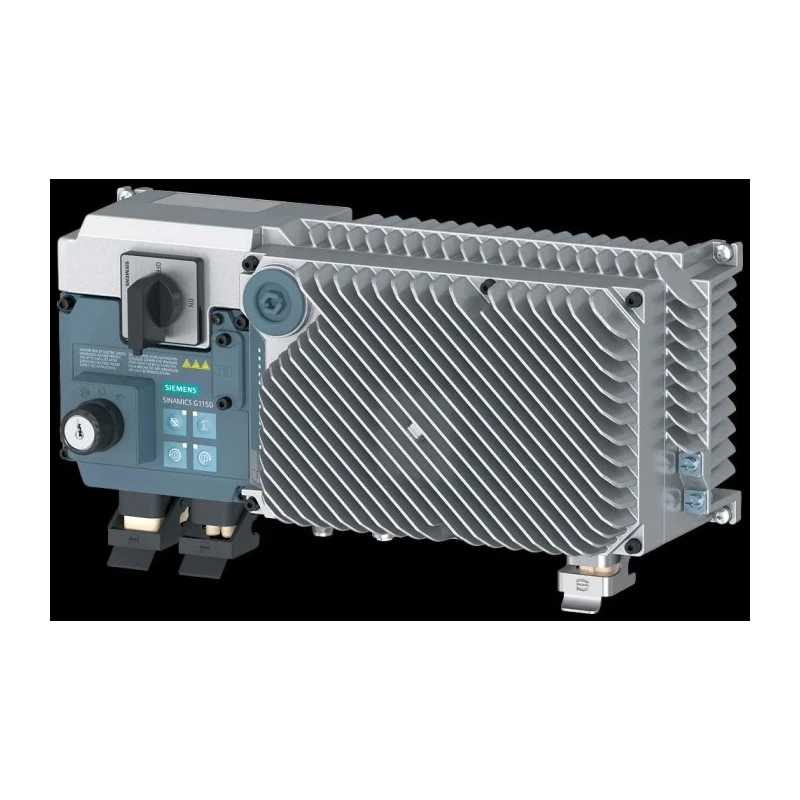

Siemens SINAMICS G115D Wall Mount Inverter Drive 380-480V 8.2A 6SL3520-1XL01-5AF0

Siemens 6SL3520-1XL01-5AF0 is a wall-mounted inverter drive from the SINAMICS G115D series engineered to provide robust power conversion solutions for industrial and manufacturing applications. Operating within a voltage supply range of 380 to 480 volts, it supports input current and produces voltage output, making it suitable for a wide variety of asynchronous and synchronous reluctance motors up to IE4 efficiency class.

This inverter drive is designed to be mounted on the wall, eliminating the requirement for a control cabinet, thereby reducing installation space and cooling demands. Its compact dimensions of 129 mm length, 380 mm width, and 156 mm height allow for flexible integration into machinery. The unit delivers a maximum high-level output current of 8.2 A, enabling reliable motor performance.

Engineered to operate in temperatures from 30°C to 55°C, the inverter drive ensures stability and longevity in demanding industrial environments. It meets several stringent safety and quality standards, including CATEGORY 3, EN 55011 electromagnetic compatibility, EN ISO 13849-1 Performance Level d, EN ISO 9001 quality management, and IEC 61508 SIL 2 functional safety standards.

The SINAMICS G115D series inverter drives are optimized for easy installation, wiring, and commissioning. They support a modular concept including converters, motors, and gearboxes, improving versatility and reducing setup time. The system supports synchronous reluctance and asynchronous motors, ensuring efficient drive solutions across different applications.

This product is manufactured in the United Kingdom and intended for industrial, manufacturing, automation, and processing applications where reliable and efficient motor control is essential. Its robust and versatile design fits well within industrial electrical and power supply systems.

Supports input current type with voltage output suitable for various motor types. Maximum high-level output current is 8.2 amperes for efficient operation. Operates within a supply voltage range of 380 to 480 volts. Designed for wall mounting to save cabinet space and improve installation ease.

Operating temperature ranges from 30 to 55 degrees Celsius ensuring durability. Compact dimensions of 129 mm length, 380 mm width, and 156 mm height. Conforms to international standards including CATEGORY 3, EN 55011, EN ISO 13849-1 PL d, EN ISO 9001, and IEC 61508 SIL 2.

Part of the SINAMICS G115D series with no automotive standard compliance. Explore more Inverter Drives and industrial automation systems at EnvMart to find solutions tailored to your specific application requirements.
