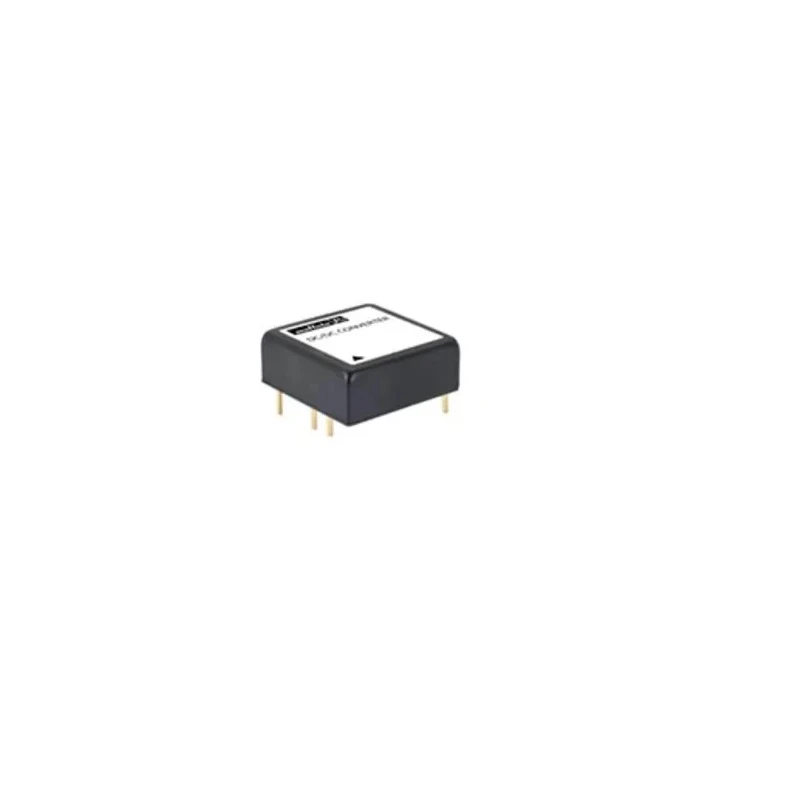

Murata Isolated DC-DC Converter, 5 V dc Output, 1.5 A Output Current, 24 V dc Max Input, 9 V Min Input, 15 W Output BPM15

Murata BPM15-050-Q12P-C is an isolated DC-DC converter designed to provide efficient and regulated DC power conversion for printed circuit board mounting applications. This product offers a 5 V dc output voltage with a maximum output current of 1.5 A, supporting input voltages ranging between 9 V and 24 V dc. With a maximum output power of 15 W, the converter's encapsulated metal package ensures rugged mechanical, thermal, and electrical performance ideal for high reliability in harsh environments.

The converter employs a high-efficiency flyback topology achieving an efficiency rating of 82.5%. It features a low ripple and noise level of 120 mV peak-to-peak, ensuring clean and stable power delivery. The device supports isolation voltages up to 1.6 kV dc, improving safety and reducing electromagnetic interference in sensitive applications.

Compact in size, the converter measures 1 inch in length, 1 inch in width, and has a depth of 0.4 inch, making it suitable for space-constrained electronic designs. It operates effectively within a temperature range of -40 °C to 85 °C, supporting demanding industrial environments.

The converter is certified to recognized standards including CAN/CSA-C22.2 No. 60950-1, EN60950-1, IEC60950-1, and UL-60950-1, ensuring compliance for worldwide electronic applications.

Typical applications include industrial automation, control systems, telecom equipment, medical devices, and power supply designs that require reliable, isolated DC-DC conversion with wide input voltage tolerance and low emission characteristics.

This product features an encapsulated shielded metal package that reduces radiated emissions. It delivers up to 15 watts of output power with built-in over-temperature shutdown protection. The isolation voltage of 1.6 kV dc delivers enhanced electrical isolation for sensitive circuits.

Its flyback topology provides high conversion efficiency at 82.5%. Designed for robust performance within extreme temperature ranges -40 °C to +85 °C. Offers dual outputs with a 4:1 input voltage ratio for versatile power configurations.

Contains low output ripple and noise of 120 mV peak-to-peak for clean power supply. Compact dimensions and light weight of 19.56 grams facilitate easy integration into devices. Certified to multiple international safety standards for global compliance.

Supported by Murata's reputation for quality and reliability, the BPM15-050-Q12P-C is ideal for electronic designers seeking a dependable isolated DC-DC supply solution. It is well suited for use in industrial, electronic component, telecom, and medical electronics applications.
