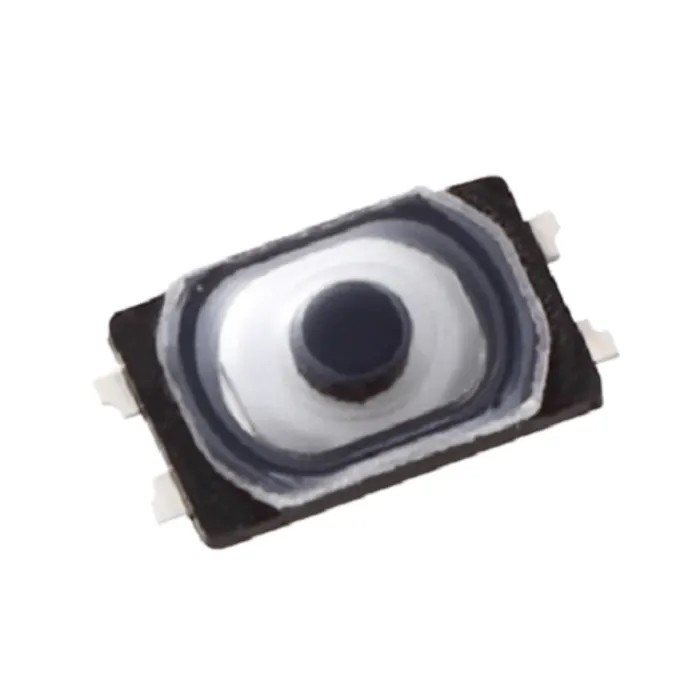

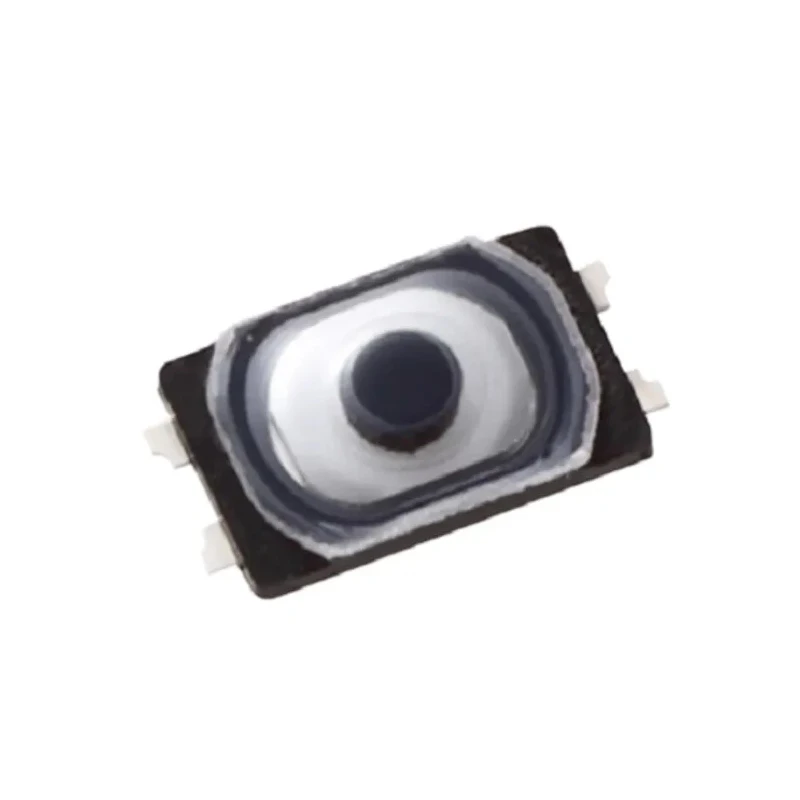

Panasonic Black Tactile Switch Push Plate Surface Mount SPST 20mA 0.7mm Actuator IP67

Panasonic EVPBB2A9E000 is a high-quality black tactile switch designed for surface mount applications, featuring a 0.7 mm push plate actuator for precise operation. This IP67 rated switch ensures robust resistance against dust and water ingress, making it ideal for use in demanding industrial and consumer electronics environments.

The switch operates in a SPST (single-pole single-throw) configuration and supports a switch contact current of up to 20mA, suitable for low current electronic control circuits. It uses a straight terminal type that facilitates straightforward PCB mounting and integration.

With a mechanical life expectancy of 500,000 cycles and an operating force of 1.6N, it provides excellent durability and tactile feedback. The maximum operating temperature of 85°C further extends its reliability in various thermal conditions. The tactile switch is especially suited for devices such as smartphones, wearable technology, and other compact electrical assemblies.

The compact height of only 0.53 mm allows slim design integration without compromising performance. Its push plate actuator style and straight orientation enhance user experience and operational comfort.

The switch features a black push plate actuator with a length of 0.7 mm. It has a single-pole single-throw (SPST) contact configuration with a rated current of 20mA. The tactile switch is surface mount type with straight terminal type for easy PCB installation.

High operating temperature tolerance up to 85°C ensures durability in various environments. IP67 ingress protection rating provides excellent dust and water resistance. Mechanical life is rated up to 500,000 cycles assuring long-term reliability.

Operating force is 1.6 N for precise and tactile feedback during use. Compact height of 0.53 mm for slim device assembly.

This tactile switch is essential for industrial applications, laboratory equipment, consumer electronics, and commercial electronic assembly lines that require reliable and compact switching solutions. For more offerings in Tactile Switches, please browse the Electronics & Electricals category at EnvMart.
