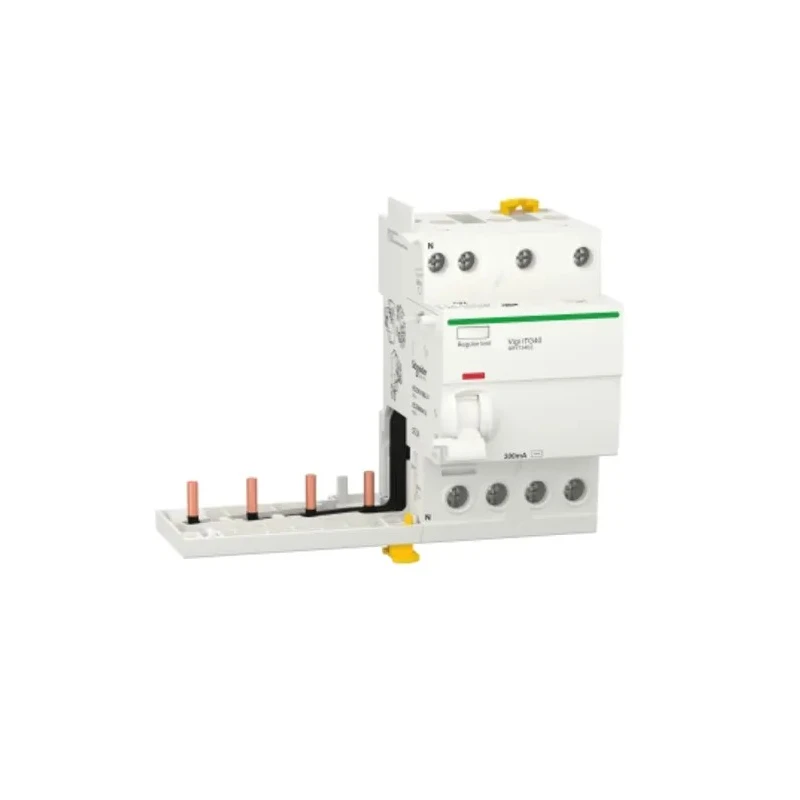

Schneider Electric Residual Current Circuit Breaker Series, 63A, 4-Pole, 300 mA Sensitivity, Type AC, 500A Breaking Acti9

Schneider Electric A9Y13463 Residual Current Circuit Breaker from the Acti9 Series is engineered for high-performance electrical protection with a current rating of 63A and 4-pole configuration. This device provides sensitive earth-leakage protection at 300 mA with an instantaneous break time, safeguarding people and equipment from possible electrical faults.

Featuring a toggle switch actuator with clear ON/OFF and trip status indication, it allows easy operation and maintenance. The breaker is designed for DIN rail mounting with compact dimensions of 85mm height, 74mm depth, and 36mm width, enabling space-efficient panel installation.

Built to meet EN/IEC 61008-2-1 standards, this residual current circuit breaker ensures compliance with international electrical safety norms. Its breaking capacity of 500A supports effective interruption of high fault currents, making it suitable for both industrial and residential use cases.

Additional features include a padlockable design for extra safety and a robust construction capable of enduring up to 20,000 electrical cycles. The device operates reliably within an ambient temperature range of -25°C to 70°C, and the earth leakage protection type is AC, tailored for alternating current environments.

Manufactured in Spain, the A9Y13463 model emphasizes quality and durability in circuit protection solutions. Applications span across industrial, residential, manufacturing, and commercial electrical systems where reliable residual current breaking is essential.

Instantaneous earth-leakage protection ensuring safety against leakage currents. Toggle switch actuator with ON/OFF and trip indicator. Compliant with EN/IEC 61008-2-1 standards for assured quality. Compact dimensions of 85mm height, 74mm depth, and 36mm width for DIN rail mounting.

Breaking capacity rated at 500A to handle high fault currents. Suitable for industrial and residential electrical protection applications. Padlockable design providing enhanced safety measures. Operates reliably in ambient temperatures ranging from -25°C to 70°C.

Electrical durability rated for up to 20,000 cycles. Manufactured in Spain ensuring high build quality and standards.

Choose Schneider Electric Acti9 Series Residual Current Circuit Breakers from EnvMart for certified, robust, and safe electrical protection solutions tailored to your industrial and residential needs.
