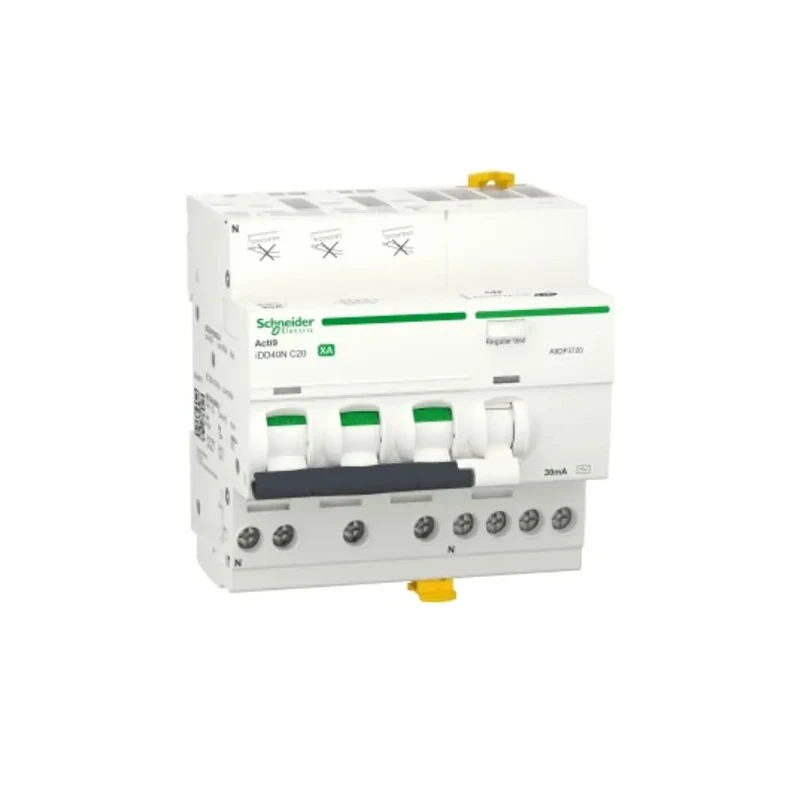

Schneider Electric Residual Current Circuit Breaker with Overload Protection 20A Current Rating 3-Pole 30mA Trip A9DP3720
Specifications
| Country of Origin | Spain |
|---|---|
| Range | Acti9 |
| Brand | Schneider Electric |
| Height | 93mm |
| Model | A9DP3720 |
| Depth | 73mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Current Rating | 20A |
| Series | ACTI9 iDD40N XA |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, EN/IEC 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | AC |
Key Features
- Features thermal magnetic tripping mechanism for reliable protection.
- Mounts easily on DIN rail for convenient installation.
- Equipped with toggle switch reset actuator type for user-friendly operation.
- Complies with RoHS and EN/IEC 60947-2 standards ensuring high quality.
- Designed for residential use and overcurrent protection in electrical distribution systems.
- Supports rated AC voltage of 400V and breaking capacity of 10kA for robust performance.
- Compact dimensions of 93mm height, 90mm width, and 73mm depth minimize panel space usage.
- Incorporates instantaneous earth-leakage protection with 30mA trip sensitivity.
Product Description
Schneider Electric A9DP3720 Residual Current Circuit Breaker with overload protection is engineered with thermal magnetic trip unit technology and instantaneous earth-leakage protection featuring a 30mA trip sensitivity, making it a reliable solution for residential and electrical distribution protection.
This 3-pole breaker has a current rating of 20A and supports a rated AC voltage of 400V. It provides robust circuit protection against short circuits and overload currents with a breaking capacity of 10kA.
Its toggle switch reset actuator allows easy ON/OFF operation and status indication via the trip indicator. The breaker mounts conveniently on standard DIN rails and features tunnel-type terminals for secure electrical connections.
The compact housing dimensions of 93mm height, 90mm width, and 73mm depth optimize installation space in electrical panels. Designed for ambient air temperature operation between -5 to 60 °C, it sustains electrical durability for up to 20000 cycles under typical usage conditions.
Certified to international standards including RoHS and EN/IEC 60947-2, this Schneider Electric Acti9 iDD40N XA series RCBO delivers high reliability and safety. The padlockable feature enhances operational safety by preventing unauthorized switching.
Features thermal magnetic tripping mechanism for reliable protection. Mounts easily on DIN rail for convenient installation. Equipped with toggle switch reset actuator type for user-friendly operation. Complies with RoHS and EN/IEC 60947-2 standards ensuring high quality.
Designed for residential use and overcurrent protection in electrical distribution systems. Supports rated AC voltage of 400V and breaking capacity of 10kA for robust performance. Compact dimensions of 93mm height, 90mm width, and 73mm depth minimize panel space usage.
Incorporates instantaneous earth-leakage protection with 30mA trip sensitivity. Padlockable design provides enhanced safety and security. Schneider Green premium classed product for environmental sustainability.
Suitable for industrial, residential, and commercial electrical installations, the A9DP3720 RCBO offers dependable overcurrent and earth leakage protection. This product is manufactured in Spain with Schneider Electric’s commitment to quality and environmental responsibility.
Explore more Schneider Electric circuit protection devices and accessories in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 20A.
It has a breaking capacity of 10kA.
This model features a thermal magnetic tripping mechanism.
The rated AC voltage for this circuit breaker is 400V.
It is a 3-pole circuit breaker.
The dimensions are 93mm in height, 90mm in width, and 73mm in depth.
It mounts conveniently on DIN rails.
The trip sensitivity is 30mA.
It complies with RoHS and EN/IEC 60947-2 standards.
It operates within an ambient air temperature range of -5 to 60 °C.
It features tunnel-type terminals for secure electrical connections.
This product is manufactured in Spain.
