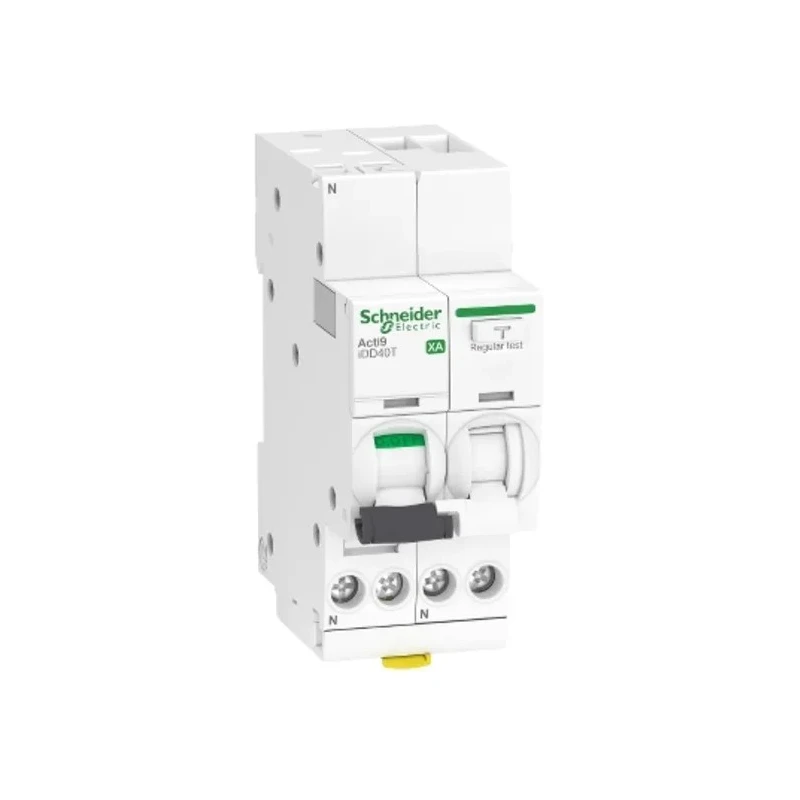

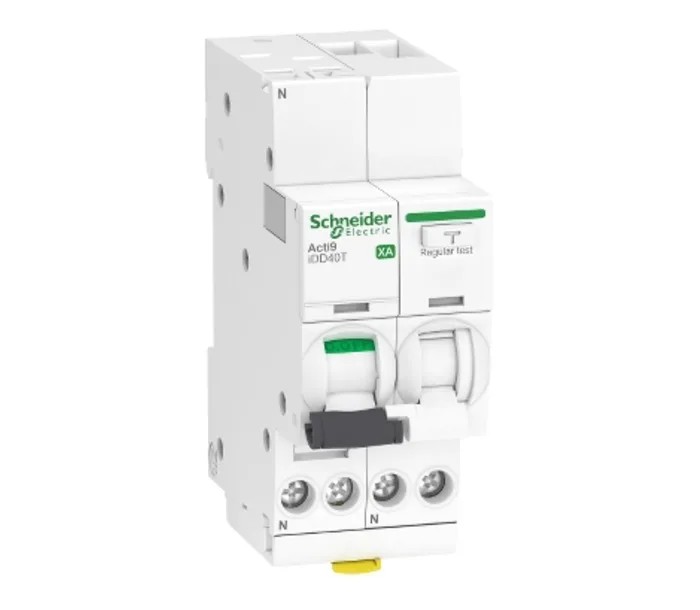

Schneider Electric Residual Current Circuit Breaker with Overload Protection 16A 1-Pole 300mA Trip A9DP6616

Schneider Electric A9DP6616 Residual Current Circuit Breaker with Overload Protection is engineered to provide high-quality, reliable protection for electrical circuits, combining earth leakage and overload protection in a compact 1-pole device rated for 16A current.

This circuit breaker employs advanced thermal magnetic trip unit technology that responds accurately to overloads and short-circuits, while its instantaneous earth-leakage protection with 300 mA trip sensitivity ensures safety against electric shocks and fire risks.

Designed for DIN Rail mounting, the device measures 85mm in height, 36mm in width, and 73mm in depth, making it compatible with standard electrical enclosures.

The toggle switch reset actuator is user-friendly, featuring ON/OFF and trip indicators to clearly communicate status. Rated at 6kA breaking capacity, this breaker is capable of interrupting high fault currents effectively.

Its compliance with rigorous industry standards such as EN/IEC 60947-2 and RoHS certifies its reliability and environmental compliance. The device operates at a rated voltage of 230V AC, with type C tripping characteristics suitable for general applications requiring moderate instantaneous trip levels.

The earth leakage protection type is AC, and the circuit breaker withstands impulse voltages up to 4 kV, increasing its durability under transient conditions. A padlockable feature allows securing the breaker to prevent accidental operation, enhancing safety in industrial and residential installations.

Ideal for electrical distribution and overcurrent protection in residential setups, this Schneider Electric ACTI9 iDD40T XA series RCBO supports ambient operating temperatures from -5 to 60 °C and maintains electrical durability of 20000 cycles.

Equipped with thermal-magnetic trip unit technology for precise overload protection. Mount type is DIN Rail, facilitating easy installation in electrical distribution panels. Features toggle switch reset actuator with ON/OFF and trip indicators for user convenience.

Breaking capacity rated at 6kA ensures effective circuit interruption during fault conditions. Complies with EN/IEC 60947-2 and RoHS standards, assuring quality and safety. Designed for use in residential and distribution applications.

Compact dimensions: height 85mm, width 36mm, depth 73mm. Rated for 230V AC voltage with type C tripping characteristics. Earth leakage protection type is AC with an impulse withstand voltage of 4 kV. Padlockable design adds an extra layer of electrical safety.
