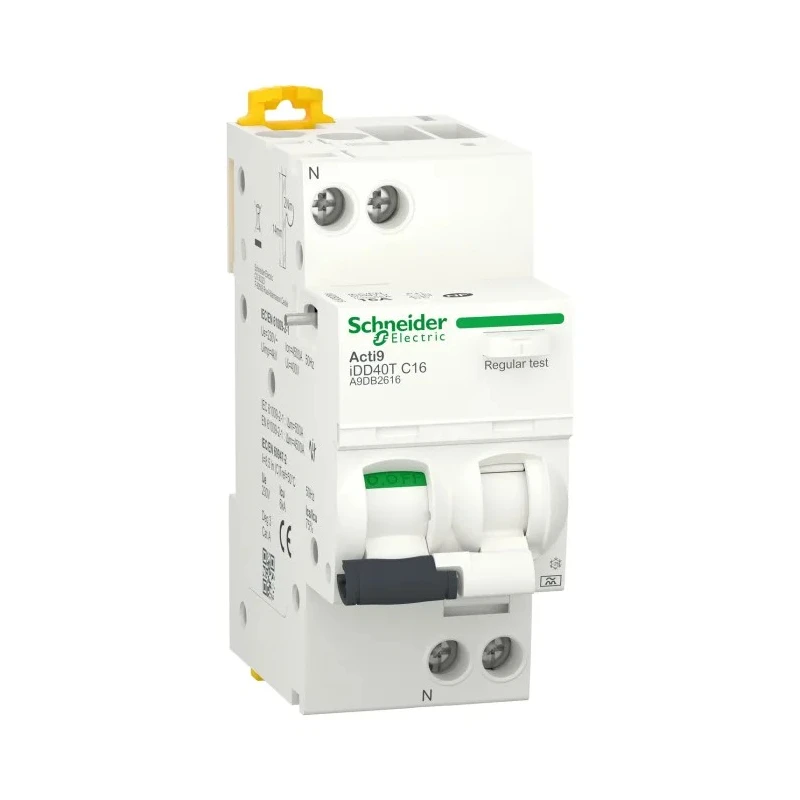

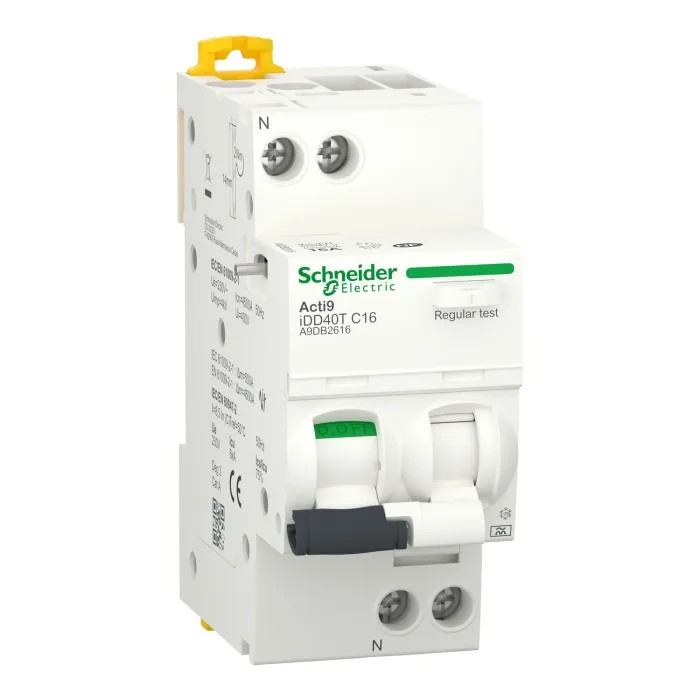

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 16A Current Rating, 230V AC, Type C A9DB2616

Schneider Electric A9DB2616 Residual Current Circuit Breaker with Overload Protection is a high-quality device designed for protection of electrical circuits against residual current faults and overload conditions. With a current rating of 16 amperes and trip sensitivity set to 30 mA, it effectively prevents electrical hazards by promptly disconnecting faulty circuits.

The device operates at a rated AC voltage of 230V and incorporates type C thermal magnetic tripping characteristics, allowing it to handle higher surge currents commonly found in industrial and residential installations. Its breaking capacity is rated at 4.5 kA, making it capable of interrupting substantial short circuit currents to protect the electrical system.

The circuit breaker features a single-pole design with a toggle switch for easy manual resetting. It supports clip-on mounting to standard DIN rails, facilitating installation and maintenance. Dimensions of 85mm height, 85mm width, and 73mm depth provide a compact form suitable for modern electrical panels.

Its earth leakage protection utilizes A-SI type technology, ensuring quick response to leakage currents and enhanced safety. The device complies with rigorous safety and quality standards including RoHS and EN/IEC 60947-2, confirming its reliability and environmental compliance.

This Schneider Electric RCBO is ideal for residential, commercial, and industrial applications where precise overcurrent and earth leakage protection are required. It is best suited for environments where reliable protection against electrical faults is essential, but it is not rated for outdoor use due to its IP20 protection rating.

Combines earth leakage and circuit overload protection for comprehensive safety. Type C tripping curve suitable for circuits with higher inrush currents. Compact and ergonomic design allows easy installation on DIN rails.

High breaking capacity protects against potential short circuit damage. Toggle switch actuator simplifies operation and circuit resetting. Meets international standards ensuring dependable performance. Manufactured in Spain, guaranteeing high-quality production standards.

Suitable for residential and industrial electrical distribution systems. Earth leakage protection type A-SI for sensitive fault detection. Operating temperature and humidity ranges support standard indoor installation conditions.
