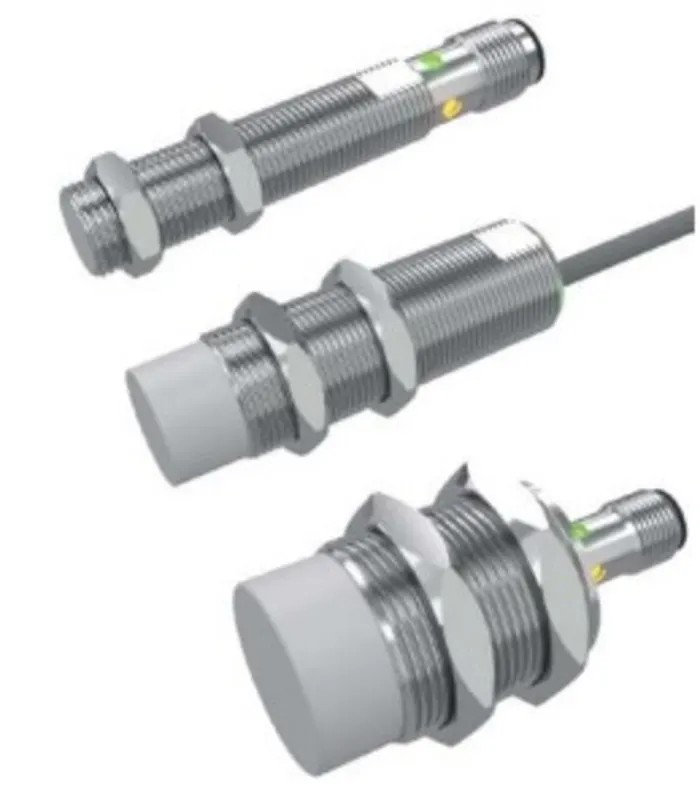

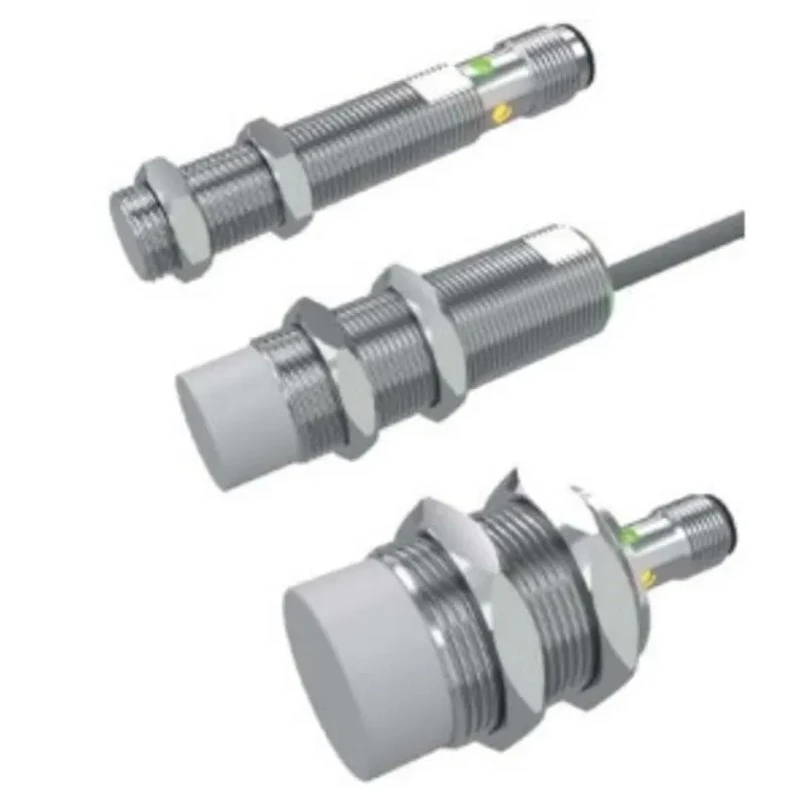

RS Pro Threaded Barrel Inductive Proximity Sensor M12 x 1 IO-Link 36V AC 8 mm Detection Range 36 V DC 200mA 237-7248

RS Pro 237-7248 Threaded Barrel Inductive Proximity Sensor M12 x 1 is a high-quality sensor designed for precise detection in industrial automation environments. It features a robust brass nickel-plated housing that withstands harsh conditions while providing reliable operation over a wide temperature range from -25°C to 70°C.

This sensor utilizes an electromagnetic field to detect metallic objects within an 8 mm range, making it suitable for applications such as manufacturing plants, process monitoring, and quality control where non-contact object detection is essential. The threaded barrel body style with M12 x 1 threading enables straightforward installation and flexible mounting options.

Equipped with IO-Link communication output, this sensor provides seamless integration for digital communication and enhanced data management in automated systems. Operating at a maximum supply voltage of 36V AC and DC, and with a switching current of 200mA, it supports high-frequency switching up to 2 kHz, ensuring timely response to detected changes.

The sensor offers IP67 protection class which guarantees dust-tight and water-resistant operation, making it ideal for demanding industrial applications. Its non-flush mount and unshielded design provide effective sensing capabilities for metallic targets without interference.

This product complies with recognized safety and quality standards including CE, CSA, cULus, IEC, and RoHS, attesting to its reliability and environmental safety. Originating from Lithuania, the sensor is built to meet rigorous international requirements.

Features a threaded barrel body style with M12 x 1 thread size for versatile mounting. Rated with IP67 ingress protection, ensuring resistance to dust and water. Operates at a maximum supply voltage of 36V AC and maximum DC voltage of 36V DC.

Utilizes IO-Link output type with a switching current of 200mA for precise communication. Constructed with brass nickel-plated housing for durability in industrial environments. Non-flush mount type suitable for applications requiring unshielded sensing.

Compact dimensions with a length of 50mm and width of 12mm for easy integration. Functionality maintained across operating temperatures from -25°C to 70°C. Supports a maximum switching frequency of up to 2 kHz for rapid detection cycles.

Complies with multiple standards including CE, CSA, cULus, IEC, and RoHS for quality assurance.

RS Pro Inductive Proximity Sensors are widely used across industrial, manufacturing, and laboratory environments to monitor object presence, thickness, and positioning without physical contact, thereby improving operational efficiency and product quality. Explore the extensive range of RS Pro sensors available at EnvMart for reliable automation solutions.
