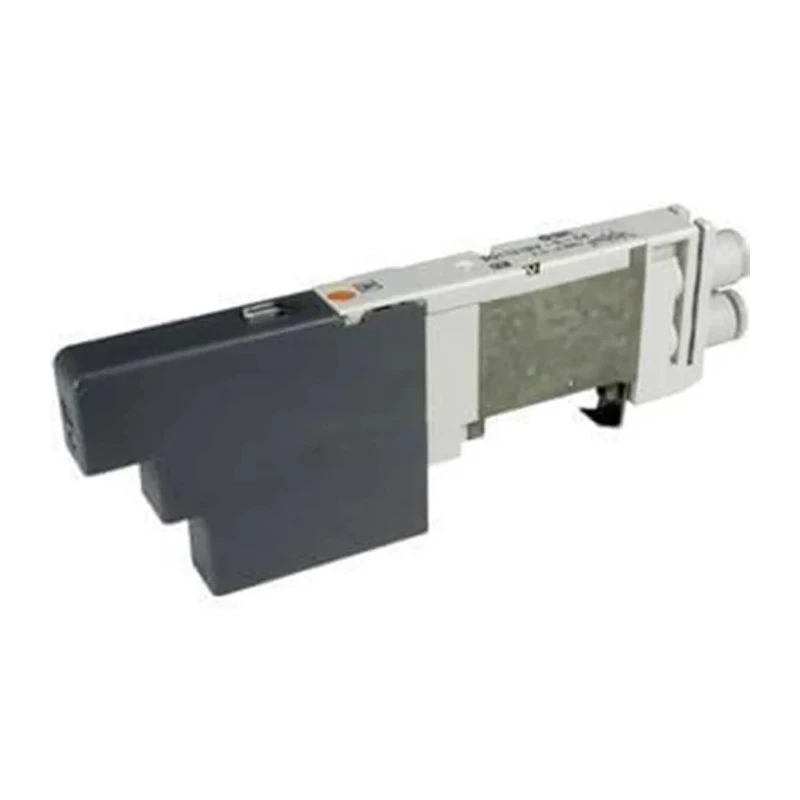

SMC Pneumatic Solenoid Valve 24V 0.4W 5-Port Die Cast Zinc Body DIN Rail Mount SQ1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 24V 0.4W 5-Port Die Cast Zinc Body DIN Rail Mount SQ1000



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	7 bar
Model	SQ1000
Mount Type	DIN Rail
Series	SQ1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	One-Touch Fitting 6 mm
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	RoHS
Electrical Connection Type	D-Sub Connector
Port Gender	Female
Solenoid Power Consumption	0.4W

Key Features

Features a 5-port design with one-touch fitting of 6 mm size.
Constructed with die cast zinc body material for durability.
Operates on 24V with low solenoid power consumption of 0.4W.
Sealed with rubber material ensuring reliable operation.
Mounts on DIN Rail for easy installation and maintenance.
Supports a maximum operating pressure of 7 bar.
Operating temperature range from -10°C to 50°C for varied environments.
Includes a D-Sub connector type electrical connection with 2 positions.

Product Description

SMC SQ1131N-5B1-C6-Q Pneumatic Solenoid Valve SQ1000 Series operates at 24V and consumes 0.4W in solenoid power, designed for industrial pneumatic control applications requiring precision and reliability. The valve features a 5-port configuration with female one-touch fittings sized at 6 mm, optimized for quick assembly and maintenance.

The valve body is constructed of sturdy die cast zinc ensuring mechanical robustness, while the seal employs rubber material suitable for tight sealing and durability. Designed to mount on standard DIN rails, this valve allows for easy modular expansion and replacement within pneumatic manifolds.

Operating pressure can reach up to 7 bar, and it tolerates temperatures from -10°C to 50°C, making it suitable for a wide range of industrial environments including factory automation, pneumatic tooling, and process control systems.

The valve’s solenoid actuation, combined with a D-Sub connector electrical interface featuring 2 positions, supports rapid response and efficient operation. Being RoHS compliant, this valve meets environmental safety standards by limiting hazardous substances.

The SQ1000 series features a cassette style valve and manifold design that facilitates easy scaling of station numbers on a DIN rail. Features a 5-port design with one-touch fitting of 6 mm size. Constructed with die cast zinc body material for durability.

Operates on 24V with low solenoid power consumption of 0.4W. Sealed with rubber material ensuring reliable operation. Mounts on DIN Rail for easy installation and maintenance. Supports a maximum operating pressure of 7 bar.

Operating temperature range from -10°C to 50°C for varied environments. Includes a D-Sub connector type electrical connection with 2 positions. Designed and manufactured in Japan to high quality standards. RoHS compliant ensuring reduced hazardous substances.

Ideal for industrial, laboratory, manufacturing, and automation system applications requiring precise pneumatic valve control. Explore more Pneumatic Solenoid Valves and industrial valves at EnvMart.
