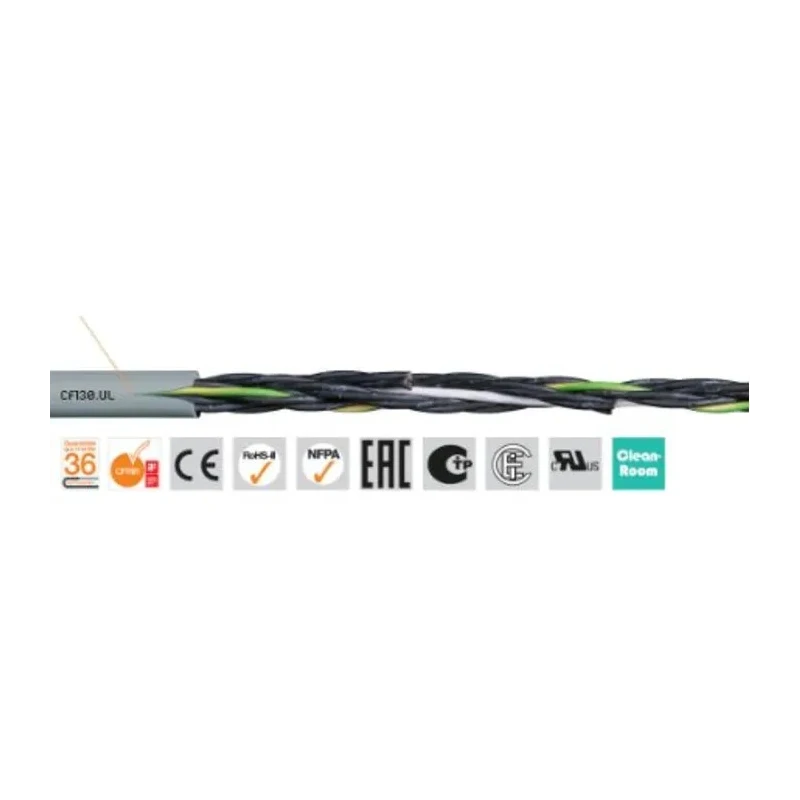

Igus Chainflex CF130.UL Control Cable, 12 Cores, 2.5mm² 13 AWG, Unscreened, 50 m, Grey Thermoplastic CF130.25.12.UL (50m)
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300, 500V |
| Brand | Igus |
| Model | CF130.25.12.UL (50m) |
| Cable Length | 50m |
| Series | Chainflex CF130.UL |
| Outside diameter | 17.5mm |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 12 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | EN, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 13AWG |
| Screened/Unscreened | Unscreened |
| Conductor Type | Stranded |
| Cable CSA | 2.5mm² |
Key Features
- The cable is rated for 300, 500V applications with a flexible stranded conductor design.
- It provides flame retardant protection and a small bend radius ideal for space-saving installation.
- The cable features a patented core bundled design ensuring long service life in dynamic and e-chain use.
- Operating temperature ranges from -15°C minimum to 70°C maximum for indoor and specific outdoor uses.
- The sheath material is abrasion-resistant and oil-resistant class 4, supporting harsh chemical environments.
- The cable is grey in color, unscreened, and not armoured.
- Conforms to EN and CE standards, flame retardant to IEC 60332-1-2, CEI 20-35, FT1, VW1.
- Manufactured in Germany and silicone-free according to PV 3.10.7 standards.
Product Description
Igus CF130.25.12.UL (50m) Chainflex CF130.UL Control Cable is a high-quality cable designed for medium duty industrial and automation applications requiring a reliable 12 core copper conductor. It features a 2.5mm² 13 AWG cross-section and a grey thermoplastic elastomer jacket that combines flexibility with high abrasion resistance and chemical protection.
Designed especially for dynamic cable carrier (e-chain) environments, the patented core bundle construction reduces bend radius and extends cable lifetime under continuous flexing. Rated for 300 and 500 volts, this control cable performs well indoors and in outdoor settings above freezing temperatures.
The cable's flame retardant properties confirm adherence to international safety standards including IEC 60332-1-2 and it is certified CE compliant. It is non-armoured, unscreened, and designed silicone-free to meet clean room requirements.
Operating temperature ranges from -15°C to 70°C, supporting applications in wood and stone processing, packaging lines, supply and handling systems, and precision adjustment equipment.
The olil-resistant class 4 thermoplastic elastomer sheath protects against bio-oils and aggressive chemicals, enhancing durability. The cable includes 12 stranded copper cores with a 2.5mm² cross-section for reliable electrical conduction.
Flexibility and abrasion resistance make it suitable for long travel use in automation and manufacturing. Manufactured in Germany under strict quality controls and tested in Igus's specialized laboratory facilities. The product carries a 36-month service guarantee based on extensive dynamic testing.
Useful for industrial, manufacturing, and automation sectors requiring robust control cable solutions. Explore the Control Cable category on EnvMart for more specialized cables and automation wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Igus Chainflex CF130.UL Control Cable is rated for 300 and 500 volts.
The maximum operating temperature for this control cable is 70°C.
This control cable features 12 cores.
The conductors in this cable have a cross-sectional area of 2.5mm², which is equivalent to 13 AWG.
The jacket material of this control cable is thermoplastic elastomer, which provides flexibility and abrasion resistance.
The outside diameter of the Igus Chainflex CF130.UL Control Cable is 17.5mm.
This model is unscreened, making it suitable for specific applications where shielding is not required.
The cable conforms to EN and CE standards, and it is flame retardant according to IEC 60332-1-2.
The minimum operating temperature is -15°C, while the maximum is 70°C.
This control cable is suitable for medium duty industrial and automation applications, including wood and stone processing, packaging lines, and precision adjustment equipment.
The Igus Chainflex CF130.UL Control Cable is manufactured in Germany under strict quality controls.
The conductors in this cable are made of copper, which ensures reliable electrical conduction.
