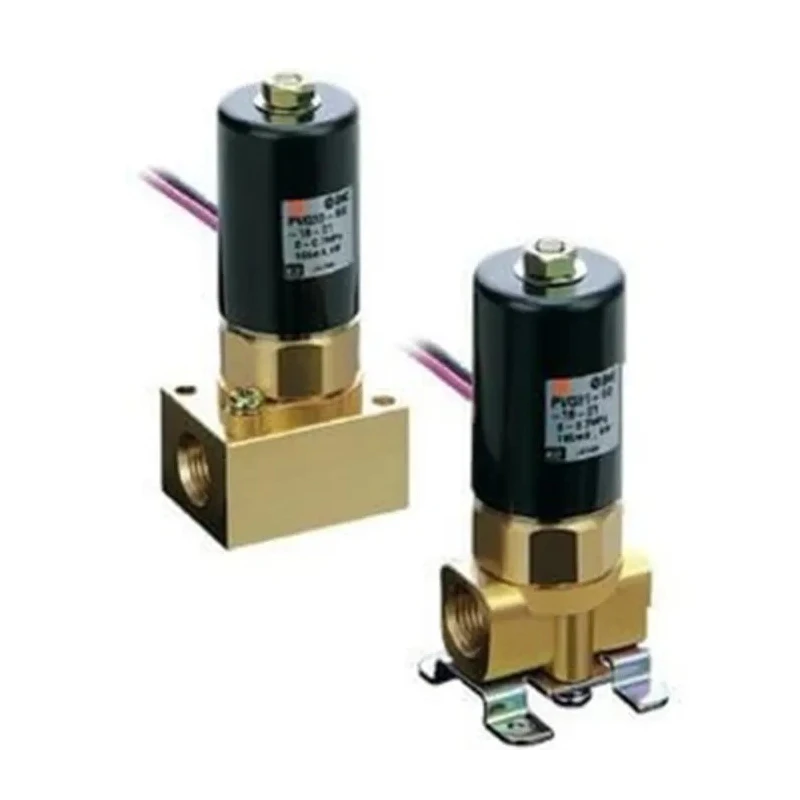

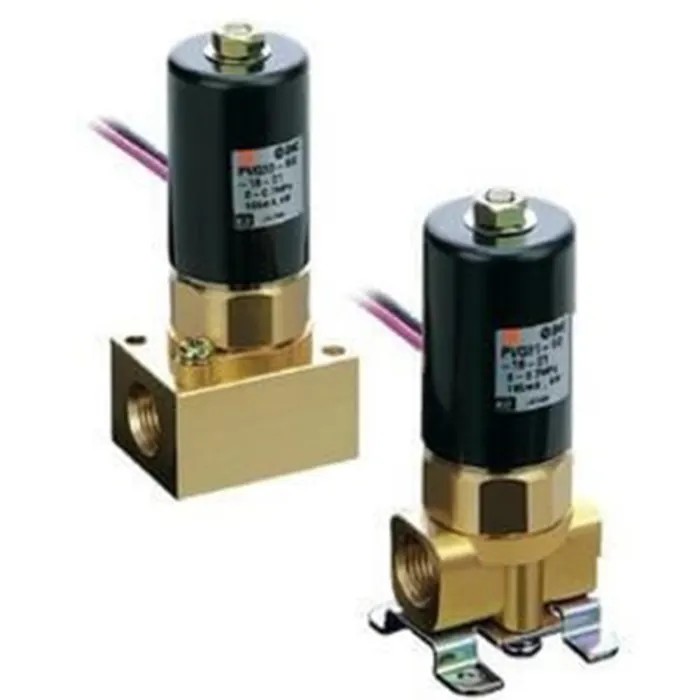

SMC Pneumatic Solenoid Valve Solenoid G PVQ Series 24V 3.96W, Rc 1/8 Port Size PVQ33-5G-16-H

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Solenoid G PVQ Series 24V 3.96W, Rc 1/8 Port Size PVQ33-5G-16-H



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	30mm
Length	49mm
Model	PVQ33-5G-16-H
Width	30mm
Mount Type	Base
Series	PVQ
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	O-Ring
Number of Positions	2
Port Size	Rc 1/8
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	75L/min
Standards/Approvals	RoHS
Connection Thread Standard	G
Mount Pattern	Base
Minimum Pilot Pressure	0.25bar
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	3.96W

Key Features

Designed with a direct operated poppet valve construction for enhanced durability.
Seal material is fluor elastomer (FKM) ensuring chemical resistance.
Body constructed from die cast zinc for robust performance.
Operates on 24V solenoid voltage with a power consumption of 3.96W.
Port size Rc 1/8 with O-ring port type and female port gender.
Maximum operating pressure of 0.7 bar and pilot pressure ranging between 0.25 to 0.7 bar.
Maximum flow rate of 75L/min suitable for various pneumatic applications.
Compact dimensions with height 30mm, width 30mm, and length 49mm for easy installation.

Product Description

The SMC PVQ33-5G-16-H Pneumatic Solenoid Valve from the PVQ Series is engineered by SMC with a compact, direct poppet valve construction that ensures minimal leakage when de-energized. It is dedicated to applications requiring precise flow control such as air blow systems, dental hand piece control, respiratory devices, and laser machinery cooling.

This valve features a 24V solenoid actuator consuming 3.96 watts and operates at a maximum pressure of 0.7 bar with pilot pressures between 0.25 and 0.7 bar. The port size is Rc 1/8 with O-ring sealing and a female port gender, allowing for reliable connection and sealing performance.

The valve body is made from die cast zinc, combining durability and resistance against industrial environmental factors. Fluorelastomer (FKM) seals provide excellent chemical resistance, ensuring long operational life.

Its compact dimensions of 30mm height, 30mm width, and 49mm length make it suitable for installations in restricted spaces. With two ports and two positions, the valve effectively manages pneumatic flow in various configurations.

SMC PVQ Series valves comply with RoHS standards, guaranteeing safer usage in environmentally sensitive applications. Manufactured in Japan, these valves offer high reliability and precision for professional industrial, laboratory, HVAC, manufacturing, and pneumatic tool applications.

Designed with a direct poppet valve construction to minimize leakage. Fluorelastomer seals ensure chemical resistance and durability. Die cast zinc body construction enhances robustness. Operates at 24V with 3.96W solenoid power consumption.

Port size Rc 1/8 with O-ring type and female port gender. Maximum pressure rating of 0.7 bar for pneumatic control. Compact size suitable for space-constrained installations. Two position, two port valve configuration. RoHS compliant and manufactured in Japan.

This pneumatic solenoid valve is ideal for industrial automation, fluid control systems, laboratory setups, HVAC controls, medical device manufacturing, and other precision flow control scenarios. Explore the broad range of pneumatic valves available to optimize your process through EnvMart.
