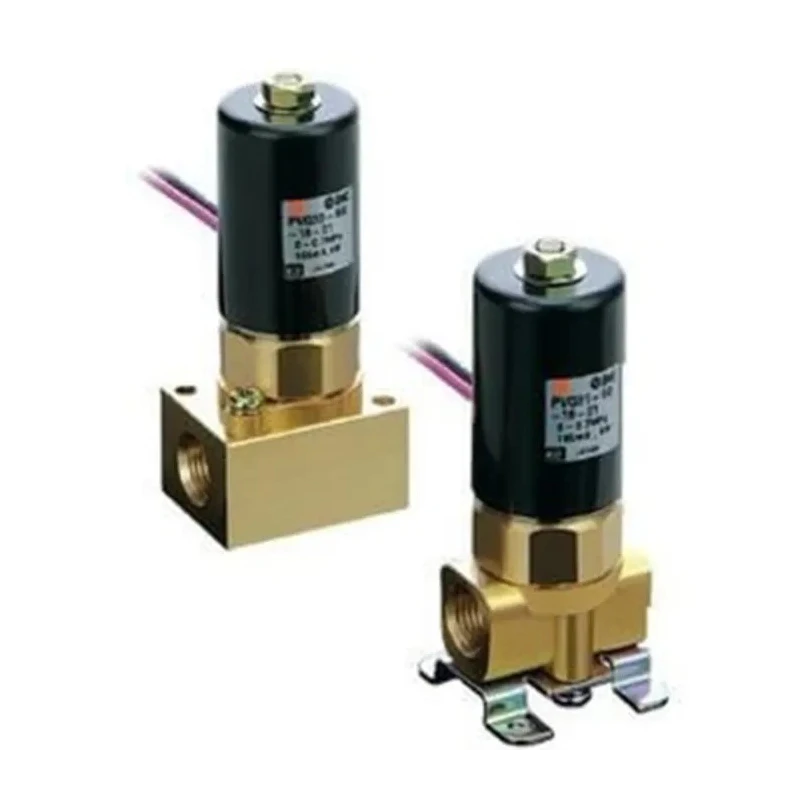

SMC Pneumatic Solenoid Valve Rc 1/8 O-Ring Thread G 24V Single Solenoid 3.96W Die Cast Zinc Body PVQ31-5G-16-01F-H

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Rc 1/8 O-Ring Thread G 24V Single Solenoid 3.96W Die Cast Zinc Body PVQ31-5G-16-01F-H



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 bar
Height	25mm
Length	61mm
Model	PVQ31-5G-16-01F-H
Width	25mm
Mount Type	Base
Series	PVQ
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	O-Ring
Number of Positions	2
Port Size	Rc 1/8
Seal Material	Fluorelastomer
Minimum Operating Temperature	0°C
Actuation Type	Solenoid
Maximum Flow Rate	100L/min
Standards/Approvals	RoHS
Connection Thread Standard	G
Mount Pattern	Base
Minimum Pilot Pressure	0.25bar
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	3.96W

Key Features

Compact proportional solenoid valve with Rc 1/8 port size and O-Ring sealing.
Die cast zinc body material ensures durability and corrosion resistance.
Maximum operating pressure of 0.7 bar and maximum flow rate of 100 L/min.
Operates reliably between 0°C and 50°C operating temperature range.
Designed for industrial pneumatic applications including air blow and flow control.
Base mount type with female port gender and compliance with RoHS standards.
Manufactured in Japan with two position control and single solenoid actuation.

Product Description

The SMC PVQ31-5G-16-01F-H pneumatic solenoid valve is a high-quality component designed for precise flow control in pneumatic systems. It features a direct poppet construction that minimizes leakage when the valve is de-energized, enhancing reliability and efficiency. This valve is operated by a single solenoid with a power consumption of 3.96W and operates on a 24V supply, making it suitable for various industrial environments.

Its Rc 1/8 port size with O-Ring seals and G-thread connection standard allow secure and leak-proof connections. The valve body is made from die cast zinc, which provides strength and corrosion resistance. It has a base mount pattern and female port gender, facilitating easy installation in diverse pneumatic systems.

The valve supports a maximum operating pressure of 0.7 bar and a maximum flow rate of 100 L/min, operating effectively within a temperature range of 0°C to 50°C. It is compliant with RoHS standards, ensuring environmental safety and material compliance.

This product is ideally suited for applications such as air blow, flow control, and precise control tasks in dental units, respiratory equipment, and laser machinery cooling systems. The valve’s compact dimensions - height and width of 25mm and a length of 61mm - make it convenient for integration into tight spaces.

Compact proportional solenoid valve with direct poppet construction for low leakage. Durable die cast zinc body material for long-lasting performance. 24V voltage with low power consumption of 3.96W for efficient operation.

Rc 1/8 ports with O-Ring seals and G-type threaded connection. Suitable for industrial pneumatic applications including air blow and cooling systems. Operates reliably in temperature range 0°C to 50°C with a max pressure of 0.7 bar.

Complies with RoHS environmental standards for safety. Compact dimensions facilitate installation in restricted spaces. Explore more Pneumatic Solenoid Valves and components in the Industrial Valves & Valve Fittings category on EnvMart for diverse industrial and manufacturing needs.
