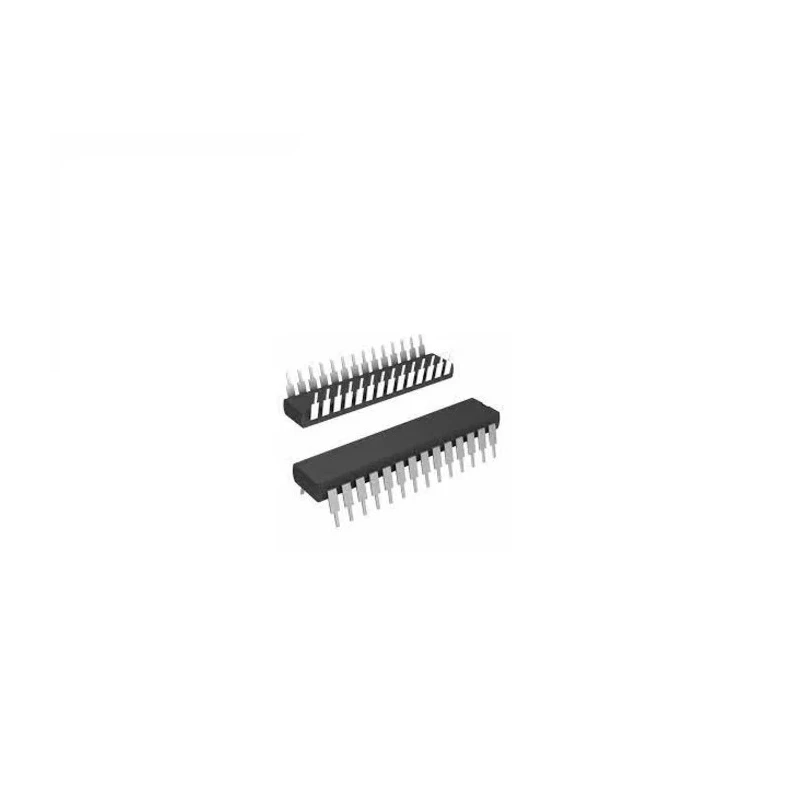

Microchip 8-bit PIC Microcontroller 32 MHz 28kB FLASH 28-Pin DIP PIC16F15356-I/SP

Microchip PIC16F15356-I/SP is a high-performance 8-bit PIC microcontroller designed for versatile general purpose and low power embedded applications. Operating at up to 32 MHz with a 28 kB FLASH memory size, this microcontroller supports efficient and optimized task execution, making it suitable for industrial, consumer electronics, and communication devices.

Featuring Microchip's eXtreme Low Power (XLP) technology, it offers extended battery life and reduced power consumption in portable and battery-powered systems. The device includes analog peripherals and core-independent peripherals alongside enhanced communication peripherals, enabling a wide range of system integration capabilities.

The microcontroller incorporates multiple PWM outputs and communication modules, facilitating motor control and serial communications. It includes Memory Access Partition (MAP) for memory security and Device Information Area (DIA) storing factory calibration values improving temperature sensor accuracy, enhancing reliability in precise measurements.

Its RISC-based CPU operates with a minimum instruction cycle of 125 ns and supports a 16-level deep hardware stack. The device includes two timers, a 16-bit Timer0/1, and a hardware limit timer (HLT) for precise and flexible timing applications. A single 5-bit DAC allows analog output functionalities, adding to its versatility.

The PIC16F15356-I/SP operates within a voltage range of 2.3 V to 5.5 V and supports up to 25 programmable digital inputs/outputs, making it adaptable to various electronic interface requirements. Its operating temperature range spans from -40°C to 85°C, ensuring robustness in harsh environments.

The microcontroller is ROHS3 and REACH compliant, meeting modern environmental and safety standards. It comes in a standard 28-pin DIP package with a width of 7.62 mm, facilitating easy prototyping and integration into through-hole PCB designs.

Utilizes eXtreme Low Power (XLP) technology suitable for battery-powered and portable applications. Includes advanced analog and communication peripherals for enhanced functionality. Memory features such as MAP and DIA improve data security and sensor accuracy.

RISC architecture enables efficient execution with a 125 ns instruction cycle. Multiple timers and hardware limit timer support precise timing operations. Ranges from -40°C to 85°C operating temperature for industrial use cases.

Complies with REACH and RoHS3 environmental standards. 28-Pin DIP package allows versatile mounting options and prototyping.

This microcontroller is ideal for industrial, automation, consumer electronics, and embedded system applications requiring compact size, low power consumption, and reliable performance. Explore more Microchip Microcontrollers and semiconductors on EnvMart for your next design project.
