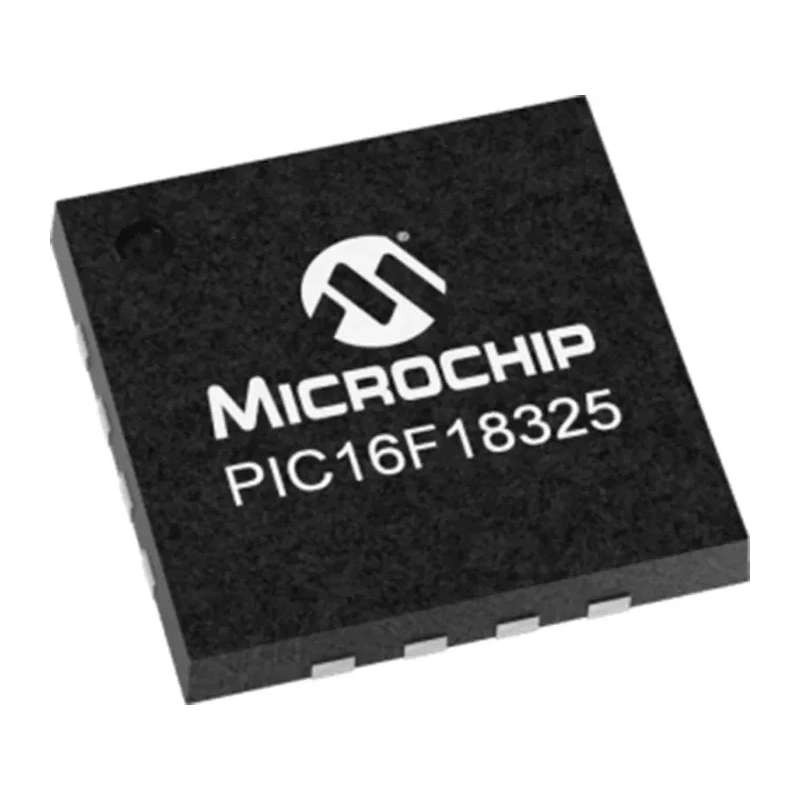

Microchip 8-bit PIC Microcontroller 32 MHz 14kB FLASH 16-Pin UQFN PIC16F18325
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.5mm |
| Length | 4mm |
| Model | PIC16F18325 |
| Width | 4mm |
| Mount Type | Surface |
| Series | PIC16F18325 |
| Maximum Operating Temperature | 85°C |
| Package Type | UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 12 |
| Analogue Comparators | 2 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates with a maximum clock frequency of 32 MHz for efficient processing.
- Includes 14kB of FLASH program memory for versatile application code storage.
- Equipped with 1kB RAM to support data processing and temporary storage.
- Supports 12 programmable input/output pins facilitating flexible hardware interfacing.
- Incorporates 11-channel 10-bit ADCs for precise analog-to-digital conversions.
- Designed with low power dissipation rated at 800mW ensuring energy efficiency.
- Supports multiple timers and PWM modules for complex timing and waveform generation.
- Designed to operate between -40°C to 85°C ensuring reliability in industrial conditions.
Product Description
Microchip PIC16F18325 8-bit PIC Microcontroller is a high-performance device designed for low power and versatile applications. Featuring a 32 MHz clock speed and 14kB of programmable FLASH memory, it efficiently supports control tasks in embedded systems.
This microcontroller includes 1kB RAM and a rich set of peripherals such as 12 programmable I/Os, 11 channels of 10-bit ADCs, 2 analog comparators, and a 5-bit DAC. It supports multiple timers and pulse width modulation modules, making it suitable for precise control and signal generation.
The device is housed in a compact 16-pin UQFN surface mount package measuring 4mm x 4mm x 0.5mm, enabling space-saving PCB designs. With a wide operating voltage range from 2.3V to 5.5V and maximum power dissipation of 800 mW, it is optimized for low power consumption applications.
Operational temperature ranges from -40°C to +85°C, supporting industrial and automotive use cases. The microcontroller complies with RoHS directives and meets the automotive AEC-Q100 qualification, ensuring suitability for demanding environment and reliability.
Operates at a maximum clock frequency of 32 MHz. Features 14kB FLASH program memory and 1kB RAM. Contains 12 programmable I/Os and 11 x 10-bit ADC channels. Includes 2 analog comparators and a 5-bit DAC. Equipped with multiple timers and PWM modules for versatile control.
Compact 16-pin UQFN package (4mm x 4mm x 0.5mm) for surface mounting. Operating voltage from 2.3V to 5.5V with 800 mW max power dissipation. Supports industrial temperature range of -40°C to +85°C. Compliant with RoHS and AEC-Q100 automotive standards.
This microcontroller is ideal for applications in automotive systems, industrial automation, consumer electronics, and general embedded control requiring low power, high integration, and reliable performance.
Explore more Microchip Microcontrollers and related semiconductor components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F18325 operates with a maximum clock frequency of 32 MHz.
It includes 14kB of FLASH program memory for versatile application code storage.
This microcontroller is designed to operate within a temperature range of -40°C to +85°C.
The device supports a supply voltage range from 2.3V to 5.5V with a maximum power dissipation of 800 mW.
It has 12 programmable input/output pins for flexible hardware interfacing.
This model incorporates 11 channels of 10-bit ADCs for precise analog-to-digital conversions.
The PIC16F18325 is housed in a 16-pin UQFN package, measuring 4mm x 4mm x 0.5mm.
Yes, it complies with RoHS directives and meets the automotive AEC-Q100 qualification.
It includes 2 analog comparators, a 5-bit DAC, multiple timers, and PWM modules for versatile control.
This model is equipped with 1kB of RAM to support data processing and temporary storage.
The PIC16F18325 utilizes a RISC instruction set architecture.
It supports 2 timers for various timing applications.
