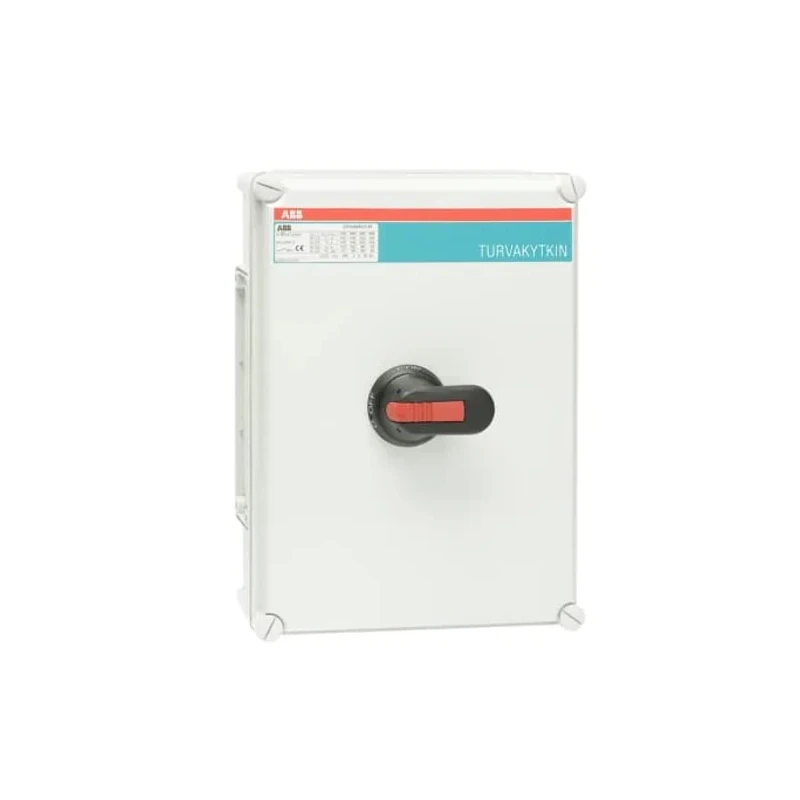

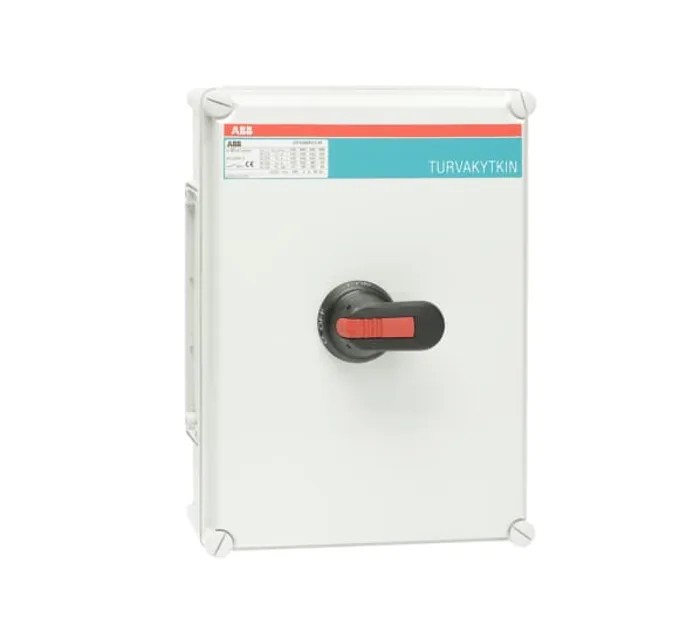

ABB 3-Pole Screw Non-Fused Switch Disconnector 63A 1SCA133822R1001

ABB 1SCA133822R1001 3-Pole Screw Non-Fused Switch Disconnector is engineered for industrial and commercial electrical applications, providing safe and reliable isolation of electrical circuits up to 63A. The switch disconnector belongs to the OS series and utilizes a rigid glass reinforced polycarbonate enclosure that offers excellent UV protection and resistance against low-pressure water jets, conforming to an IP65 rating. This construction ensures durability in both outdoor and indoor environments.

This device features a screw mounting type for secure installation. The cable entries are knock out types designed for II-flanges, allowing easy cable insertion from both the top and bottom, facilitating versatile wiring configurations. The black pistol handle is ergonomically designed and padlockable with provisions to accommodate three padlocks, enhancing safety by preventing unauthorized operation. The cover is interlocked but the interlocking mechanism can be overridden if necessary. PE terminals are included to ensure proper grounding and safety.

The switch disconnector supports auxiliary contacts, enabling additional control and signaling functionalities. It is compliant with international standards and certifications including CE, EAC, DNV GL, IEC 60947-3, CCC, RoHS, and REACH, confirming its quality and environmental adherence. The unit is suitable for environments with pollution degree 3, indicating its capacity to perform reliably in moderately harsh environments.

Its compact size with dimensions of 280mm width, 130mm length, and 130mm depth allows for ease of integration into existing electrical systems without requiring excessive space. This product is made in Finland, reflecting high manufacturing standards and quality assurance.

Ideal for use in electrical automation, industrial control panels, and commercial electrical installations, the ABB 1SCA133822R1001 switch disconnector ensures a reliable and safe solution for circuit isolation needs.

Browse more in the Switch Disconnector category for compatible accessories and complementary products from ABB and other leading brands at EnvMart. This Switch Disconnector features three poles for reliable electrical isolation.

The rigid glass reinforced polycarbonate enclosure is UV protected and rated IP65 for indoor and outdoor use. Cable entries are knock out types suitable for II flanges allowing insertion from top and bottom. The handle is padlockable with three padlock provisions and has a cover with interlock that can be defeated.

Includes PE terminals and supports auxiliary contacts for enhanced control. Complies with CE, EAC, DNV GL, IEC 60947-3, CCC, RoHS, and REACH standards and approvals. Designed for pollution degree 3 environments ensuring robustness.

Compact dimensions of 280mm width, 130mm length, and 130mm depth allow versatile installation. Discover the full range of ABB electrical products and industrial switches for your applications on EnvMart.
