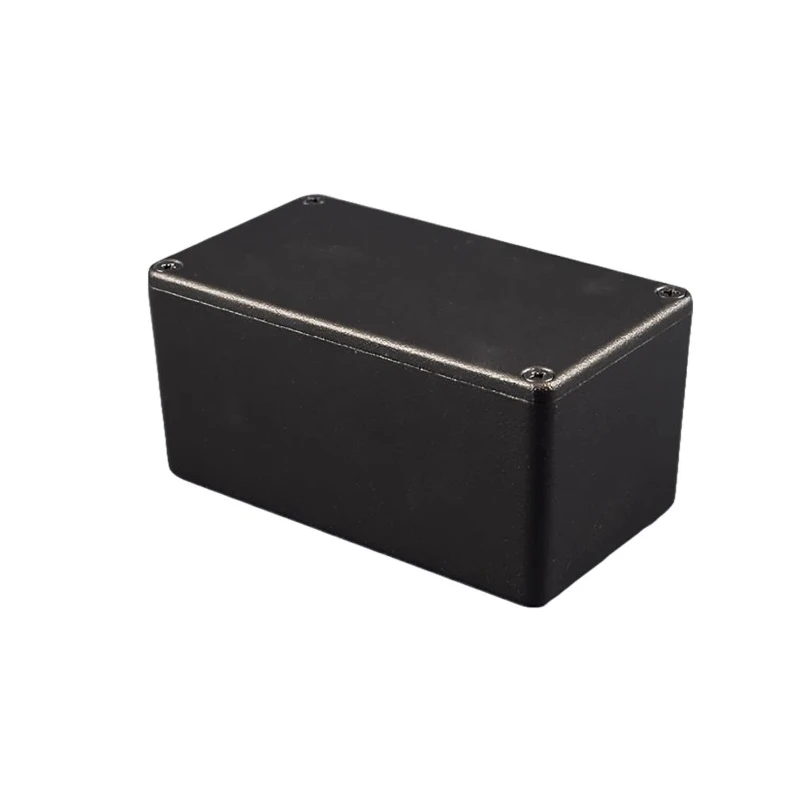

Hammond 1550 Series Black, Natural Aluminium Die Cast Enclosure IP66, IK08, 51.1 mm x 222 mm x 146.1 mm IP66

Hammond IP66 Black, Natural Aluminium Die Cast Enclosure 1550 Series is a rugged, watertight enclosure designed to protect electronic instruments and industrial components from harsh environments. Constructed from a tough die cast aluminium alloy, this enclosure offers both durability and ease of machining, ensuring adaptability in various applications.

The enclosure is available in two finishes: a natural vibrant finish providing a smooth surface with no sharp edges, and a black satin polyester powder paint offering a textured, durable surface that withstands machining and usage. Both finishes include black screws that maintain the professional appearance once assembled.

Featuring a lap joint construction, the enclosure safeguards against dust and splash water ingress, rated at IP66, and provides improved EMI/RFI shielding when water-tight gaskets are not installed. The IK08 rating certifies its protection against mechanical impacts, making it suitable for demanding industrial environments.

The lid is secured with M3.5 x 0.6 x 12 mm stainless steel Philips head machine screws that tap into factory threaded holes, ensuring a firm and reliable seal. The gasket combines ethyl vinyl acetate and silicone materials to enhance sealing performance against environmental ingress.

Compliant with RoHS and REACH standards, the enclosure meets environmental and safety regulatory requirements, making it environmentally sound for commercial and industrial use. Its compact external dimensions of 51.1 mm height, 222 mm length, and 146.1 mm width facilitate installation in space-constrained environments.

Constructed from rugged die cast aluminium alloy for durability and machining ease. Available in natural vibrant finish or black polyester powder coating. Lap joint design protects against dust and water ingress with IP66 rating.

Includes stainless steel Philips head machine screws for secure lid attachment. Employs ethyl vinyl acetate and silicone gasket materials for sealing. Complies with RoHS and REACH directives for environmental safety. IK08 rating provides impact protection against mechanical shocks.

Compact dimensions support versatile industrial and instrumentation applications. Color options include unshielded black and natural aluminium finishes. Manufactured in Taiwan, Province Of China, ensuring quality control.

This enclosure is ideal for industrial automation, electronics housing, control panel protection, and instrumentation needs in construction, manufacturing, and HVAC systems. Its robust features and certifications make it a dependable choice for protecting sensitive components from environmental hazards.
