Nuvotem Talema 230 V ac Dual Primary PCB Mount Toroidal Transformer 2 x 9 V ac 178mA 3.2 VA 70011K

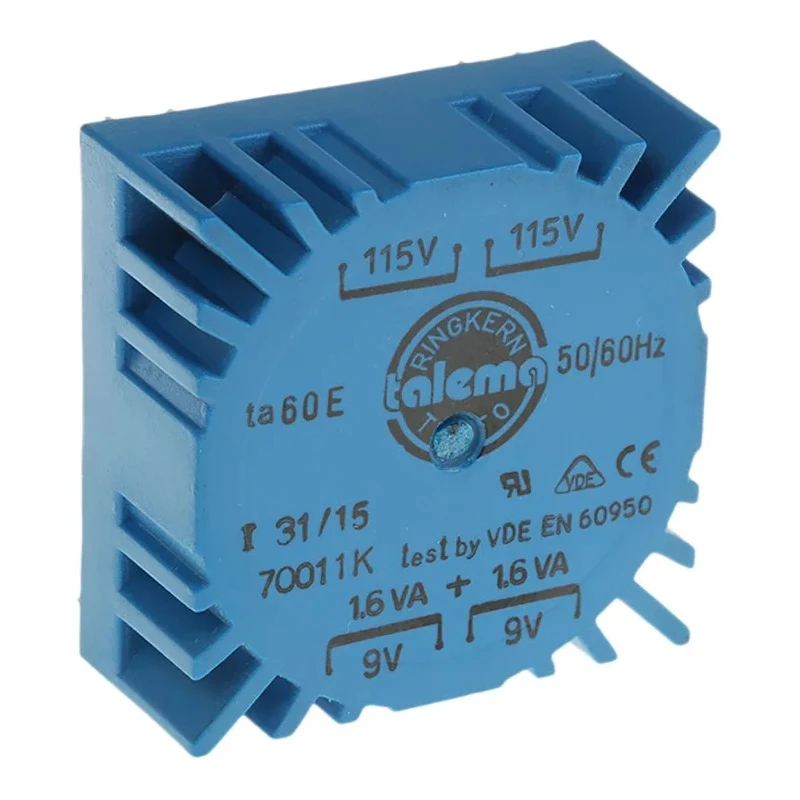

Nuvotem Talema 70011K is a miniature encapsulated PCB mount Toroidal Transformer designed for reliable power conversion in commercial and industrial electronic equipment.

This transformer features dual primary windings rated at 115/230 V ac, which can be configured in series or parallel for versatile power supply applications. The secondary output consists of two 9 V ac windings delivering a combined 3.2 VA power capacity at 178 mA current.

The encapsulated toroidal design offers a compact low profile form factor with minimal radiated magnetic fields, making it suitable for sensitive electronics and noise-critical environments. The unit is potted and fully encapsulated to UL94-V0 safety standards, providing high insulation and mechanical robustness.

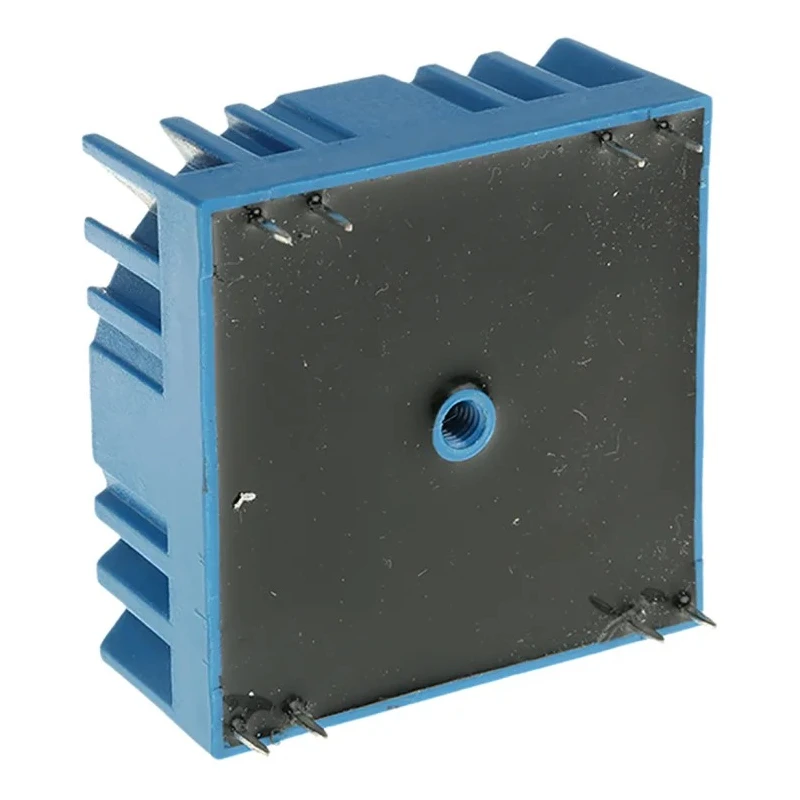

Mounting is simplified with an M4 central bush fixing and pin terminations for PCB assembly. With a maximum operating temperature of 60°C and frequency range from 50 Hz to 60 Hz, this transformer ensures stable performance under varying electrical conditions.

The construction includes dual primary windings for split voltage operation and meets UL and IEC approvals, ensuring compliance with international safety and quality standards for transformer components.

This model is ideal for applications in power supplies, electronic component isolation, and low noise transformer requirements in industrial, laboratory, HVAC, manufacturing, and commercial electronics sectors.

Operates at 230 V ac primary voltage with dual primary winding configuration. Secondary voltage is 2 x 9 V ac with a current rating of 178 mA. Power capacity of 3.2 VA with potted toroidal center construction for low magnetic interference.

PCB mount type with pin termination and M4 central mounting bush. Low noise, high efficiency, and encapsulated to UL94-V0 standard. Maximum operating temperature of 60°C and frequency support from 50 Hz to 60 Hz. Approvals include UL and IEC meeting international safety standards.

Package does not include fixing screws. Explore more transformers and electrical components at EnvMart, your trusted industrial partner.
