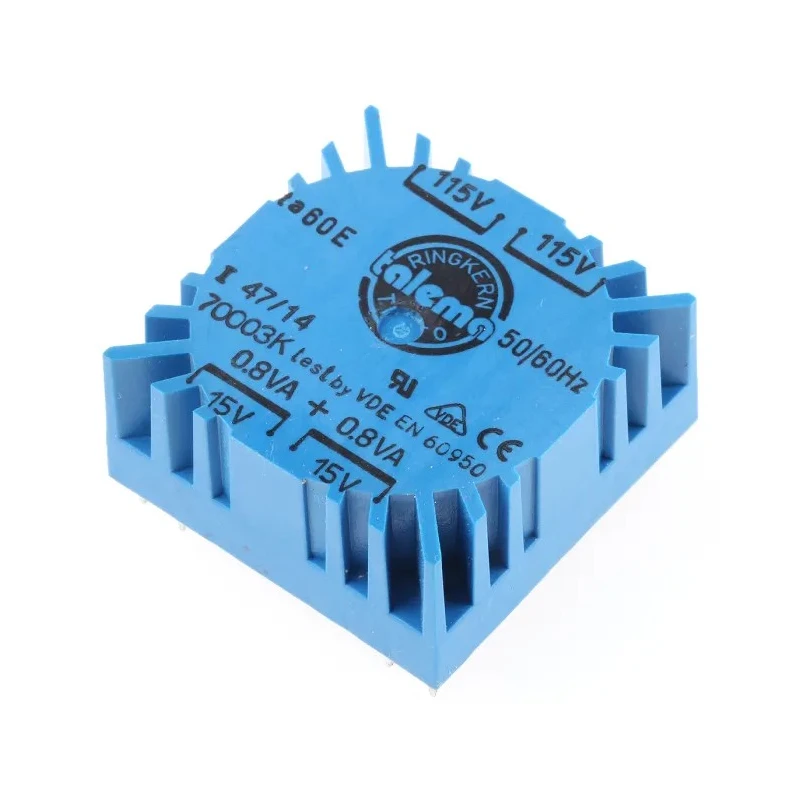

Nuvotem Talema 230 V ac 2 x 15 V ac Toroidal Transformer 2 Output 1.6 VA 70003K

Nuvotem Talema 70003K Toroidal Transformer 2 Output 1.6 VA operates on 230 V ac primary voltage and provides dual 15 V ac secondary voltages with a current capability of 53mA. This miniature encapsulated PCB mount transformer features twin 115 V ac 50/60Hz primary windings that can be connected in series or parallel depending on supply voltage requirements.

The transformer is fully encapsulated with a UL94-V0 rated enclosure, ensuring excellent protection and electrical safety. It exhibits extremely low levels of radiated magnetic fields, with minimal hum and noise, promoting clean signal integrity in sensitive electronic circuits.

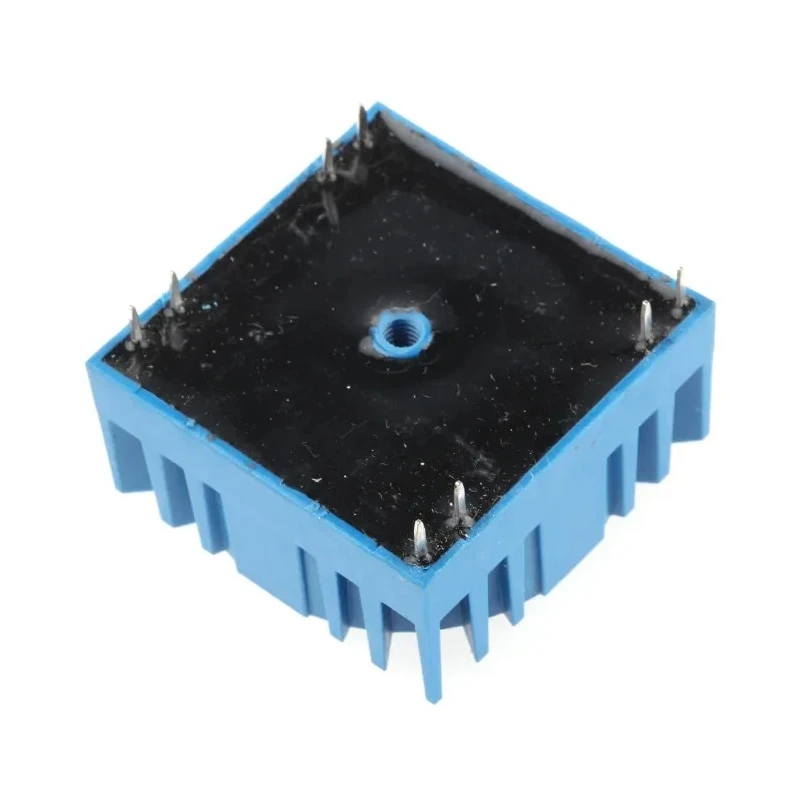

The low profile and compact design make this model suitable for use where limited space is available. The potted toroidal centre enhances reliability and protection against environmental factors. Mounting is facilitated by an M4 central bush, and termination is via pins allowing easy PCB installation.

Designed to operate efficiently within a 50 to 60 Hz frequency range and withstand temperatures up to 60°C, this transformer delivers high efficiency and low temperature rise, making it suitable for extended operation in industrial, laboratory, and commercial equipment.

These transformers comply with multiple safety standards, including UL and IEC, ensuring their suitability for broad application in electronic components, power supplies, and other electrical systems requiring dependable voltage transformation.

Dual 115 V ac primary windings configurable for 115 V or 230 V supply. 2 x 15 V ac secondary outputs providing 53mA current. Potted toroid centre for enhanced durability and protection. Fully encapsulated UL94-V0 rated enclosure for safety.

Low magnetic interference with minimal noise and hum. Compact and lightweight design for constrained spaces. Pin termination and M4 central bush mounting for easy PCB installation. Rated for operation at 50-60 Hz and maximum 60°C temperature.

UL and IEC certified for quality and safety compliance.

This transformer is an ideal solution for designers and engineers requiring high efficiency and low interference voltage regulation within industrial, electronic, manufacturing, HVAC, and commercial applications. Explore more products in the Toroidal Transformer category on EnvMart.
