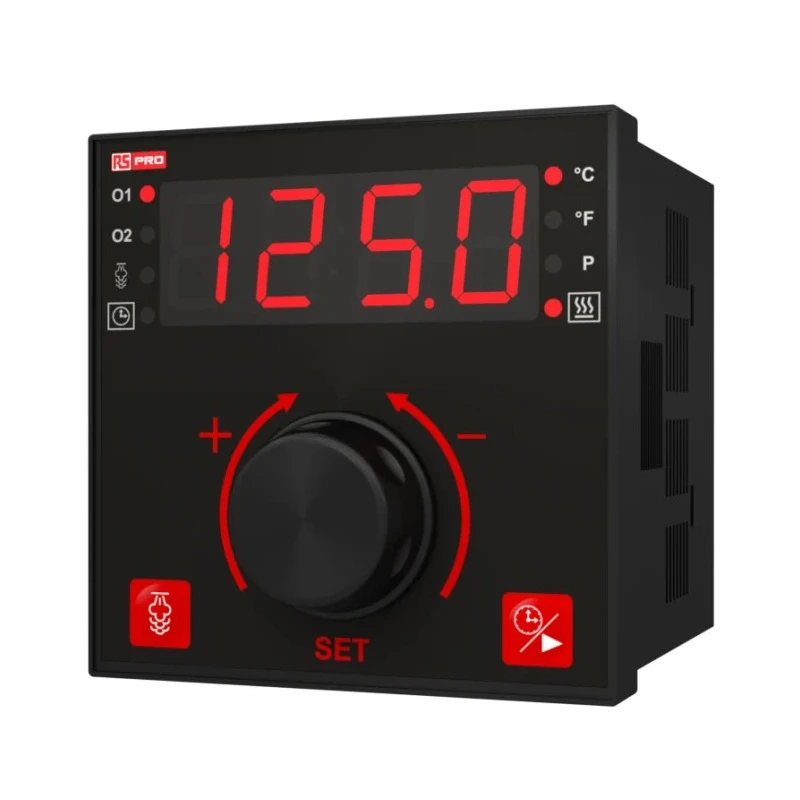

RS PRO Panel Mount On-Off Temperature Controller 3 Input 3 Output SSR Relay 240V 222-8157

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel Mount On-Off Temperature Controller 3 Input 3 Output SSR Relay 240V 222-8157

Name: RS PRO Panel Mount On-Off Temperature Controller 3 Input 3 Output SSR Relay 240V 222-8157
Brand: RS PRO
SKU: 171262



Category Temperature Controllers Brand RS PRO Condition New

Specifications

Country of Origin	Turkey
Display Type	LED
Brand	RS PRO
Operating Temperature	0 °C to +50 °C
Dimensions	96 mm x 96 mm
Humidity	90 % max. (None condensing)
Length	96mm
Model	222-8157
IP Rating	IP20, IP65
Width	96mm
Mount Type	Panel Mount
Protection Class	IP65 at front, IP20 at rear
Number of inputs	3
Output type	SSR, Relay
Series	RS PRO
Input Type	Thermocouple, RTD
Maximum Operating Temperature	50°C
Control Type	Temperature Control
Minimum Operating Temperature	0°C
Maximum Current	5A
Number of outputs	3
Supply Voltage	100 to 240V ac 50/60Hz
Standards/Approvals	CE
Maximum Supply Voltage	240V
Temperature Control Output	Relay (7A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)
Time Output	Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)
Steam Output	Relay (5A@250V at resistive load) or optional SSR Driver Output (Maximum 10mA, 17V)

Key Features

Features a 4-digit LED display for easy reading.
Supports thermocouple and RTD input types for versatile temperature sensing.
Includes programmable control types ON/OFF, P, PI, PD, and PID with auto-tune and self-tune capabilities.
Rated for operation between 0°C to 50°C with IP65 front protection.
Designed for panel mounting with dimensions of 96 mm by 96 mm.
Maximum supply voltage is 240V AC suitable for a wide range of industrial voltages.
Outputs include relay and SSR driver capable of 5A to 7A resistive loads.
Built-in buzzer provides audible warnings and status notifications.

Product Description

The RS PRO 222-8157 Panel Mount On-Off Temperature Controller is a robust and versatile digital temperature controller designed for industrial applications requiring accurate temperature regulation. Equipped with three input channels supporting thermocouple and RTD sensors, it provides reliable data to maintain process consistency.

Featuring a clear 4-digit LED display, operators can monitor temperature values precisely. The unit supports comprehensive control algorithms including ON/OFF, P, PI, PD, and PID modes. The advanced auto-tune and self-tune functions continually adapt the PID coefficients to optimize system performance, ensuring stability and minimal fluctuations.

Designed for panel mounting, it measures 96 mm by 96 mm and is built to withstand demanding environments with IP65 front protection and IP20 rear protection, suitable for industrial and laboratory settings. Operating temperature ranges from 0°C to 50°C with high humidity tolerance up to 90% non-condensing.

The controller’s outputs include a relay rated at 7A resistive load and SSR driver outputs for smooth switching with maximum ratings of 10mA at 17V. The time output and steam output are similarly configured for reliable process control. An internal buzzer provides voiced warnings for operational feedback.

4-digit LED display enhances visibility and ease of use. Supports J, K, R, and S type thermocouples and 2 or 3 wire PT 100 inputs. The IP65 front panel ensures durability in harsh industrial environments. Multiple control strategies facilitate precise temperature management.

Applications include bakery ovens, fermentation cabinets, ceramics and glass ovens, industrial fryers, and incubators. Adaptation via auto-tune and self-tune allows for dynamic performance optimization. Compact dimensions allow easy integration into control panels.

Complies with CE standards ensuring product safety and quality. Designed and manufactured in Turkey, ensuring international quality standards.

Choose the RS PRO 222-8157 controller for reliable, accurate, and programmable temperature control suited for diverse industrial, manufacturing, laboratory, and process applications. Explore more automation and control gear solutions from EnvMart for your industrial needs.
