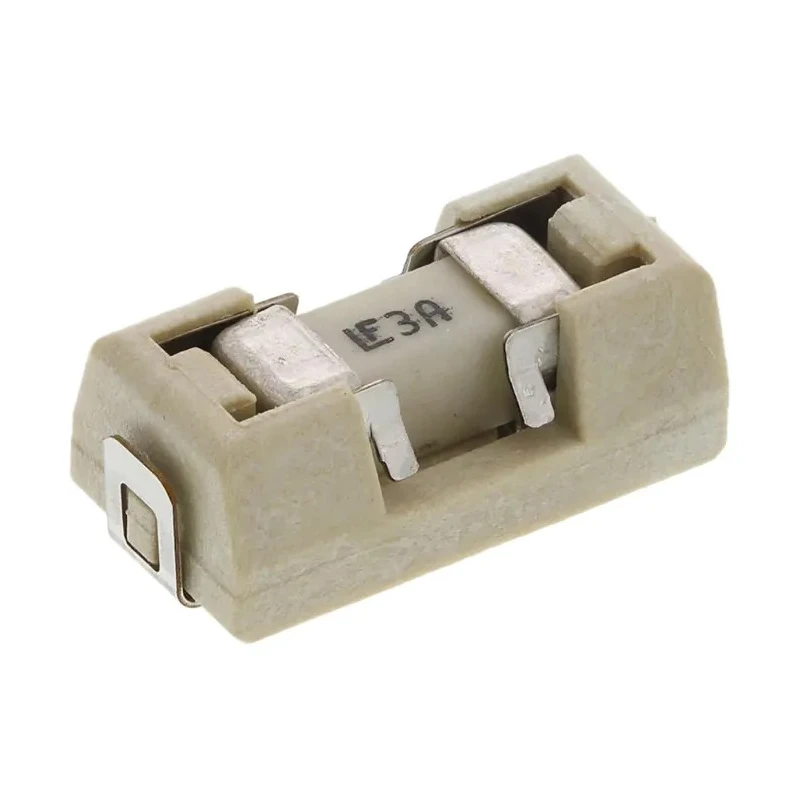

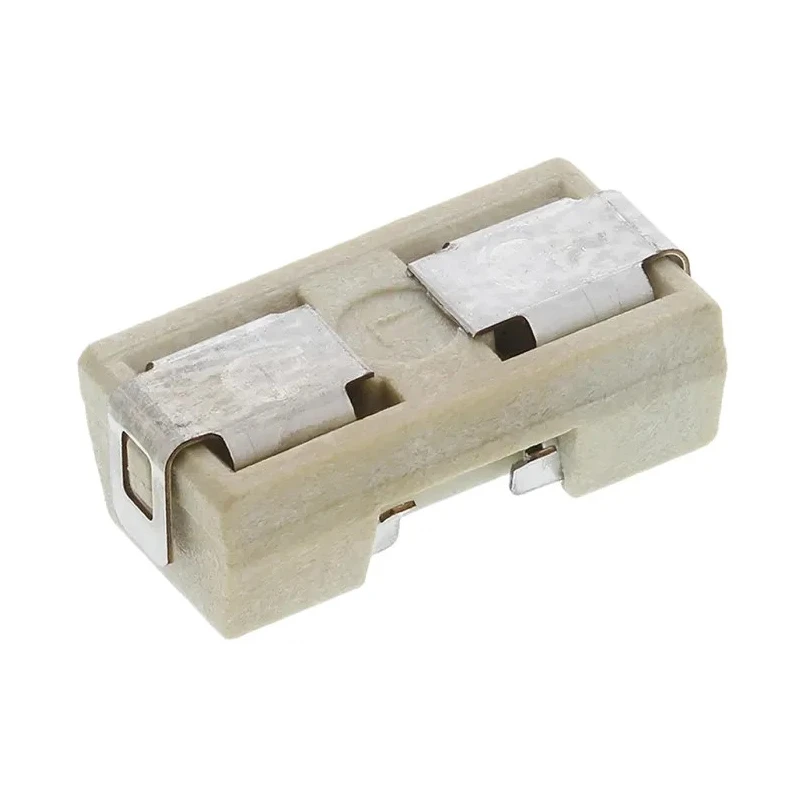

Littelfuse Non-Resettable Fuse 3A 125 V AC, 125 V DC Thermoplastic Body 154 Series 0154003.DR

Littelfuse 0154003.DR is a Non-Resettable Fuse designed for protection of electronic circuits with a 3A current rating and AC/DC voltage of 125 V. Housed in a compact thermoplastic body, this fuse ensures reliable and efficient circuit protection in industrial, commercial, and laboratory applications.

Featuring a time delay fuse characteristic, it allows temporary surges without unnecessary interruption, ideal for protecting high-value silicon IC components in alarm systems, audio/visual equipment, portable telephones, and medical apparatus.

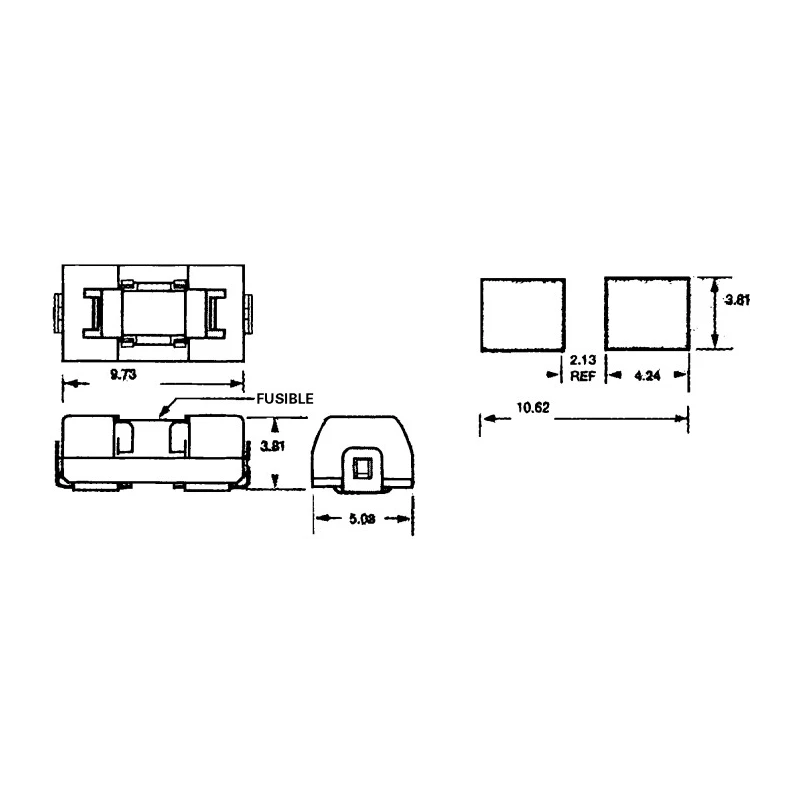

The fuse measures 5.03 mm in width, 3.81 mm in height, and 9.73 mm in depth, making it suitable for surface mount technology on PC boards. The terminal material of tin/lead plated beryllium copper alloy ensures excellent electrical conductivity and durability. The package type is a reel, facilitating easy integration into automated assembly processes, enhancing production efficiency.

With a breaking capacity of 50A and operating temperature range from -55°C to 125°C, this Littelfuse 154 Series fuse complies with international standards including RoHS, UL 94 V-0, and CSA certifications for safety and environmental compliance.

This fuse is engineered to withstand the demanding conditions of industrial automation, manufacturing equipment, HVAC systems, and water treatment plants. Its robust construction and proven reliability make it a preferred choice for circuit protection across many sectors.

The fuse has a time delay characteristic suitable for protecting sensitive components. Constructed with thermoplastic material, providing durable insulation. Compact dimensions: Width 5.03 mm, Height 3.81 mm, Depth 9.73 mm.

Breaking capacity rated at 50A for reliable circuit interruption. Package type is reel for efficient handling and installation. Terminal material is tin/lead plated beryllium copper alloy for excellent conductivity. Operating temperature range from -55°C to 125°C ensures performance in harsh environments.

Complies with RoHS, UL 94 V-0, and CSA standards. Suitable for protection of electronic devices such as computer boards, medical apparatus, and power supplies. Explore more high-quality fuses within the Electronics & Electricals category at EnvMart for reliable electrical circuit protection solutions.
