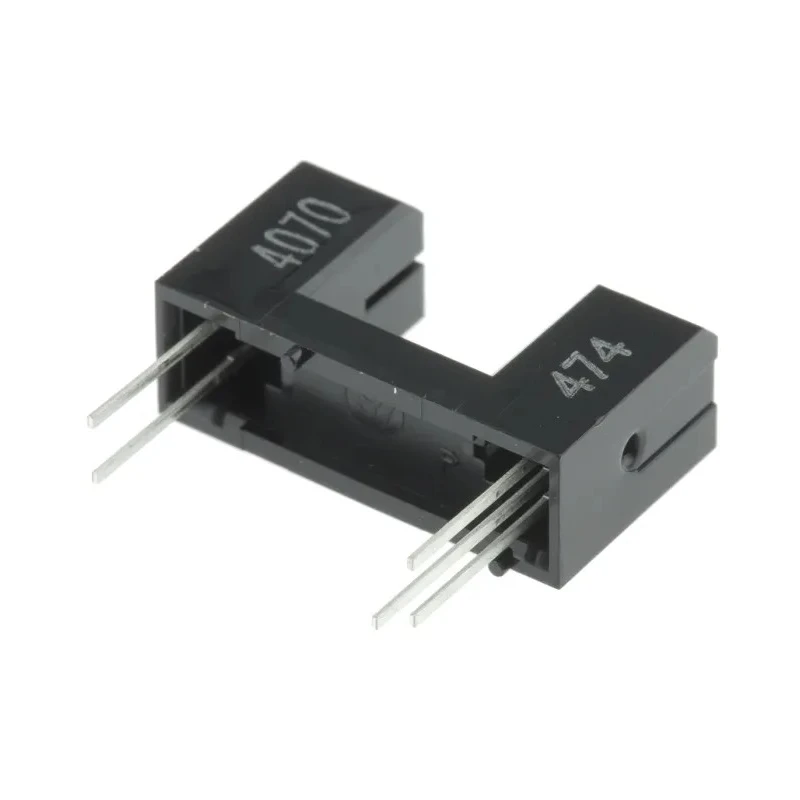

Omron Slotted Optical Switch Through Hole Mount Open Collector Output EE-SX4070
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 9.7mm |
| Length | 11mm |
| Model | EE-SX4070 |
| Width | 8mm |
| Mount Type | Through Hole |
| Series | EE-SX |
| Maximum Operating Temperature | 75°C |
| Package Type | Pin |
| Minimum Operating Temperature | -40°C |
| Slot Width | 0.5mm |
| Number Of Channels | 1 |
| Output Device | Open Collector |
| Standards/Approvals | RoHS Compliant |
| Number of Pins | 5 |
| Typical Rise Time | 3μs |
| Typical Fall Time | 20μs |
Key Features
- The switch features a through hole mount for secure PCB attachment.
- It has an open collector output device suitable for various circuit designs.
- Operates reliably in temperature ranges from -40°C to 75°C.

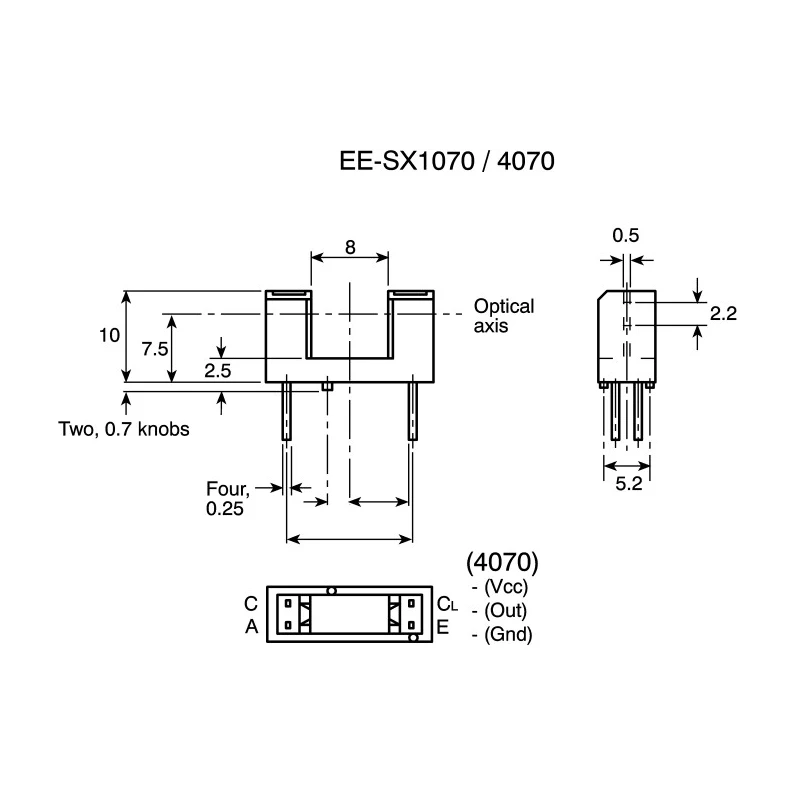

- Compact dimensions with an 11mm length, 8mm width, and 9.7mm height.
- Offers a fast response with 3μs typical rise time and 20μs typical fall time.
- Features a 0.5mm slot width for accurate object sensing.

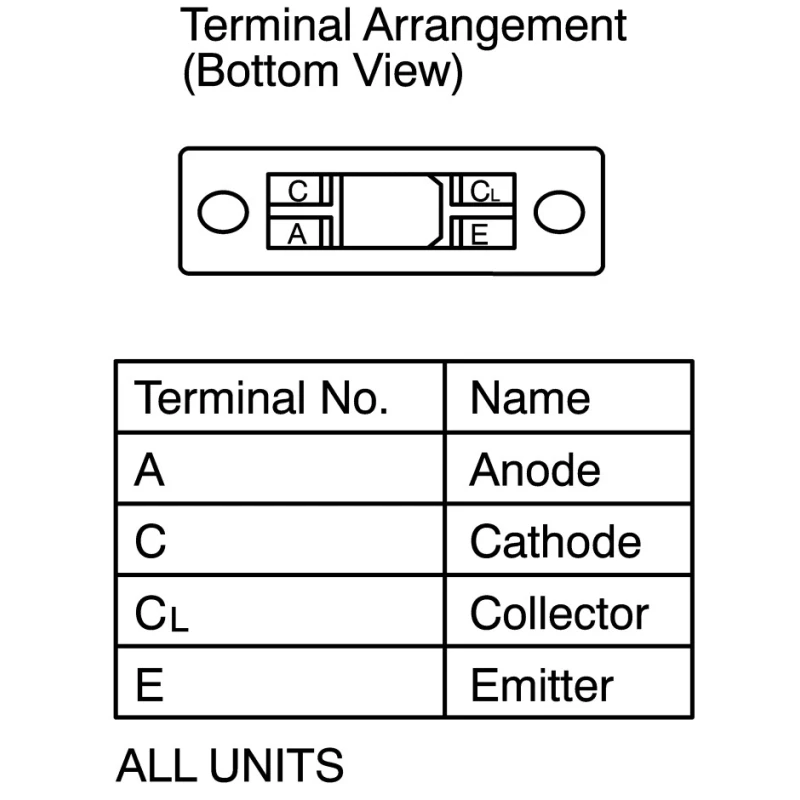

- The device includes 5 pins in a pin package type configuration.
- Compliant with RoHS standards ensuring environmental safety.
Product Description

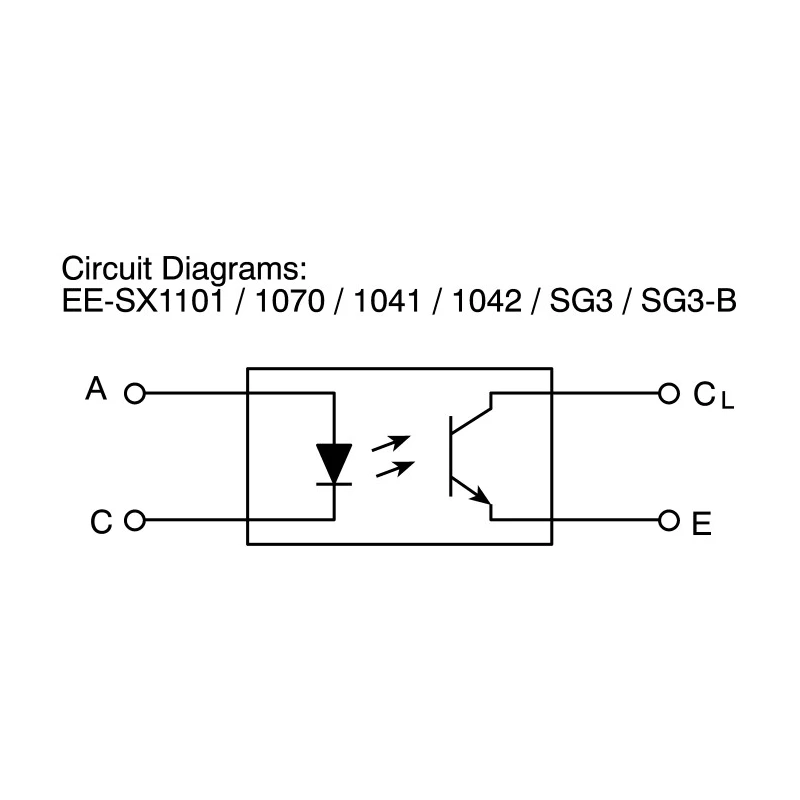

Omron EE-SX4070 is a slotted optical switch featuring a through hole mount and open collector output, designed for accurate detection of objects in various industrial and electronic automation systems. It integrates an infrared LED and phototransistor housed in a durable molded package ensuring reliable performance in challenging environments.
This optical switch operates within a wide temperature range from -40°C minimum to 75°C maximum, making it suitable for diverse applications including manufacturing processes, industrial automation, and electronic equipment control. Its compact size with 11mm length, 8mm width, and 9.7mm height facilitates easy PCB integration.
The device provides rapid switching performance with a 3μs typical rise time and 20μs typical fall time, enabling precise sensing and control. A slot width of 0.5mm allows it to detect small objects or gaps effectively. The 5-pin through hole mount design offers robust electrical connections and mechanical stability.

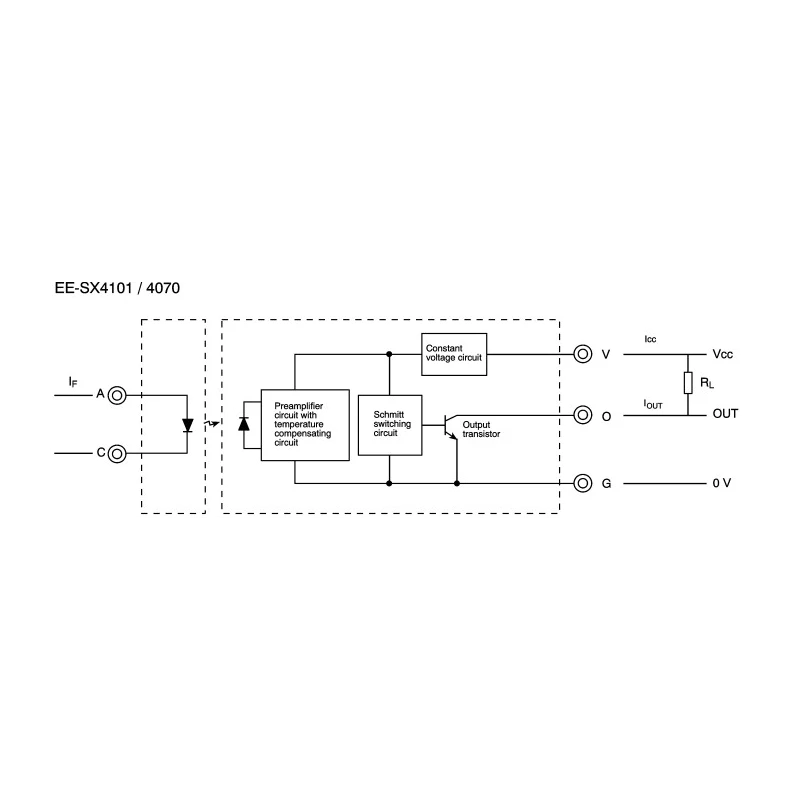

The switch employs an open collector output device for flexible interfacing with various circuits. It is RoHS compliant, ensuring environmentally friendly manufacturing and usage. Its EE-SX series credentials guarantee consistent, high sensitivity for industrial applications.
The switch is ideal for integration in automation machinery, optical encoders, and positioning systems. The compact form factor supports space-saving designs in electronic assemblies.
Omron’s EE-SX4070 Slotted Optical Switch is a dependable component tailored to deliver precise optical sensing in industrial, electronic, and automation environments. For a range of sensors and switch solutions, explore EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Omron EE-SX4070 operates reliably within a temperature range of -40°C to 75°C.
This model has compact dimensions of 11mm in length, 8mm in width, and 9.7mm in height.
It features an open collector output device, suitable for various circuit designs.
The typical rise time is 3μs and the typical fall time is 20μs, allowing for rapid switching performance.
The switch has a slot width of 0.5mm, enabling it to detect small objects or gaps effectively.
This model is designed with 5 pins in a pin package type configuration for robust electrical connections.
Yes, it is RoHS compliant, ensuring environmentally friendly manufacturing and usage.
The switch features a through hole mount for secure PCB attachment.
It is suitable for applications in manufacturing processes, industrial automation, and electronic equipment control.
This optical switch is part of the EE-SX series, known for its high sensitivity in industrial applications.
The Omron EE-SX4070 is manufactured in India.
Its compact form factor supports space-saving designs, making it easy to integrate into various electronic assemblies.
