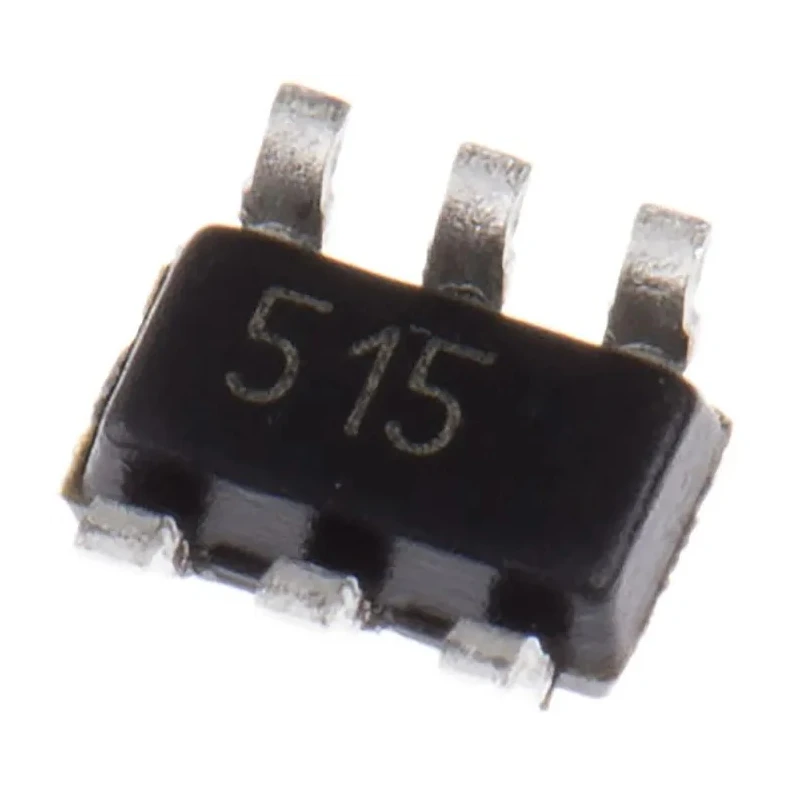

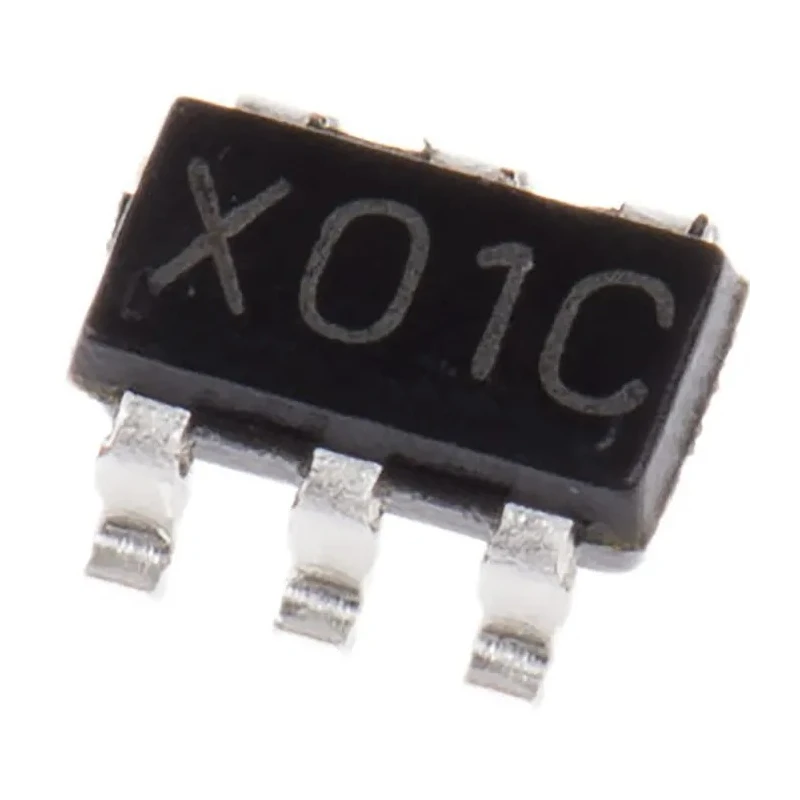

Texas Instruments Buck Converter Surface Mount 7V Output Voltage 2A Output Current TPS562208DDCT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / Switching Regulators Texas Instruments Buck Converter, Surface, 7V |
| Brand | Texas Instruments |
| Power | 45W |
| Efficiency | 96% |
| Length | 3.05mm |
| Model | TPS562208DDCT |
| Depth | 1.3mm |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TPS562208 |
| Output Current | 2A |
| Package Type | SOT |
| Minimum Operating Temperature | 125°C |
| Number of outputs | 1 |
| Ripple and Noise | 1% |
| Maximum Input Voltage | 17V |
| Line Regulation | 0.04 %/V |
| Standards/Approvals | JEDEC, ANSI, RoHS, ESDA, REACH |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 7V |
| Output Voltage 2 | 12.6V |
Key Features
- High efficiency of 96 percent for energy savings.
- Handles output power up to 45 watts.
- Ripple and noise limited to 1 percent for stable power supply.
- Wide input voltage range from 4.5V to 17V maximizes flexibility.
- Compact SOT package with 6 pins enables easy PCB integration.
- Operating temperature rated at 125 degrees Celsius for reliability in harsh conditions.
- Line regulation of 0.04 percent per volt maintains consistent output voltage.
- Complies with JEDEC, ANSI, RoHS, ESDA, and REACH standards.
Product Description
Texas Instruments TPS562208DDCT is a highly integrated buck (step-down) DC/DC converter designed for surface mount applications. It provides a regulated 7V output voltage with a maximum output current of 2 amps and supports output power of up to 45 watts. This switching regulator features excellent efficiency of 96%, which helps reduce energy consumption and heat generation.
The device operates reliably over a wide input voltage range from 4.5 volts minimum up to 17 volts maximum, making it suitable for automotive, industrial, and general power management applications. It comes in a small SOT package with 6 pins and compact dimensions of 3.05 mm length, 1.75 mm width, and 1.3 mm depth, facilitating space-saving PCB layouts.
The ripple and noise are limited to 1%, ensuring stable and clean output voltage for sensitive electronics. It also features a line regulation of 0.04% per volt to maintain consistent output despite input voltage variations. The converter is rated for operation up to 125 degrees Celsius, assuring durability under demanding environmental conditions.
This part is certified compliant with JEDEC, ANSI, RoHS, ESDA, and REACH standards, assuring quality and environmental considerations.
The surface mount design allows easy insertion in modern automated assembly processes. Typical use cases include industrial equipment, telecommunications, computing hardware, and automotive electronic systems requiring a compact, efficient voltage regulator.
High efficiency of 96 percent for energy savings. Handles output power up to 45 watts. Ripple and noise limited to 1 percent for stable power supply. Wide input voltage range from 4.5V to 17V maximizes flexibility. Compact SOT package with 6 pins enables easy PCB integration.
Operating temperature rated at 125 degrees Celsius for reliability in harsh conditions. Line regulation of 0.04 percent per volt maintains consistent output voltage. Complies with JEDEC, ANSI, RoHS, ESDA, and REACH standards.
Explore more power management ICs and converters in the Electronics & Electricals category at EnvMart for all your industrial and electronic design needs.
Explore more products in our Voltage Converters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 7V.
The maximum output current for this unit is 2 amps.
It has an efficiency rating of 96%, which helps in reducing energy consumption.
The maximum input voltage is 17V, allowing for flexibility in various applications.
The minimum input voltage required is 4.5V.
The dimensions of the SOT package are 3.05 mm in length, 1.75 mm in width, and 1.3 mm in depth.
Ripple and noise are limited to 1%, ensuring stable output voltage.
The line regulation is 0.04% per volt, which helps maintain consistent output voltage despite variations in input voltage.
This model complies with JEDEC, ANSI, RoHS, ESDA, and REACH standards.
The TPS562208DDCT features a compact design with 6 pins.
It is suitable for automotive, industrial, and general power management applications.
